TM4C1294NCPDTI3R

TM4C1294NCPDTI3R Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. TQFP-128 package/case type is utilized by this product. This product's ARM Cortex M4F is an ARM Cortex M3. This product has a Data Bus Width of 32 bit. The Maximum Clock Frequency of this product is 120 MHz. The Program Memory Size of this product is 6 kB. The Data RAM Size of this product is 256 kB. The ADC Resolution of this product is 12 bit. 3.3 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 105 C. Reel packaging for easy dispensing The height of the product is 1.05 mm. 14 mm long MCU The Flash of this product is Flash. Texas Instruments is a trusted brand for quality electronics The SRAM. The Data ROM Size is 6 kB. EEPROM is the data ROM type. Interface Type: CAN, Ethernet, I2C, QSSI, UART, USB Yes regarding Moisture Sensitivity The product has 20 Channel ADC channels. ARM Microcontrollers - MCU product type 1000 of 100 Microcontrollers - MCU as subcategory Supply Voltage - Max: 3.63 V Supply Voltage - Min: 2.97 V 1. 0.017760 oz of Unit Weight

TM4C1294NCPDTI3R Image

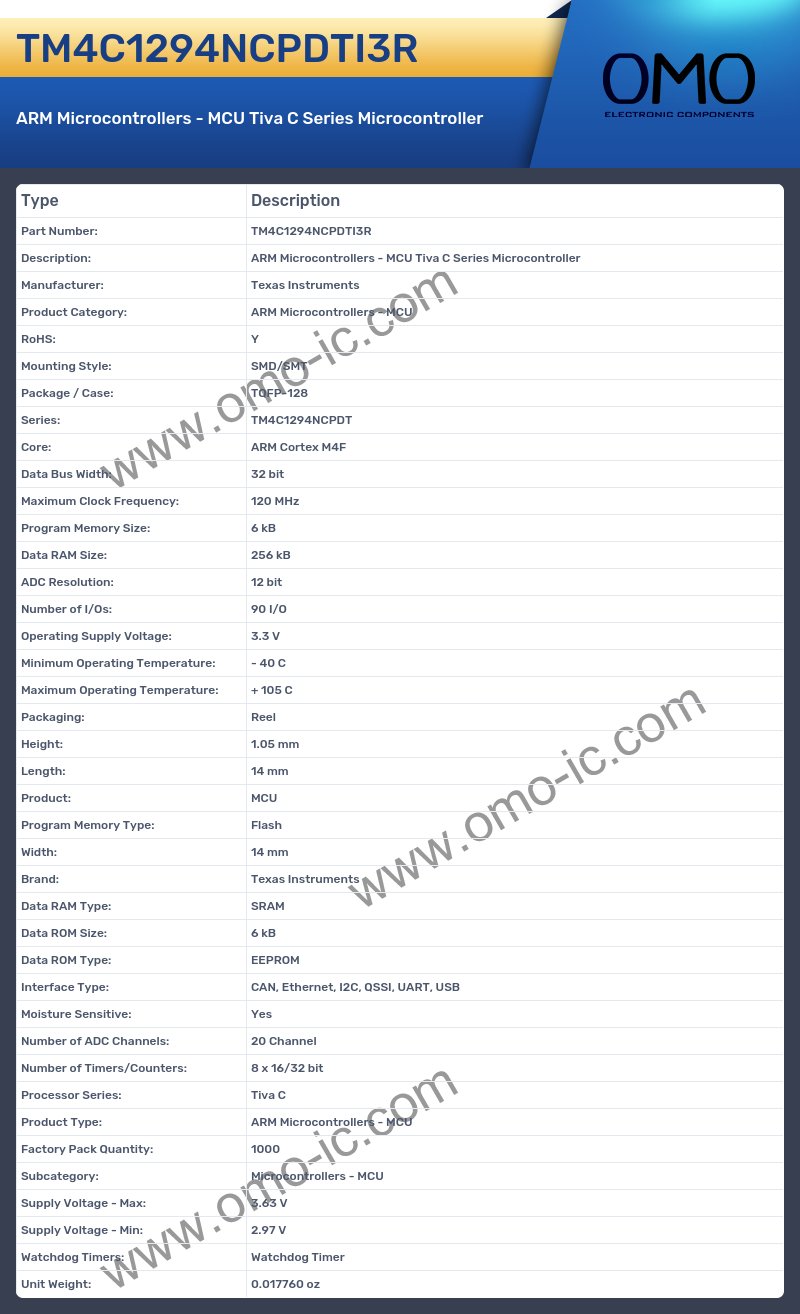

TM4C1294NCPDTI3R Specifications

• Manufacturer: Texas Instruments
• Product Category: ARM Microcontrollers - MCU
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: TQFP-128
• Series: TM4C1294NCPDT
• Core: ARM Cortex M4F
• Data Bus Width: 32 bit
• Maximum Clock Frequency: 120 MHz
• Program Memory Size: 6 kB
• Data RAM Size: 256 kB
• ADC Resolution: 12 bit
• Number of I/Os: 90 I/O
• Operating Supply Voltage: 3.3 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 105 C
• Packaging: Reel
• Height: 1.05 mm
• Length: 14 mm
• Product: MCU
• Program Memory Type: Flash
• Width: 14 mm
• Brand: Texas Instruments
• Data RAM Type: SRAM
• Data ROM Size: 6 kB
• Data ROM Type: EEPROM
• Interface Type: CAN, Ethernet, I2C, QSSI, UART, USB
• Moisture Sensitive: Yes
• Number of ADC Channels: 20 Channel
• Number of Timers/Counters: 8 x 16/32 bit
• Processor Series: Tiva C
• Product Type: ARM Microcontrollers - MCU
• Factory Pack Quantity: 1000
• Subcategory: Microcontrollers - MCU
• Supply Voltage - Max: 3.63 V
• Supply Voltage - Min: 2.97 V
• Watchdog Timers: Watchdog Timer
• Unit Weight: 0.017760 oz
