TSH114ID

TSH114ID Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. SO-14 package/case type is utilized by this product. Supply Voltage - Max: 12 V This product is equipped with 4 Channel for efficient performance. This product has a 58 dB of 50 dB, ensuring reliable signal acquisition. This product has an 14 uA of 5 uA for precise signal processing. Supply Voltage - Min: 5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. This product does not have a No Shutdown feature, ensuring continuous operation. Tube packaging for easy dispensing The amplifier type is Wideband Amplifier. The height of the product is 1.65 mm (Max). 8.75 mm (Max) long Operational Amplifiers Supply Type: Single, Dual STMicroelectronics is a trusted brand for quality electronics The 8.6 pA/sqrt Hz is 0.7 pA/rtHz. 1. The maximum dual supply voltage is +/- 6 V. +/- 2.5 V minimum dual supply voltage 5 V to 12 V, +/- 2.5 V to +/- 6 V operating supply voltage range Op Amps - Operational Amplifiers product type This product has a 49 dB of 50 dB, providing reliable power supply noise rejection. 50 of 100 Amplifier ICs as subcategory 1. 0.009143 oz of Unit Weight

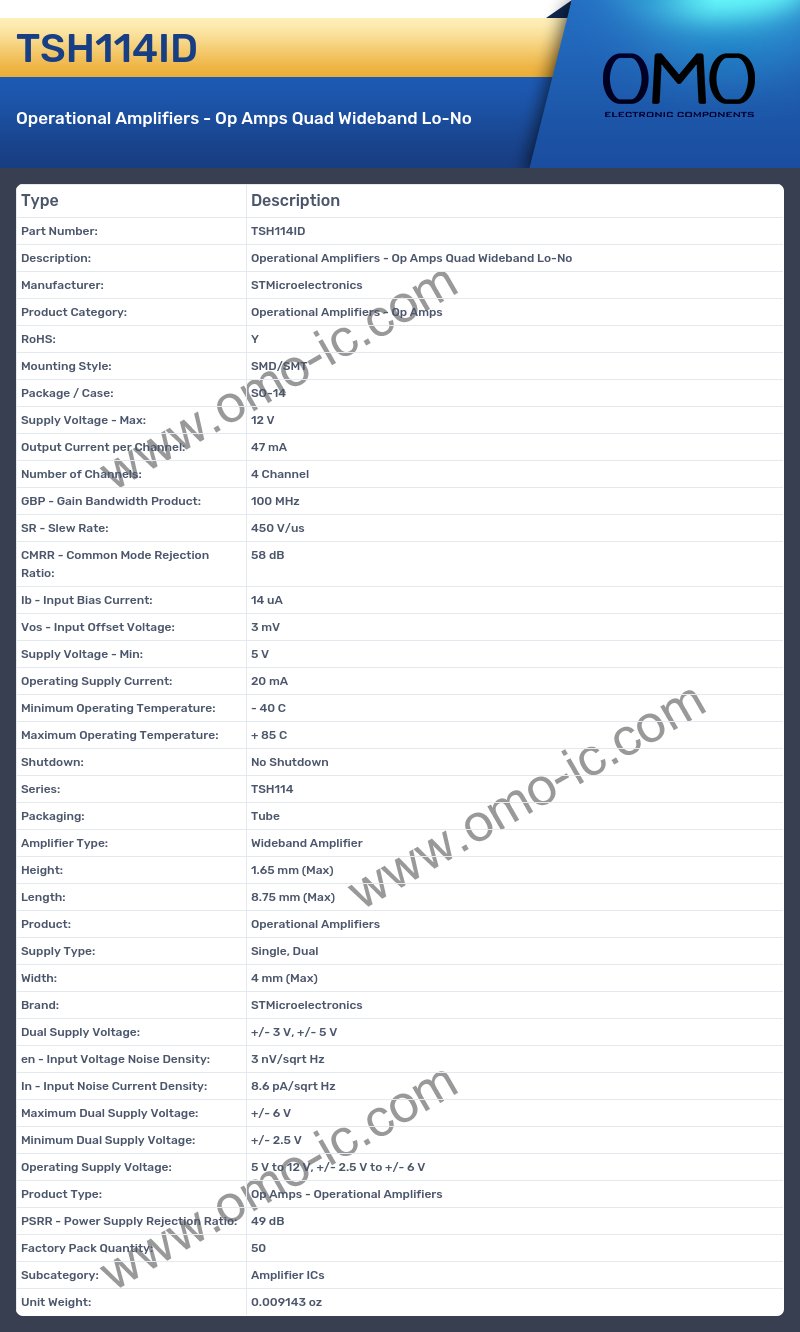

TSH114ID Image

TSH114ID Specifications

• Manufacturer: STMicroelectronics
• Product Category: Operational Amplifiers - Op Amps
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SO-14
• Supply Voltage - Max: 12 V
• Output Current per Channel: 47 mA
• Number of Channels: 4 Channel
• GBP - Gain Bandwidth Product: 100 MHz
• SR - Slew Rate: 450 V/us
• CMRR - Common Mode Rejection Ratio: 58 dB
• Ib - Input Bias Current: 14 uA
• Vos - Input Offset Voltage: 3 mV
• Supply Voltage - Min: 5 V
• Operating Supply Current: 20 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Shutdown: No Shutdown
• Series: TSH114
• Packaging: Tube
• Amplifier Type: Wideband Amplifier
• Height: 1.65 mm (Max)
• Length: 8.75 mm (Max)
• Product: Operational Amplifiers
• Supply Type: Single, Dual
• Width: 4 mm (Max)
• Brand: STMicroelectronics
• Dual Supply Voltage: +/- 3 V, +/- 5 V
• en - Input Voltage Noise Density: 3 nV/sqrt Hz
• In - Input Noise Current Density: 8.6 pA/sqrt Hz
• Maximum Dual Supply Voltage: +/- 6 V
• Minimum Dual Supply Voltage: +/- 2.5 V
• Operating Supply Voltage: 5 V to 12 V, +/- 2.5 V to +/- 6 V
• Product Type: Op Amps - Operational Amplifiers
• PSRR - Power Supply Rejection Ratio: 49 dB
• Factory Pack Quantity: 50
• Subcategory: Amplifier ICs
• Unit Weight: 0.009143 oz
