UCC3580D-2

UCC3580D-2 Overview

This product is manufactured by Texas Instruments. Boost, Buck, Flyback, Forward Topology 2 Output is the number of outputs provided by this product. 430 kHz is 60 kHz. Output current: 1.2 A The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. SOP-16 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 1.58 mm. 9.9 mm long This device belongs to the Voltage Mode PWM Controllers type. Texas Instruments is a trusted brand for quality electronics 20 ns fall time Switching Controllers product type Rise Time is 40 ns. 40 of 100 PMIC - Power Management ICs as subcategory 1. 0.004998 oz of Unit Weight

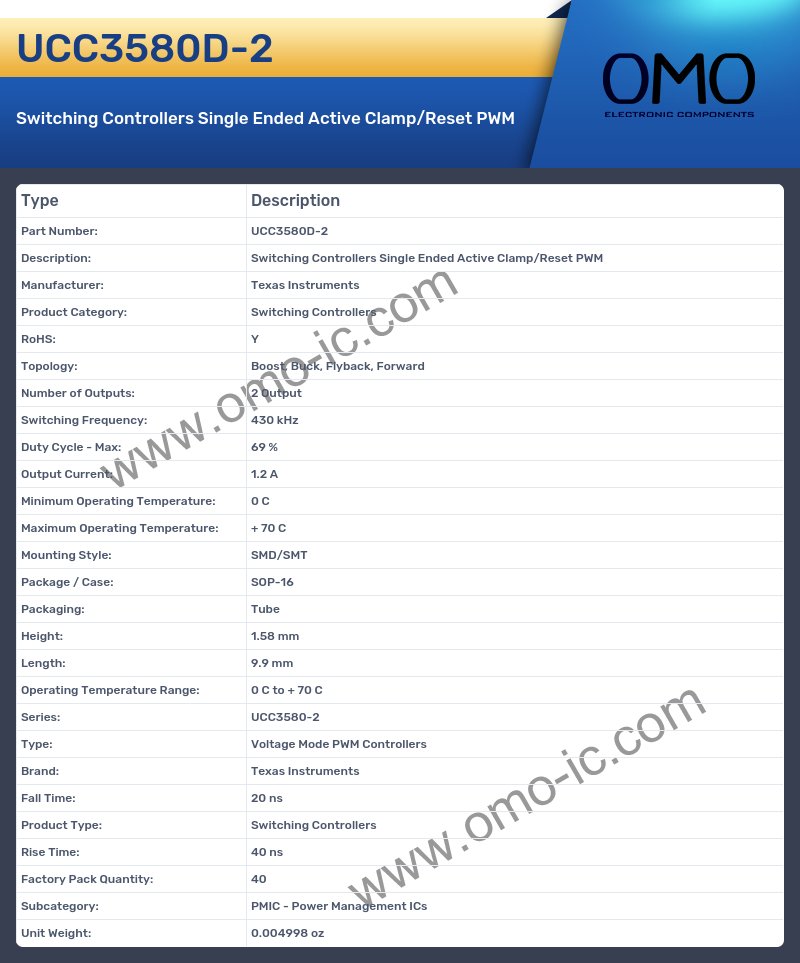

UCC3580D-2 Image

UCC3580D-2 Specifications

• Manufacturer: Texas Instruments
• Product Category: Switching Controllers
• RoHS: Y
• Topology: Boost, Buck, Flyback, Forward
• Number of Outputs: 2 Output
• Switching Frequency: 430 kHz
• Duty Cycle - Max: 69 %
• Output Current: 1.2 A
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: SMD/SMT
• Package / Case: SOP-16
• Packaging: Tube
• Height: 1.58 mm
• Length: 9.9 mm
• Operating Temperature Range: 0 C to + 70 C
• Series: UCC3580-2
• Type: Voltage Mode PWM Controllers
• Brand: Texas Instruments
• Fall Time: 20 ns
• Product Type: Switching Controllers
• Rise Time: 40 ns
• Factory Pack Quantity: 40
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.004998 oz
