UCC37322P

UCC37322P Overview

This product is manufactured by Texas Instruments. This device belongs to the Low Side type. The product can operate at a maximum temperature of Through Hole. PDIP-8 package/case type is utilized by this product. 1 Output is the number of outputs provided by this product. Output current: 9 A Rise Time is 35 ns. 20 ns fall time Supply Voltage - Min: 4 V Supply Voltage - Max: 15 V 350 mW The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. Tube packaging for easy dispensing Texas Instruments is a trusted brand for quality electronics CMOS, TTL. 4 V to 15 V operating supply voltage range Gate Drivers product type 50 of 100 PMIC - Power Management ICs as subcategory 1. 0.015535 oz of Unit Weight

UCC37322P Image

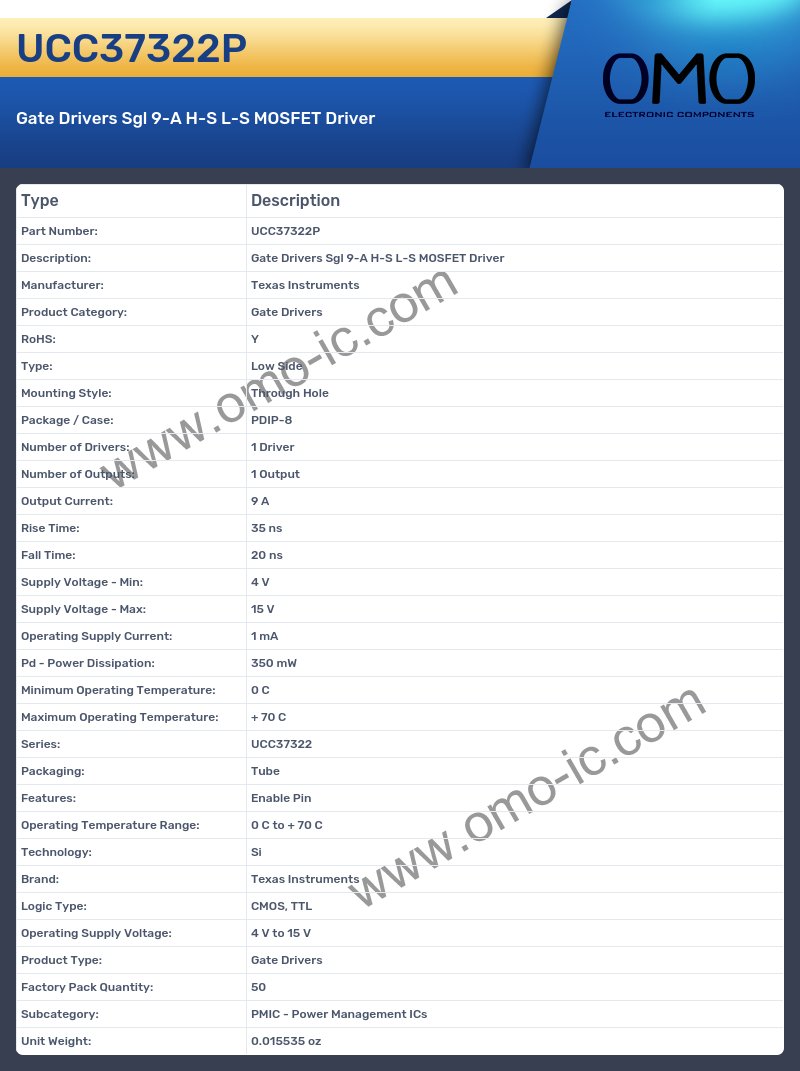

UCC37322P Specifications

• Manufacturer: Texas Instruments
• Product Category: Gate Drivers
• RoHS: Y
• Type: Low Side
• Mounting Style: Through Hole
• Package / Case: PDIP-8
• Number of Drivers: 1 Driver
• Number of Outputs: 1 Output
• Output Current: 9 A
• Rise Time: 35 ns
• Fall Time: 20 ns
• Supply Voltage - Min: 4 V
• Supply Voltage - Max: 15 V
• Operating Supply Current: 1 mA
• Pd - Power Dissipation: 350 mW
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Series: UCC37322
• Packaging: Tube
• Features: Enable Pin
• Operating Temperature Range: 0 C to + 70 C
• Technology: Si
• Brand: Texas Instruments
• Logic Type: CMOS, TTL
• Operating Supply Voltage: 4 V to 15 V
• Product Type: Gate Drivers
• Factory Pack Quantity: 50
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.015535 oz
