AD1671JP Overview

Product belongs to the AD1671 series. This product is categorized as Analog to Digital Converters Type: S/H ADC Tube is the packaging method for this product Weight of 0.041719 oz SMD/SMT Mounting-Style PLCC-28 The Single Ended for this product is CMOS/TTL. Operational temperature range: 0°C ~ 70°C Number of channels: 1 Channel Supplier device package: 28-PLCC (11.51x11.51) This product's 1.25M. Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is ±5V. The Voltage Supply Digital for this product is 5V. Configuration S/H-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 1 units Power-off control: 750 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C This product has a Power Consumption of 570 mW. Parallel interface type The 0.35 %FSR of this product is 0.2%. Number-of-Converters: 1 Converter 1.25 MS/s Sampling Rate Integral Nonlinearity: +/- 2.5 LSB

AD1671JP Image

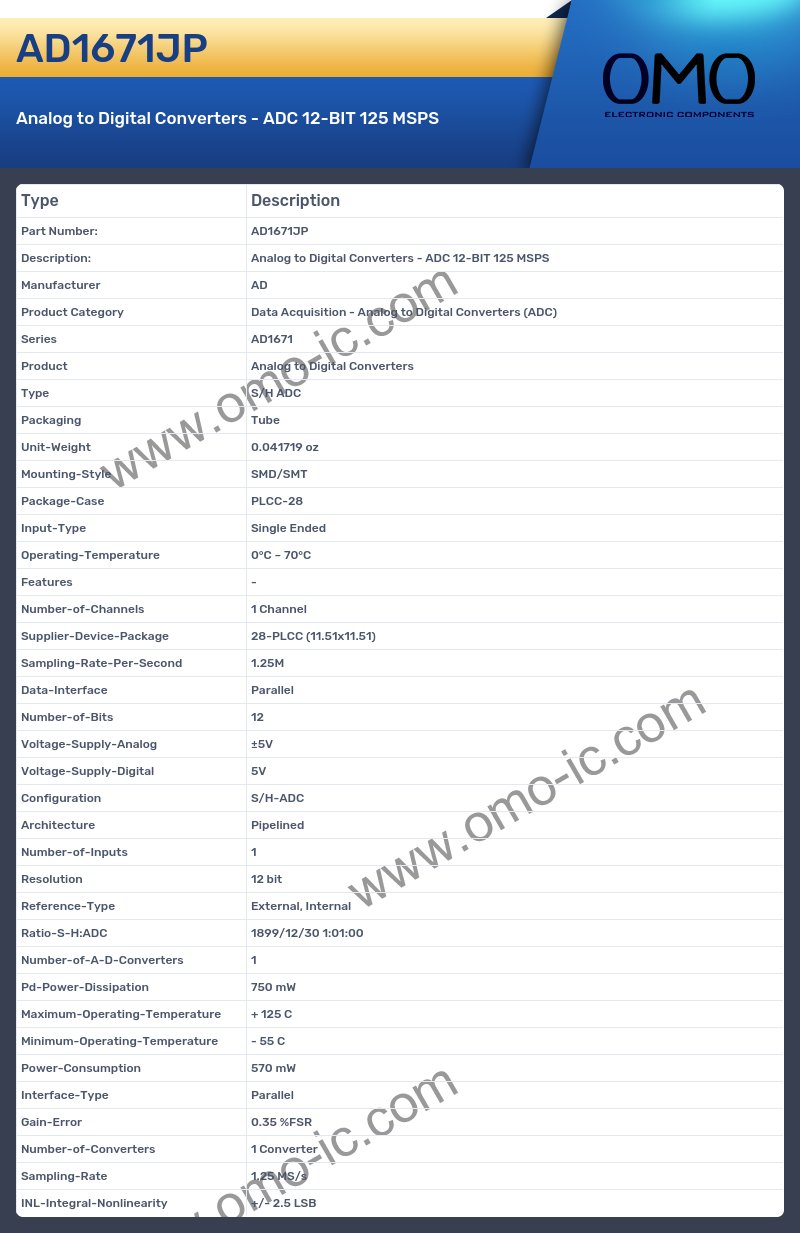

AD1671JP Specifications

• Manufacturer AD
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD1671
• Product Analog to Digital Converters
• Type S/H ADC
• Packaging Tube
• Unit-Weight 0.041719 oz
• Mounting-Style SMD/SMT
• Package-Case PLCC-28
• Input-Type Single Ended
• Operating-Temperature 0°C ~ 70°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 28-PLCC (11.51x11.51)
• Sampling-Rate-Per-Second 1.25M
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog ±5V
• Voltage-Supply-Digital 5V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 1
• Resolution 12 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 750 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Power-Consumption 570 mW
• Interface-Type Parallel
• Gain-Error 0.35 %FSR
• Number-of-Converters 1 Converter
• Sampling-Rate 1.25 MS/s
• INL-Integral-Nonlinearity +/- 2.5 LSB
