AD22100AR-REEL7

AD22100AR-REEL7 Overview

Product belongs to the AD22100 series. This product is categorized as Signal Conditioner Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -50°C ~ 150°C Output-Type: Analog Voltage Voltage Supply Range: 4 V ~ 6.5 V Supplier device package: 8-SOIC Analog, Local The device offers a + 22.5 mV / C of 26dB. Operating temperature: 25°C (-40°C) Operating temperature: -40°C ~ 85°C Temperature accuracy: ±2°C (±3.7°C) Maximum operating temperature of + 100 C Minimum operating temperature: 0 C 500 uA is 92 nA. - interface type Maximum supply voltage of 6.5 VDC Minimum supply voltage is 4 VDC

AD22100AR-REEL7 Image

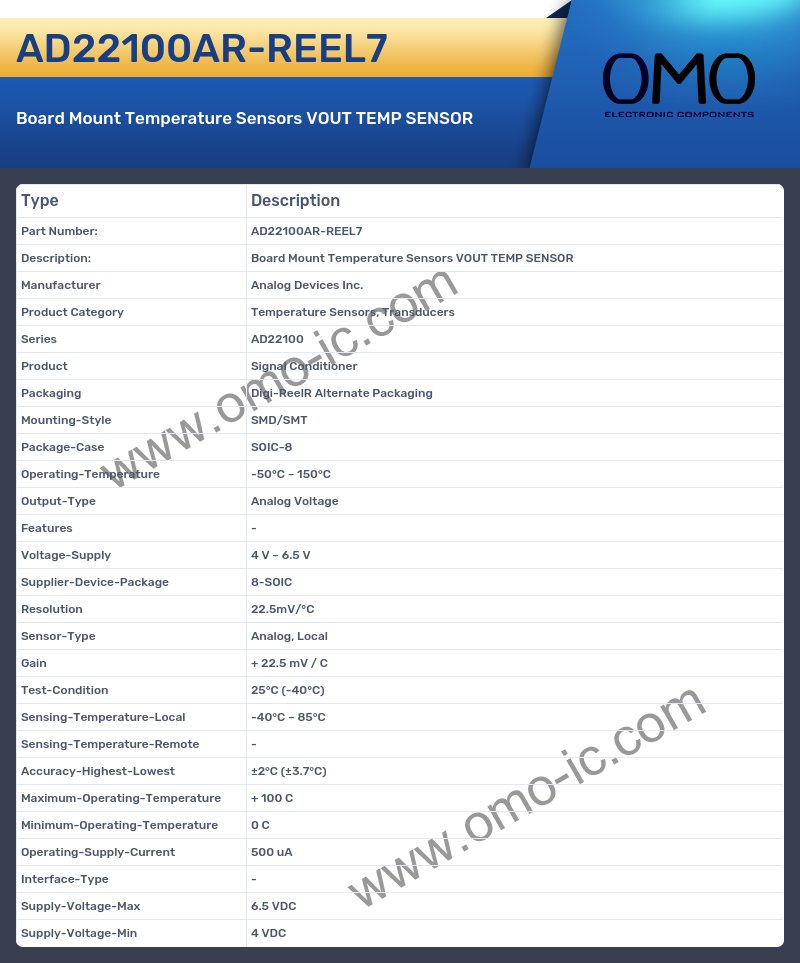

AD22100AR-REEL7 Specifications

• Manufacturer Analog Devices Inc.
• Product Category Temperature Sensors, Transducers
• Series AD22100
• Product Signal Conditioner
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -50°C ~ 150°C
• Output-Type Analog Voltage
• Features -
• Voltage-Supply 4 V ~ 6.5 V
• Supplier-Device-Package 8-SOIC
• Resolution 22.5mV/°C
• Sensor-Type Analog, Local
• Gain + 22.5 mV / C
• Test-Condition 25°C (-40°C)
• Sensing-Temperature-Local -40°C ~ 85°C
• Sensing-Temperature-Remote -
• Accuracy-Highest-Lowest ±2°C (±3.7°C)
• Maximum-Operating-Temperature + 100 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 500 uA
• Interface-Type -
• Supply-Voltage-Max 6.5 VDC
• Supply-Voltage-Min 4 VDC
