AD2702LD

AD2702LD Overview

Product belongs to the AD2702 series. Tube is the packaging method for this product Through Hole Mounting-Style CDIP-14 SB Operational temperature range: -25°C ~ 85°C (TA) Through Hole mounting type Output-Type: Fixed Supplier device package: 14-CDIP Tolerance of ±0.03% 13 V ~ 18 V voltage input This product has a 17mA of 200μA. Series is the reference type. Minimum fixed output voltage is ±10V . 5ppm/°C is 30 parts per million per degree Celsius. 50μmA of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 85 C Minimum operating temperature: - 25 C Output voltage: 10 V Input Voltage Range: 20 V Initial accuracy: 2.5 mV Maximum shunt current of 10 mA

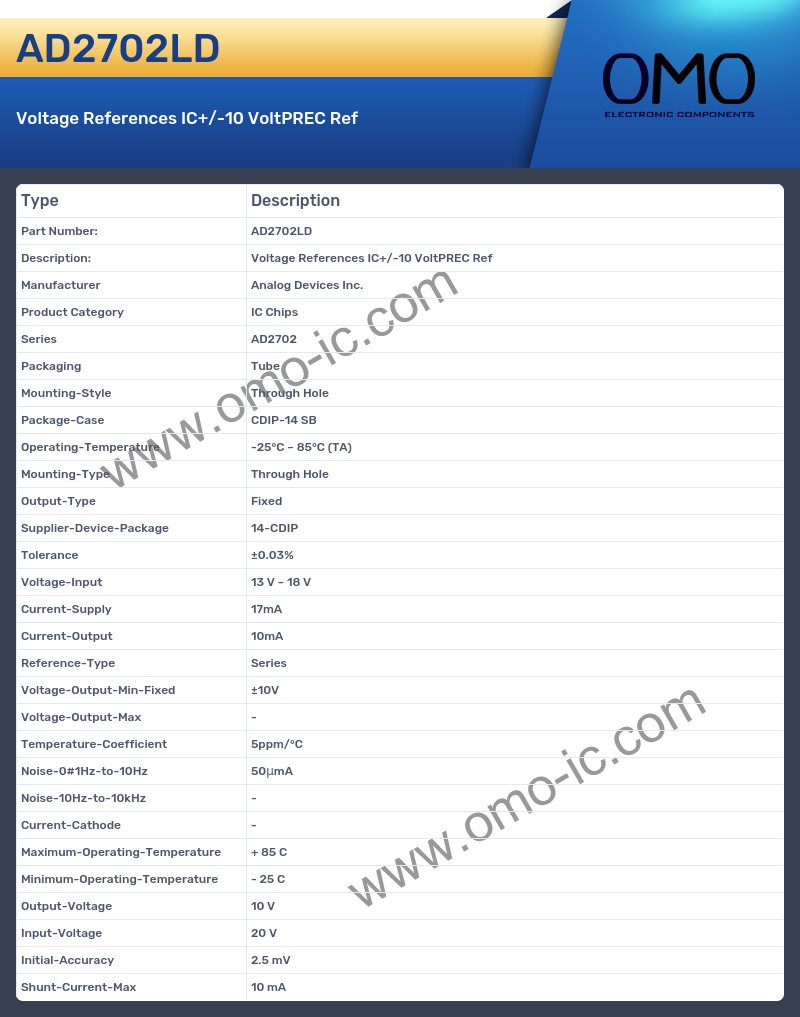

AD2702LD Image

AD2702LD Specifications

• Manufacturer Analog Devices Inc.
• Product Category IC Chips
• Series AD2702
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case CDIP-14 SB
• Operating-Temperature -25°C ~ 85°C (TA)
• Mounting-Type Through Hole
• Output-Type Fixed
• Supplier-Device-Package 14-CDIP
• Tolerance ±0.03%
• Voltage-Input 13 V ~ 18 V
• Current-Supply 17mA
• Current-Output 10mA
• Reference-Type Series
• Voltage-Output-Min-Fixed ±10V
• Voltage-Output-Max -
• Temperature-Coefficient 5ppm/°C
• Noise-0#1Hz-to-10Hz 50μmA
• Noise-10Hz-to-10kHz -
• Current-Cathode -
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 25 C
• Output-Voltage 10 V
• Input-Voltage 20 V
• Initial-Accuracy 2.5 mV
• Shunt-Current-Max 10 mA
