AD5734AREZ

AD5734AREZ Overview

Product belongs to the iCMOSR series. This product is categorized as Digital to Analog Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.007478 oz SMD/SMT Mounting-Style TSSOP-24 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Number of channels: 4 Channel Supplier device package: 24-TSSOP-EP Data-Interface: SPI, DSP 14 bits The Voltage-Supply-Analog is ±4.5 V ~ 16.5 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.5 V. The architecture of this product is String DAC . External is the reference type. Number of D-A converters: 4 The 12μs is an impressive 15 us. No Differential-Output Power-off control: 310 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial SPI interface type Maximum supply voltage of 5.5 V Minimum supply voltage is 2.7 V Number-of-Converters: 4 Converter 100 kS/s Sampling Rate

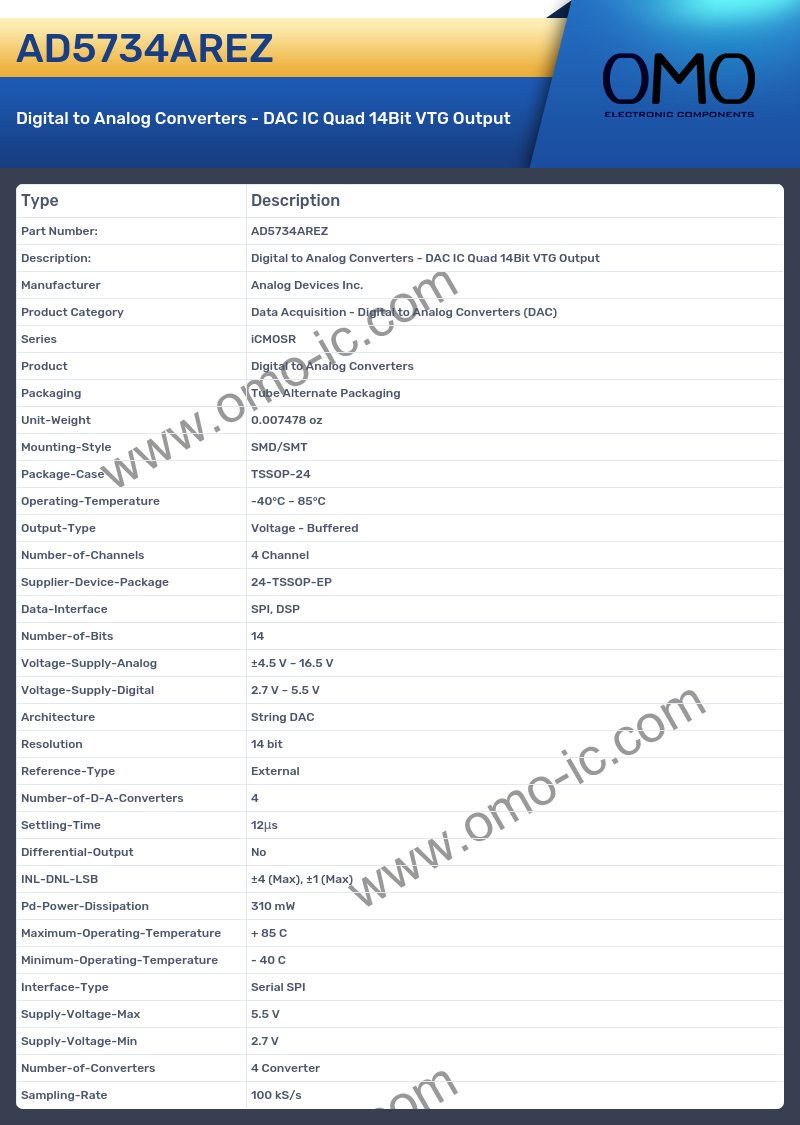

AD5734AREZ Image

AD5734AREZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series iCMOSR
• Product Digital to Analog Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.007478 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-24
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Number-of-Channels 4 Channel
• Supplier-Device-Package 24-TSSOP-EP
• Data-Interface SPI, DSP
• Number-of-Bits 14
• Voltage-Supply-Analog ±4.5 V ~ 16.5 V
• Voltage-Supply-Digital 2.7 V ~ 5.5 V
• Architecture String DAC
• Resolution 14 bit
• Reference-Type External
• Number-of-D-A-Converters 4
• Settling-Time 12μs
• Differential-Output No
• INL-DNL-LSB ±4 (Max), ±1 (Max)
• Pd-Power-Dissipation 310 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial SPI
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.7 V
• Number-of-Converters 4 Converter
• Sampling-Rate 100 kS/s
