AD669AN

AD669AN Overview

Product belongs to the DACPORTR series. This product is categorized as Digital to Analog Converters Tube is the packaging method for this product Weight of 0.147798 oz Through Hole Mounting-Style PDIP-28 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Number of channels: 1 Channel Supplier device package: 28-PDIP Data-Interface: Parallel 16 bits The Voltage-Supply-Analog is ±13.5 V ~ 16.5 V. The Voltage Supply Digital for this product is 5V. The architecture of this product is R-2R . External, Internal is the reference type. Number of D-A converters: 1 The 13μs is an impressive 15 us. No Differential-Output Power-off control: 625 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Parallel interface type Signal-to-Noise Ratio of 83 dB Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V Number-of-Converters: 1 Converter 167 kS/s Sampling Rate

AD669AN Image

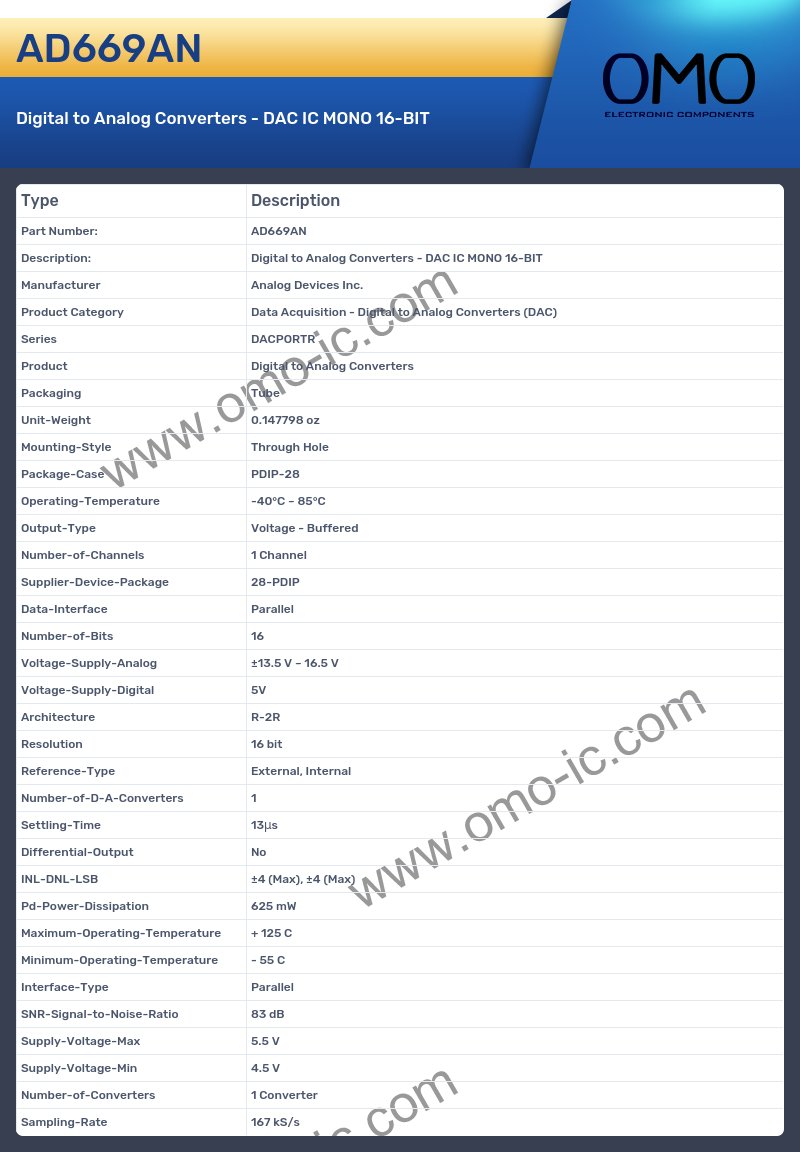

AD669AN Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DACPORTR
• Product Digital to Analog Converters
• Packaging Tube
• Unit-Weight 0.147798 oz
• Mounting-Style Through Hole
• Package-Case PDIP-28
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package 28-PDIP
• Data-Interface Parallel
• Number-of-Bits 16
• Voltage-Supply-Analog ±13.5 V ~ 16.5 V
• Voltage-Supply-Digital 5V
• Architecture R-2R
• Resolution 16 bit
• Reference-Type External, Internal
• Number-of-D-A-Converters 1
• Settling-Time 13μs
• Differential-Output No
• INL-DNL-LSB ±4 (Max), ±4 (Max)
• Pd-Power-Dissipation 625 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 83 dB
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Number-of-Converters 1 Converter
• Sampling-Rate 167 kS/s
