AD7224LP

AD7224LP Overview

Product belongs to the AD7224 series. This product is categorized as Digital to Analog Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.025468 oz SMD/SMT Mounting-Style PLCC-20 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Number of channels: 1 Channel Supplier device package: 20-PLCC (9x9) Data-Interface: Parallel 8 bits The Voltage-Supply-Analog is 11.4 V ~ 16.5 V, -5V. The Voltage Supply Digital for this product is 14.25 V ~ 15.75 V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 1 The 7μs, 20μs is an impressive 15 us. No Differential-Output Power-off control: 75 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Parallel interface type Maximum supply voltage of 16.5 V Minimum supply voltage is 11.4 V Number-of-Converters: 1 Converter 143 kS/s Sampling Rate

AD7224LP Image

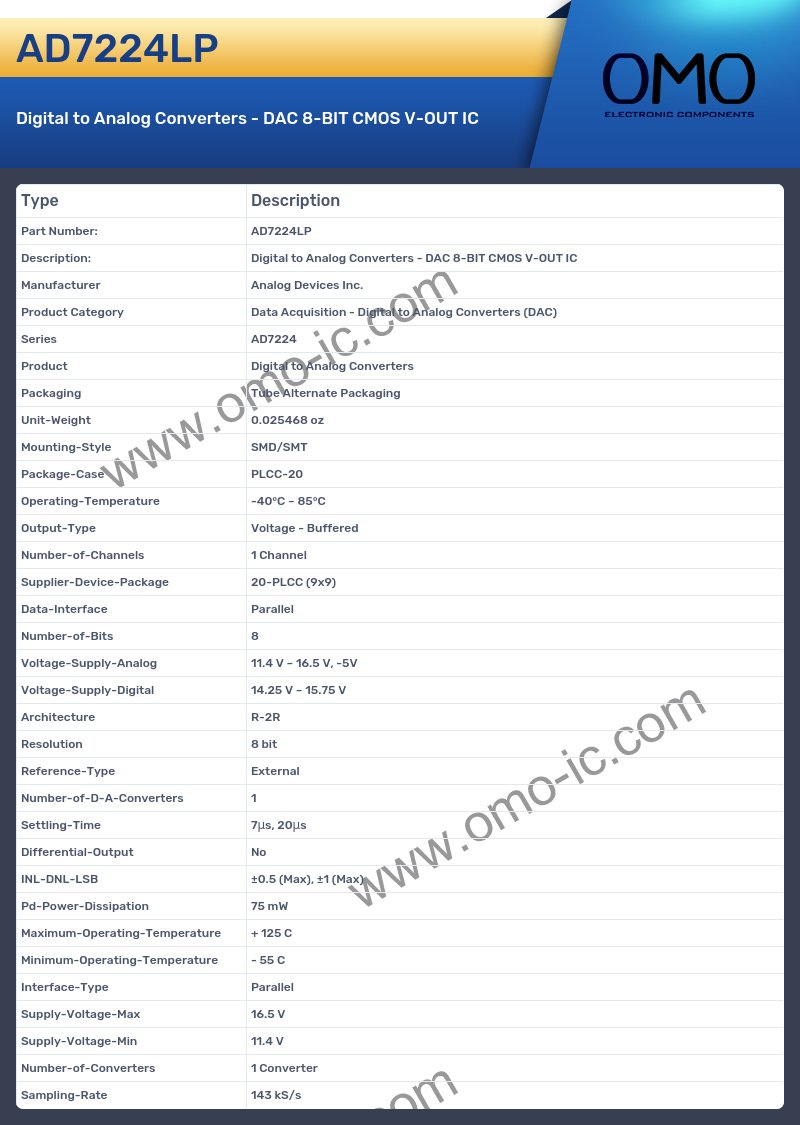

AD7224LP Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series AD7224
• Product Digital to Analog Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.025468 oz
• Mounting-Style SMD/SMT
• Package-Case PLCC-20
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package 20-PLCC (9x9)
• Data-Interface Parallel
• Number-of-Bits 8
• Voltage-Supply-Analog 11.4 V ~ 16.5 V, -5V
• Voltage-Supply-Digital 14.25 V ~ 15.75 V
• Architecture R-2R
• Resolution 8 bit
• Reference-Type External
• Number-of-D-A-Converters 1
• Settling-Time 7μs, 20μs
• Differential-Output No
• INL-DNL-LSB ±0.5 (Max), ±1 (Max)
• Pd-Power-Dissipation 75 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Interface-Type Parallel
• Supply-Voltage-Max 16.5 V
• Supply-Voltage-Min 11.4 V
• Number-of-Converters 1 Converter
• Sampling-Rate 143 kS/s
