AD7245JN

AD7245JN Overview

Product belongs to the DACPORTR series. Tube is the packaging method for this product 24-DIP (0.300", 7.62mm) Operational temperature range: 0°C ~ 70°C Output-Type: Voltage - Buffered Supplier device package: 24-PDIP Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is ±10.8 V ~ 16.5 V. The Voltage Supply Digital for this product is 10.8 V ~ 16.5 V. The architecture of this product is R-2R . Internal is the reference type. Number of D-A converters: 1 The 10μs (Typ) is an impressive 15 us. No Differential-Output

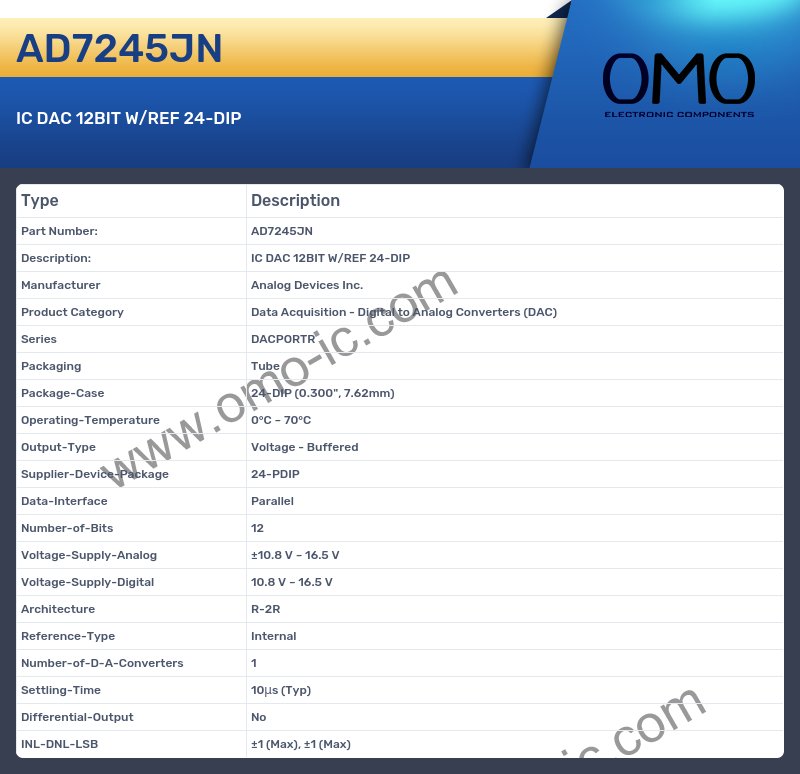

AD7245JN Image

AD7245JN Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DACPORTR
• Packaging Tube
• Package-Case 24-DIP (0.300", 7.62mm)
• Operating-Temperature 0°C ~ 70°C
• Output-Type Voltage - Buffered
• Supplier-Device-Package 24-PDIP
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog ±10.8 V ~ 16.5 V
• Voltage-Supply-Digital 10.8 V ~ 16.5 V
• Architecture R-2R
• Reference-Type Internal
• Number-of-D-A-Converters 1
• Settling-Time 10μs (Typ)
• Differential-Output No
• INL-DNL-LSB ±1 (Max), ±1 (Max)
