AD7245JP Overview

Product belongs to the DACPORTR series. This product is categorized as Digital to Analog Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.041719 oz SMD/SMT Mounting-Style PLCC-28 Operational temperature range: 0°C ~ 70°C Output-Type: Voltage - Buffered Supplier device package: 28-PLCC (11.51x11.51) Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is ±10.8 V ~ 16.5 V. The Voltage Supply Digital for this product is 10.8 V ~ 16.5 V. The architecture of this product is R-2R . Internal is the reference type. Number of D-A converters: 1 The 10μs (Typ) is an impressive 15 us. No Differential-Output

AD7245JP Image

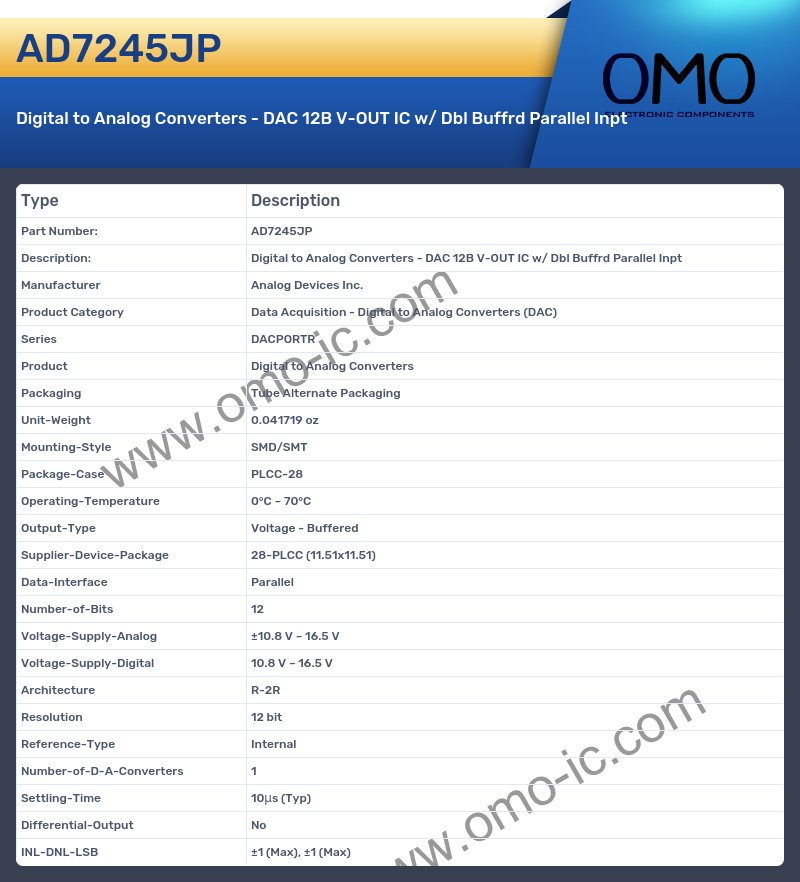

AD7245JP Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DACPORTR
• Product Digital to Analog Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.041719 oz
• Mounting-Style SMD/SMT
• Package-Case PLCC-28
• Operating-Temperature 0°C ~ 70°C
• Output-Type Voltage - Buffered
• Supplier-Device-Package 28-PLCC (11.51x11.51)
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog ±10.8 V ~ 16.5 V
• Voltage-Supply-Digital 10.8 V ~ 16.5 V
• Architecture R-2R
• Resolution 12 bit
• Reference-Type Internal
• Number-of-D-A-Converters 1
• Settling-Time 10μs (Typ)
• Differential-Output No
• INL-DNL-LSB ±1 (Max), ±1 (Max)
