AD7248JP-REEL

AD7248JP-REEL Overview

Product belongs to the DACPORTR series. Digi-ReelR is the packaging method for this product 28-LCC (J-Lead) Operational temperature range: 0°C ~ 70°C Output-Type: Voltage - Buffered Supplier device package: 28-PLCC (11.51x11.51) Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is ±10.8 V ~ 16.5 V. The Voltage Supply Digital for this product is 10.8 V ~ 16.5 V. The architecture of this product is R-2R . Internal is the reference type. Number of D-A converters: 1 The 10μs (Typ) is an impressive 15 us. No Differential-Output

AD7248JP-REEL Image

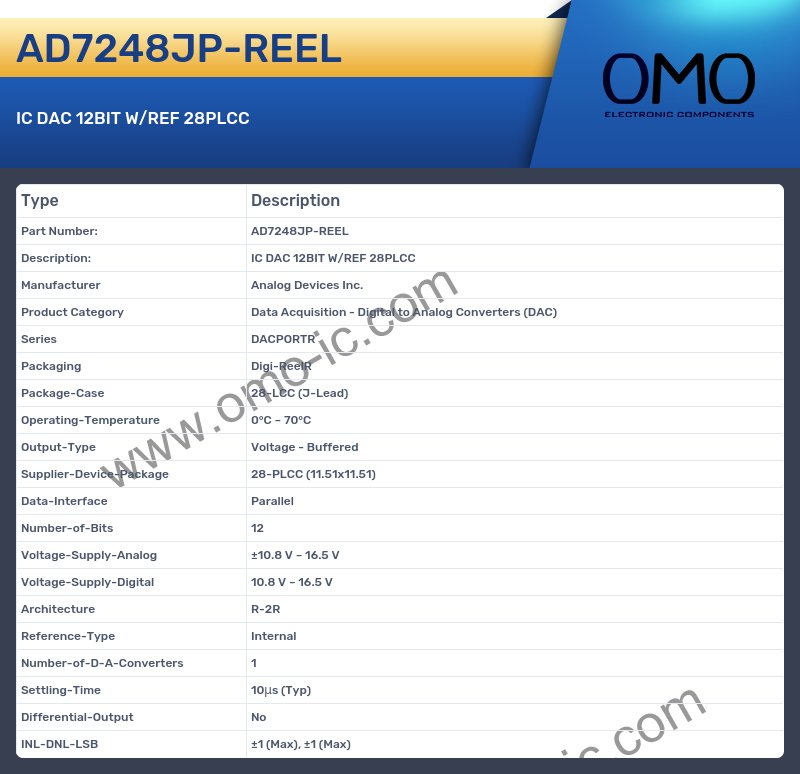

AD7248JP-REEL Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DACPORTR
• Packaging Digi-ReelR
• Package-Case 28-LCC (J-Lead)
• Operating-Temperature 0°C ~ 70°C
• Output-Type Voltage - Buffered
• Supplier-Device-Package 28-PLCC (11.51x11.51)
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog ±10.8 V ~ 16.5 V
• Voltage-Supply-Digital 10.8 V ~ 16.5 V
• Architecture R-2R
• Reference-Type Internal
• Number-of-D-A-Converters 1
• Settling-Time 10μs (Typ)
• Differential-Output No
• INL-DNL-LSB ±1 (Max), ±1 (Max)
