AD7766BRUZ-2-RL7

AD7766BRUZ-2-RL7 Overview

Product belongs to the AD7766 series. This product is categorized as Analog to Digital Converters Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.006102 oz SMD/SMT Mounting-Style TSSOP-16 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 105°C Number of channels: 1 Channel Supplier device package: 16-TSSOP This product's 32k. Data-Interface: SPI 24 bits The Voltage-Supply-Analog is 2.5V. The Voltage Supply Digital for this product is 2.5V. Configuration ADC The architecture of this product is SAR . External is the reference type. 1 units Power-off control: 18 mW Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C This product has a Power Consumption of 8.5 mW. Serial 3-Wire interface type Signal-to-Noise Ratio of 108.5 dB The 0.075 %FSR of this product is 0.2%. Number-of-Converters: 1 Converter 128 kS/s Sampling Rate Integral Nonlinearity: +/- 15 ppm

AD7766BRUZ-2-RL7 Image

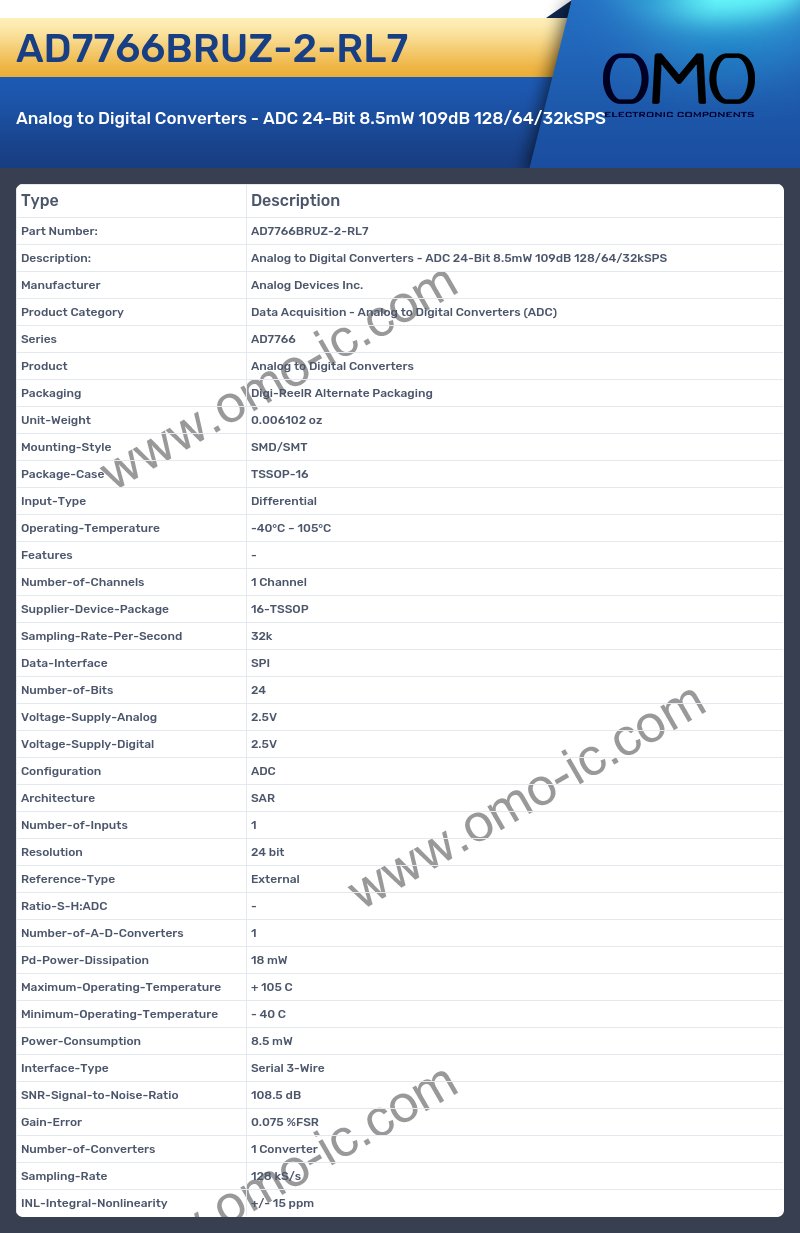

AD7766BRUZ-2-RL7 Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD7766
• Product Analog to Digital Converters
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.006102 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-16
• Input-Type Differential
• Operating-Temperature -40°C ~ 105°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 16-TSSOP
• Sampling-Rate-Per-Second 32k
• Data-Interface SPI
• Number-of-Bits 24
• Voltage-Supply-Analog 2.5V
• Voltage-Supply-Digital 2.5V
• Configuration ADC
• Architecture SAR
• Number-of-Inputs 1
• Resolution 24 bit
• Reference-Type External
• Ratio-S-H:ADC -
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 18 mW
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Power-Consumption 8.5 mW
• Interface-Type Serial 3-Wire
• SNR-Signal-to-Noise-Ratio 108.5 dB
• Gain-Error 0.075 %FSR
• Number-of-Converters 1 Converter
• Sampling-Rate 128 kS/s
• INL-Integral-Nonlinearity +/- 15 ppm
