AD7874AR

AD7874AR Overview

Product belongs to the AD7874 series. This product is categorized as Analog to Digital Converters Type: Data Acquisition System (DAS) Tube Alternate Packaging is the packaging method for this product Weight of 0.078125 oz SMD/SMT Mounting-Style SOIC-28 The Single-Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Number of channels: 4 Channel Voltage Supply Range: ±5V Supplier device package: 28-SOIC W Resolution-Bits: 12 b This product's 116k. Data-Interface: Parallel Voltage supply source: Analog and digital Dual ± The architecture of this product is SAR . External Internal is the reference type. Power-off control: 150 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C This product has a Power Consumption of 100 mW. Parallel interface type Signal-to-Noise Ratio of 71 dB The +/- 5 LSB of this product is 0.2%. Number-of-Converters: 1 Converter 28.6 kS/s Sampling Rate Integral Nonlinearity: +/- 1 LSB Differential nonlinearity: +/- 1 LSB

AD7874AR Image

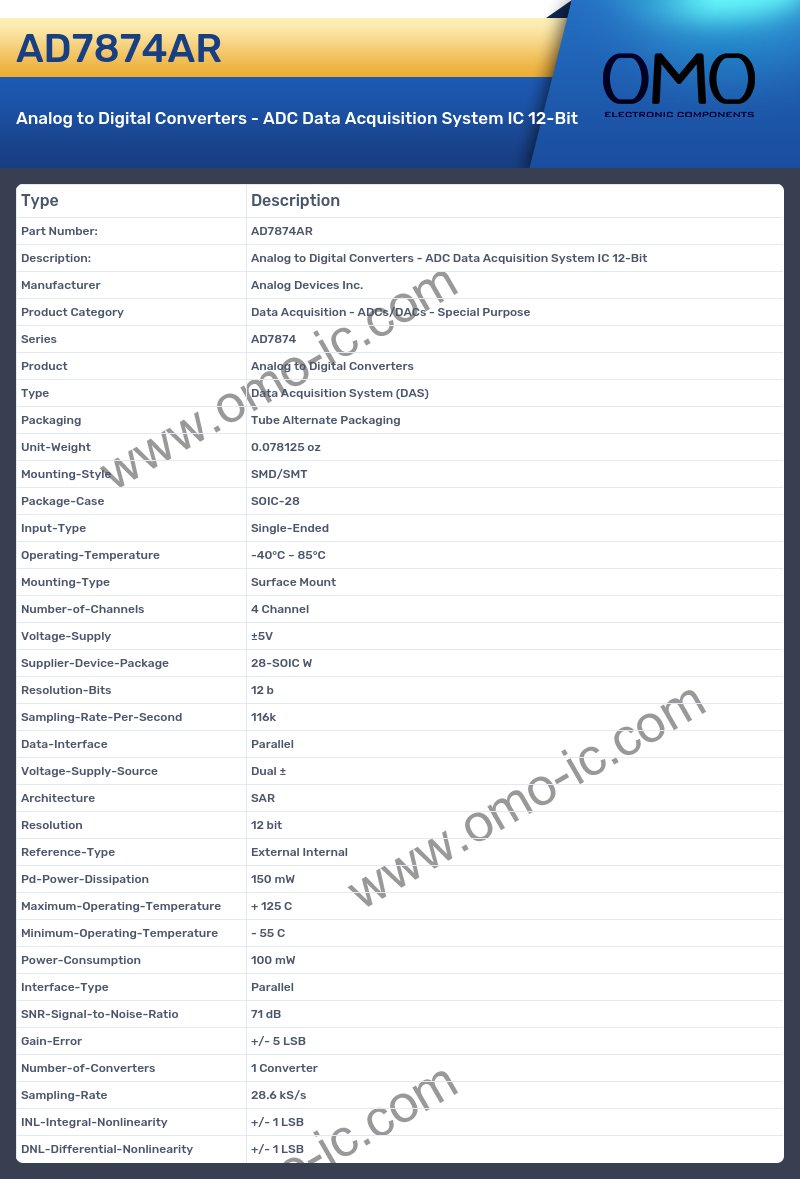

AD7874AR Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - ADCs/DACs - Special Purpose
• Series AD7874
• Product Analog to Digital Converters
• Type Data Acquisition System (DAS)
• Packaging Tube Alternate Packaging
• Unit-Weight 0.078125 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-28
• Input-Type Single-Ended
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Number-of-Channels 4 Channel
• Voltage-Supply ±5V
• Supplier-Device-Package 28-SOIC W
• Resolution-Bits 12 b
• Sampling-Rate-Per-Second 116k
• Data-Interface Parallel
• Voltage-Supply-Source Dual ±
• Architecture SAR
• Resolution 12 bit
• Reference-Type External Internal
• Pd-Power-Dissipation 150 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Power-Consumption 100 mW
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 71 dB
• Gain-Error +/- 5 LSB
• Number-of-Converters 1 Converter
• Sampling-Rate 28.6 kS/s
• INL-Integral-Nonlinearity +/- 1 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
