AD8345AREZ Overview

Product belongs to the AD8345 series. Type: Modulator Tube Alternate Packaging is the packaging method for this product Weight of 0.006102 oz SMD/SMT Mounting-Style TSSOP-16 Product function is Modulator. Voltage Supply Range: 2.7 V ~ 5.5 V This product has a 78mA of 200μA. Test-Frequency is 800MHz. P1dB is 2.5dBm Power-off control: 500 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 2.7 V to 5.5 V supply voltage for reliable performance. The 1000 MHz of this product is 25 GHz. 65 mA is 92 nA. LO interface type The AD8345-EVALZ. The 140 MHz of this product is 0 Hz. Quadrature are the supported modulation formats.

AD8345AREZ Image

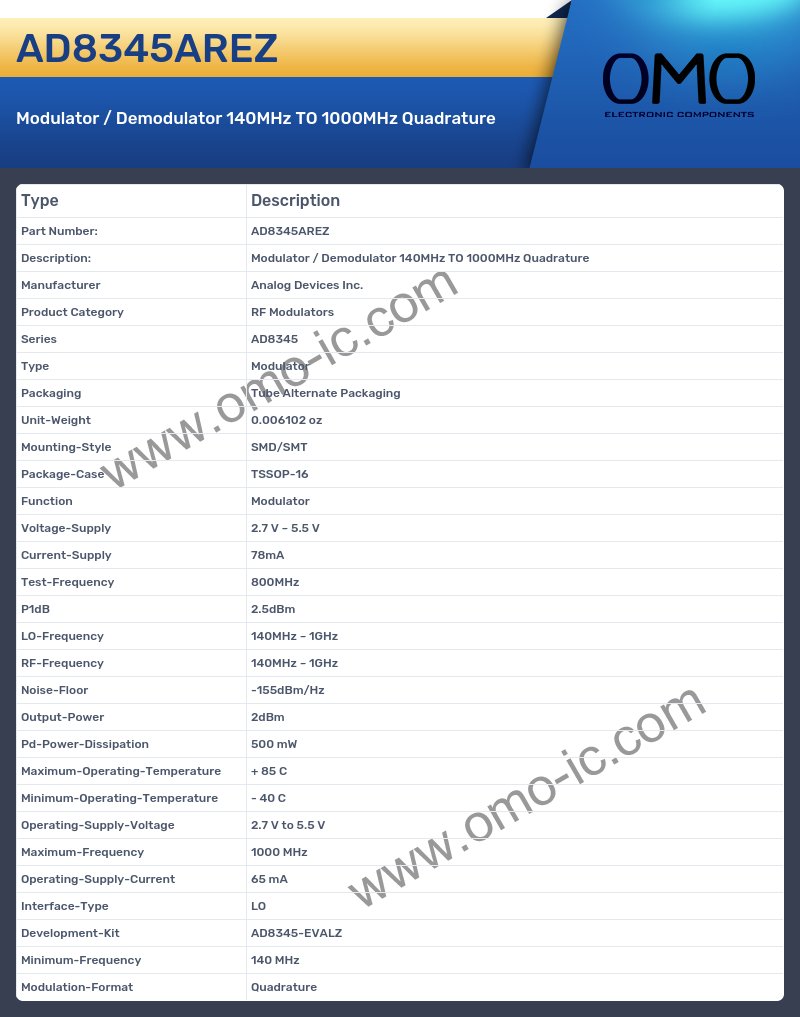

AD8345AREZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Modulators
• Series AD8345
• Type Modulator
• Packaging Tube Alternate Packaging
• Unit-Weight 0.006102 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-16
• Function Modulator
• Voltage-Supply 2.7 V ~ 5.5 V
• Current-Supply 78mA
• Test-Frequency 800MHz
• P1dB 2.5dBm
• LO-Frequency 140MHz ~ 1GHz
• RF-Frequency 140MHz ~ 1GHz
• Noise-Floor -155dBm/Hz
• Output-Power 2dBm
• Pd-Power-Dissipation 500 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.7 V to 5.5 V
• Maximum-Frequency 1000 MHz
• Operating-Supply-Current 65 mA
• Interface-Type LO
• Development-Kit AD8345-EVALZ
• Minimum-Frequency 140 MHz
• Modulation-Format Quadrature
