AD8564AR

AD8564AR Overview

Product belongs to the AD8564 series. This product is categorized as Analog Comparators Type: General Purpose Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.023492 oz SMD/SMT Mounting-Style SOIC-16 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: CMOS, TTL Number of channels: 4 Channel Supplier device package: 16-SOIC Voltage supply range: - 4 element 14mA, 14mA, 7mA maximum quiescent current. Maximum propagation delay: 9.8ns Hysteresis value of - 8 ns response time Power-off control: No Shutdown Power-off control: 150 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 7 mA is 92 nA. Maximum supply voltage of 5 V Minimum supply voltage is - 5 V General Purpose comparator type Input bias current of 4 uA The 3 mV. 8 ns is 23 microseconds. The 80 dB. 40 mA The CMRR-Common-Mode-Rejection-Ratio is 85 dB.

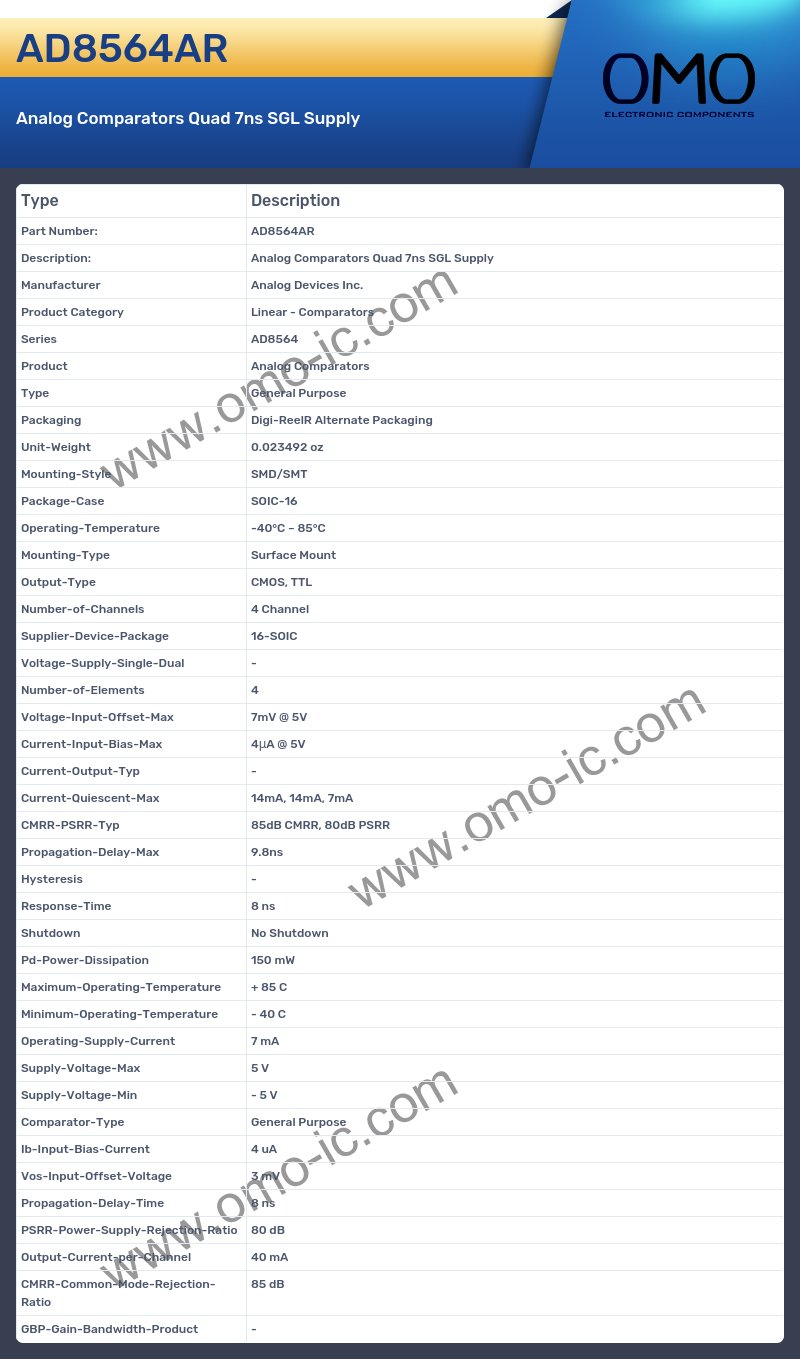

AD8564AR Image

AD8564AR Specifications

• Manufacturer Analog Devices Inc.
• Product Category Linear - Comparators
• Series AD8564
• Product Analog Comparators
• Type General Purpose
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.023492 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type CMOS, TTL
• Number-of-Channels 4 Channel
• Supplier-Device-Package 16-SOIC
• Voltage-Supply-Single-Dual -
• Number-of-Elements 4
• Voltage-Input-Offset-Max 7mV @ 5V
• Current-Input-Bias-Max 4μA @ 5V
• Current-Output-Typ -
• Current-Quiescent-Max 14mA, 14mA, 7mA
• CMRR-PSRR-Typ 85dB CMRR, 80dB PSRR
• Propagation-Delay-Max 9.8ns
• Hysteresis -
• Response-Time 8 ns
• Shutdown No Shutdown
• Pd-Power-Dissipation 150 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 7 mA
• Supply-Voltage-Max 5 V
• Supply-Voltage-Min - 5 V
• Comparator-Type General Purpose
• Ib-Input-Bias-Current 4 uA
• Vos-Input-Offset-Voltage 3 mV
• Propagation-Delay-Time 8 ns
• PSRR-Power-Supply-Rejection-Ratio 80 dB
• Output-Current-per-Channel 40 mA
• CMRR-Common-Mode-Rejection-Ratio 85 dB
• GBP-Gain-Bandwidth-Product -
