AD8803AR

AD8803AR Overview

Product belongs to the TrimDACR series. This product is categorized as Digital to Analog Converters Type: General Purpose DAC Tube is the packaging method for this product Weight of 0.023492 oz SMD/SMT Mounting-Style SOIC-16 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Unbuffered Number of channels: 8 Channel Supplier device package: 16-SOIC Data-Interface: SPI 8 bits The Voltage-Supply-Analog is 2.7 V ~ 5.5 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.5 V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 8 The 600ns (Typ) is an impressive 15 us. No Differential-Output Power-off control: 27.5 uW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial 3-Wire interface type Maximum supply voltage of 5.5 V Minimum supply voltage is 2.7 V Number-of-Converters: 8 Converter 1.7 MS/s Sampling Rate Integral Nonlinearity: +/- 0.5 LSB Differential nonlinearity: +/- 0.25 LSB

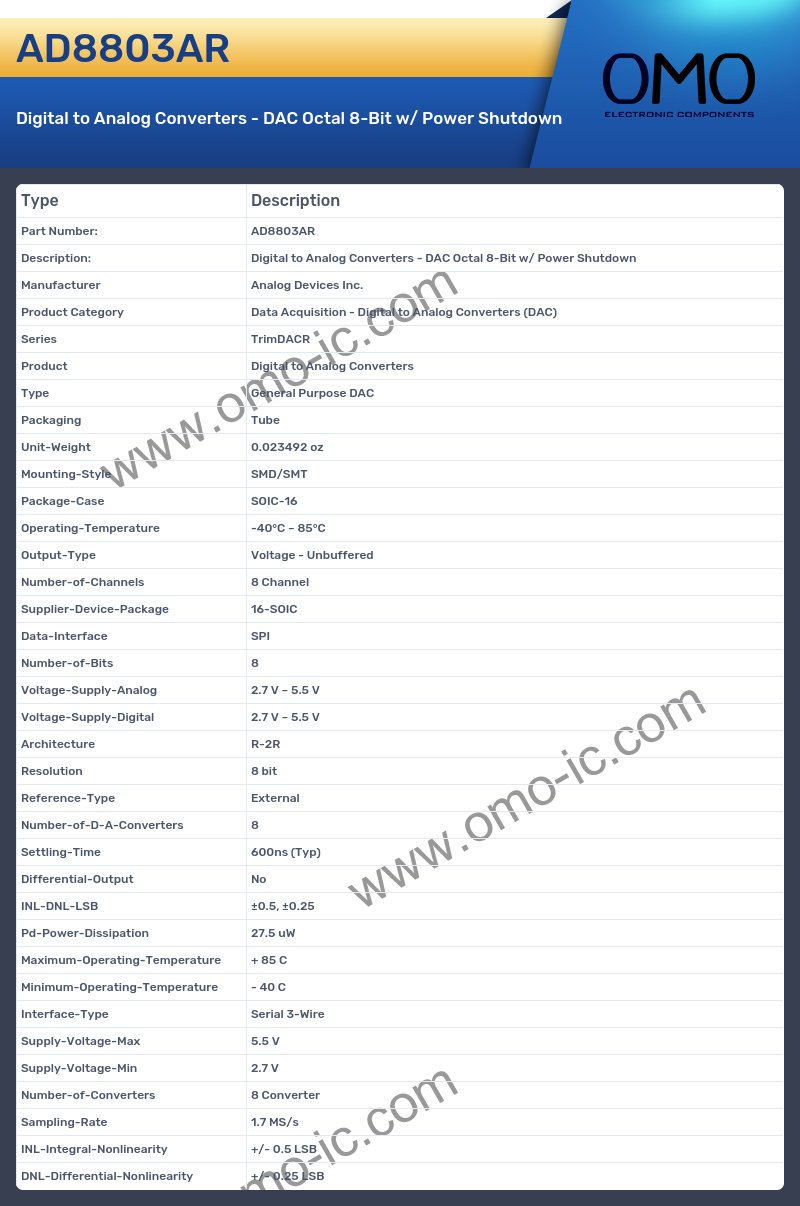

AD8803AR Image

AD8803AR Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series TrimDACR
• Product Digital to Analog Converters
• Type General Purpose DAC
• Packaging Tube
• Unit-Weight 0.023492 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Unbuffered
• Number-of-Channels 8 Channel
• Supplier-Device-Package 16-SOIC
• Data-Interface SPI
• Number-of-Bits 8
• Voltage-Supply-Analog 2.7 V ~ 5.5 V
• Voltage-Supply-Digital 2.7 V ~ 5.5 V
• Architecture R-2R
• Resolution 8 bit
• Reference-Type External
• Number-of-D-A-Converters 8
• Settling-Time 600ns (Typ)
• Differential-Output No
• INL-DNL-LSB ±0.5, ±0.25
• Pd-Power-Dissipation 27.5 uW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial 3-Wire
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.7 V
• Number-of-Converters 8 Converter
• Sampling-Rate 1.7 MS/s
• INL-Integral-Nonlinearity +/- 0.5 LSB
• DNL-Differential-Nonlinearity +/- 0.25 LSB
