AD9221ARS

AD9221ARS Overview

Product belongs to the AD9221 series. This product is categorized as Analog to Digital Converters Type: S/H ADC Tube Alternate Packaging is the packaging method for this product Weight of 0.080001 oz SMD/SMT Mounting-Style SSOP-28 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 28-SSOP This product's 1.5M. Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 2.7 V ~ 5.25 V. Configuration S/H-ADC The architecture of this product is Pipelined . Internal is the reference type. 1 units Power-off control: 70 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product has a Power Consumption of 59 mW. Parallel interface type Signal-to-Noise Ratio of 70.2 dB The +/- 1.5 %FSR of this product is 0.2%. Number-of-Converters: 1 Converter 1.5 MS/s Sampling Rate Integral Nonlinearity: +/- 1.25 LSB Differential nonlinearity: +/- 0.75 LSB

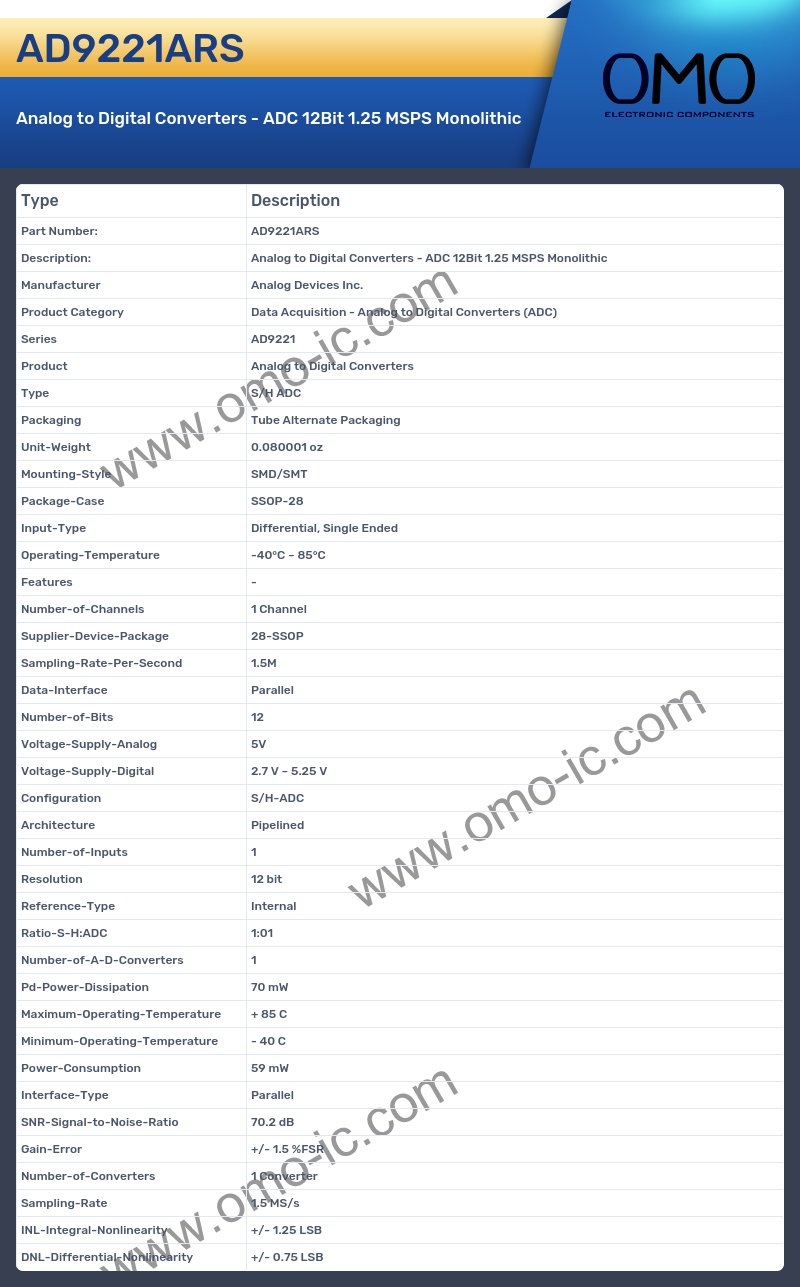

AD9221ARS Image

AD9221ARS Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD9221
• Product Analog to Digital Converters
• Type S/H ADC
• Packaging Tube Alternate Packaging
• Unit-Weight 0.080001 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-28
• Input-Type Differential, Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 28-SSOP
• Sampling-Rate-Per-Second 1.5M
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 2.7 V ~ 5.25 V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 1
• Resolution 12 bit
• Reference-Type Internal
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 70 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Power-Consumption 59 mW
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 70.2 dB
• Gain-Error +/- 1.5 %FSR
• Number-of-Converters 1 Converter
• Sampling-Rate 1.5 MS/s
• INL-Integral-Nonlinearity +/- 1.25 LSB
• DNL-Differential-Nonlinearity +/- 0.75 LSB
