ADC10321CIVT

ADC10321CIVT Overview

Product belongs to the ADC10321 series. This product is categorized as Analog to Digital Converters Type: S/H ADC Tray is the packaging method for this product Weight of 0.027302 oz SMD/SMT Mounting-Style LQFP-32 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 32-TQFP (7x7) This product's 20M. Data-Interface: Parallel 10 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration S/H-ADC The architecture of this product is Two-Step . External is the reference type. 1 units Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Signal-to-Noise Ratio of 60 dB The - 6 mV of this product is 0.2%. Number-of-Converters: 1 Converter 20 MS/s Sampling Rate Analog supply voltage: 5 V Digital Supply Voltage: 2.7 V to 5.5 V Integral Nonlinearity: 1 LSB Differential nonlinearity: 0.85 LSB

ADC10321CIVT Image

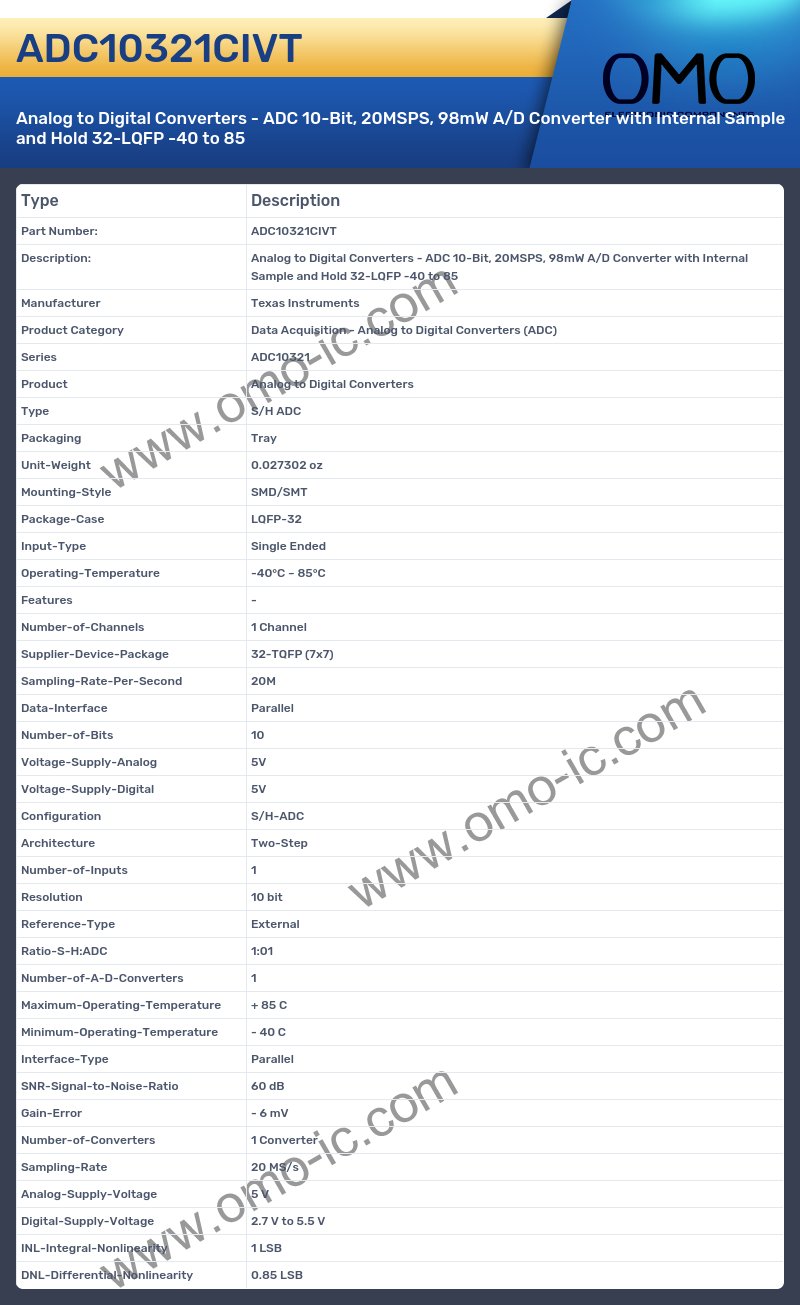

ADC10321CIVT Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADC10321
• Product Analog to Digital Converters
• Type S/H ADC
• Packaging Tray
• Unit-Weight 0.027302 oz
• Mounting-Style SMD/SMT
• Package-Case LQFP-32
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 32-TQFP (7x7)
• Sampling-Rate-Per-Second 20M
• Data-Interface Parallel
• Number-of-Bits 10
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration S/H-ADC
• Architecture Two-Step
• Number-of-Inputs 1
• Resolution 10 bit
• Reference-Type External
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 1
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 60 dB
• Gain-Error - 6 mV
• Number-of-Converters 1 Converter
• Sampling-Rate 20 MS/s
• Analog-Supply-Voltage 5 V
• Digital-Supply-Voltage 2.7 V to 5.5 V
• INL-Integral-Nonlinearity 1 LSB
• DNL-Differential-Nonlinearity 0.85 LSB
