ADG1409SRU-EP

ADG1409SRU-EP Overview

RoHS compliant with No This product is categorized as Multiplexers Single 4 Channel for basic signal processing Configuration 2 x 4: Maximum On Resistance: 4 Ohms Maximum off time: 100 ns The 12 V is 15 V. Maximum Operating Temperature: + 125 C Package type is TSSOP 115 MHz bandwidth The EVAL-CN0251-SDPZ development kit is available now. - 40 C minimum operating temperature Typical off isolation of - 70 dB Tube is the packaging method for this product The power dissipation is 4.9 mW. Product belongs to the ADG1409 series.

ADG1409SRU-EP Image

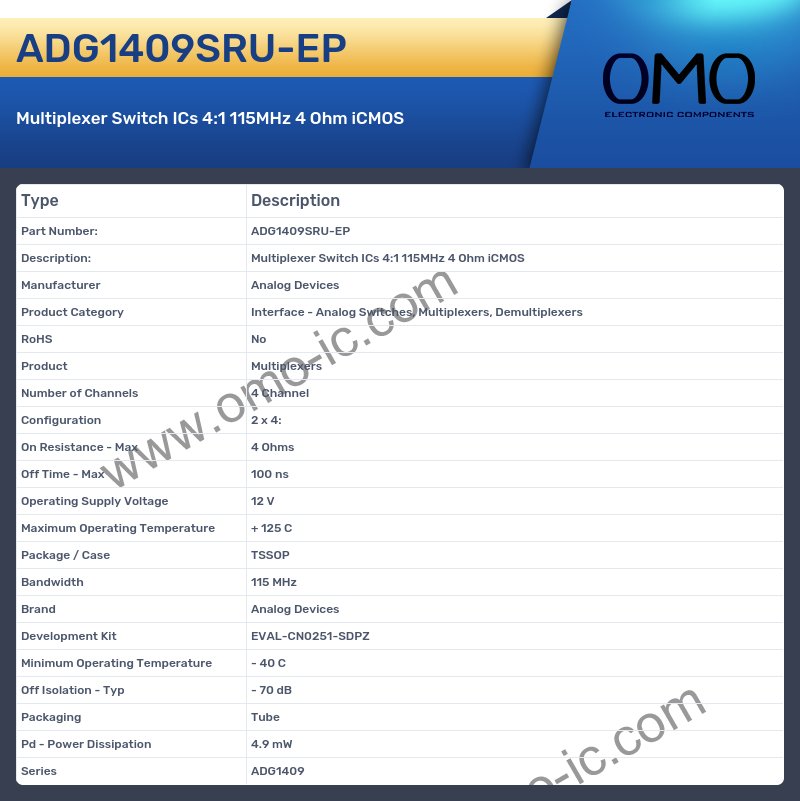

ADG1409SRU-EP Specifications

• Manufacturer Analog Devices
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• RoHS No
• Product Multiplexers
• Number of Channels 4 Channel
• Configuration 2 x 4:
• On Resistance - Max 4 Ohms
• Off Time - Max 100 ns
• Operating Supply Voltage 12 V
• Maximum Operating Temperature + 125 C
• Package / Case TSSOP
• Bandwidth 115 MHz
• Brand Analog Devices
• Development Kit EVAL-CN0251-SDPZ
• Minimum Operating Temperature - 40 C
• Off Isolation - Typ - 70 dB
• Packaging Tube
• Pd - Power Dissipation 4.9 mW
• Series ADG1409
