ADG201HSJP Overview

Product belongs to the - series. Tube is the packaging method for this product Product Obsolete Demultiplexer Circuit with 1: outputs This product features a 4. Maximum On-State Resistance: 50 Ohm " 1.5 Ohm Channel-to-Channel Matching Dual voltage supply of ±13.5 V ~ 16.5 V The Switch Time is 75ns, 75ns. This product has a - The channel capacitance is 10pF, 10pF. Operating Temperature of -40°C ~ 85°C (TA) Package type is 20-LCC (J-Lead) The supplier device package for this product is 20-PLCC (9x9). ADG201HS is the base part number.

ADG201HSJP Image

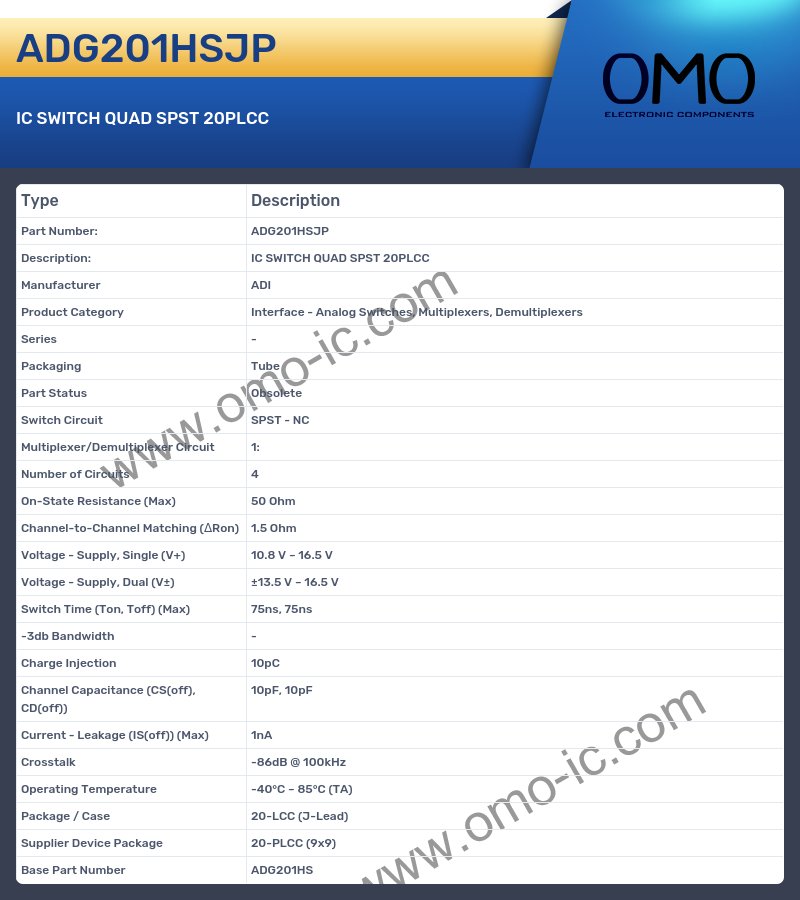

ADG201HSJP Specifications

• Manufacturer ADI
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series -
• Packaging Tube
• Part Status Obsolete
• Switch Circuit SPST - NC
• Multiplexer/Demultiplexer Circuit 1:
• Number of Circuits 4
• On-State Resistance (Max) 50 Ohm
• Channel-to-Channel Matching (ΔRon) 1.5 Ohm
• Voltage - Supply, Single (V+) 10.8 V ~ 16.5 V
• Voltage - Supply, Dual (V±) ±13.5 V ~ 16.5 V
• Switch Time (Ton, Toff) (Max) 75ns, 75ns
• -3db Bandwidth -
• Charge Injection 10pC
• Channel Capacitance (CS(off), CD(off)) 10pF, 10pF
• Current - Leakage (IS(off)) (Max) 1nA
• Crosstalk -86dB @ 100kHz
• Operating Temperature -40°C ~ 85°C (TA)
• Package / Case 20-LCC (J-Lead)
• Supplier Device Package 20-PLCC (9x9)
• Base Part Number ADG201HS
