ADG433BNZ

ADG433BNZ Overview

Product belongs to the - series. Tube is the packaging method for this product Product Obsolete Demultiplexer Circuit with 1: outputs This product features a 4. Maximum On-State Resistance: 24 Ohm " 1.2 Ohm Channel-to-Channel Matching Dual voltage supply of ±15V The Switch Time is 90ns, 60ns. This product has a - The channel capacitance is 9pF, 9pF. Operating Temperature of -40°C ~ 85°C (TA) Package type is 16-DIP (0.300", 7.62mm) The supplier device package for this product is 16-PDIP. ADG433 is the base part number.

ADG433BNZ Image

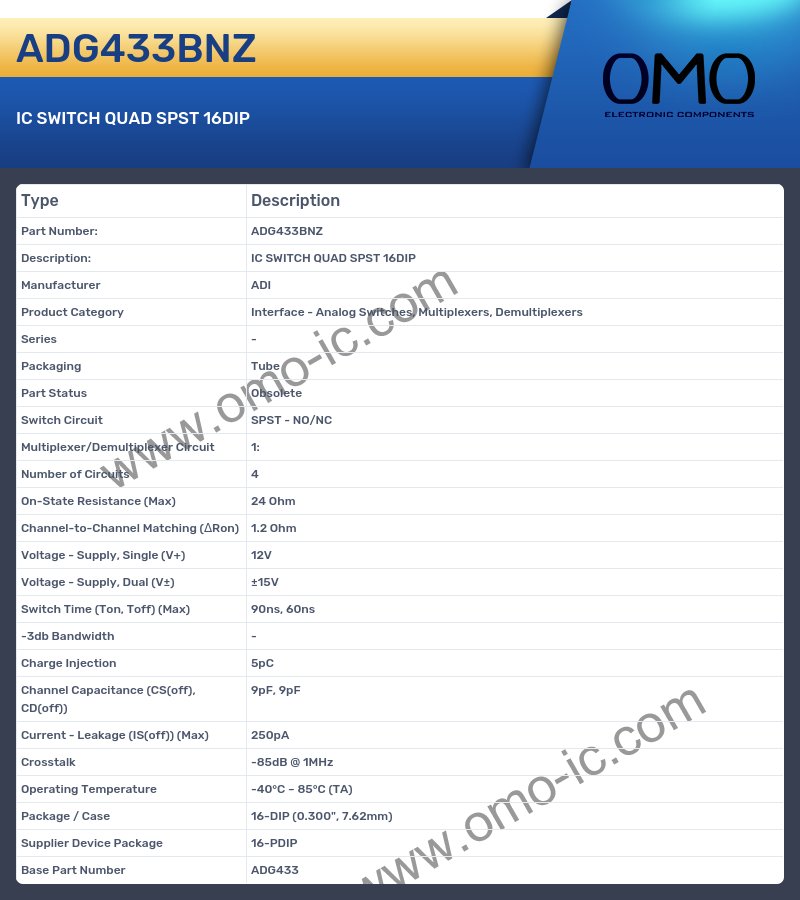

ADG433BNZ Specifications

• Manufacturer ADI
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series -
• Packaging Tube
• Part Status Obsolete
• Switch Circuit SPST - NO/NC
• Multiplexer/Demultiplexer Circuit 1:
• Number of Circuits 4
• On-State Resistance (Max) 24 Ohm
• Channel-to-Channel Matching (ΔRon) 1.2 Ohm
• Voltage - Supply, Single (V+) 12V
• Voltage - Supply, Dual (V±) ±15V
• Switch Time (Ton, Toff) (Max) 90ns, 60ns
• -3db Bandwidth -
• Charge Injection 5pC
• Channel Capacitance (CS(off), CD(off)) 9pF, 9pF
• Current - Leakage (IS(off)) (Max) 250pA
• Crosstalk -85dB @ 1MHz
• Operating Temperature -40°C ~ 85°C (TA)
• Package / Case 16-DIP (0.300", 7.62mm)
• Supplier Device Package 16-PDIP
• Base Part Number ADG433
