ADG509ATQ

ADG509ATQ Overview

Product belongs to the ADG509A series. This product is categorized as Multiplexers Tube is the packaging method for this product Through Hole Mounting-Style Number of channels: 4 Channel Configuration 2 x 4 Power-off control: 28 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C This product operates at a 10.8 V to 16.5 V supply voltage for reliable performance. CDIP-16 300 ns is 23 microseconds. Max on-resistance of 600 Ohms Maximum off time: 400 ns Maximum on-time: 400 ns The 68 dB of this product is 35 dB.

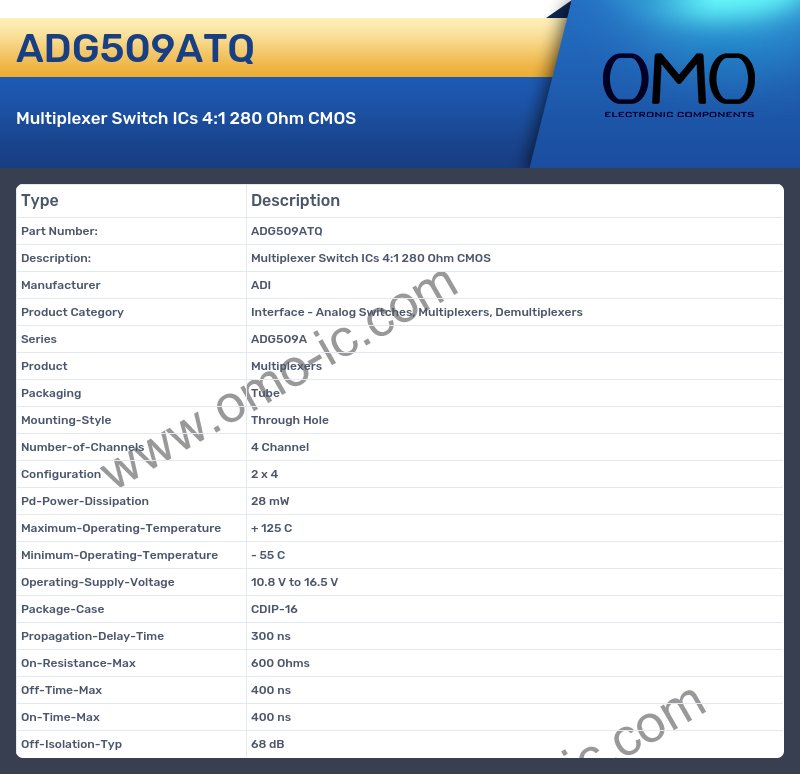

ADG509ATQ Image

ADG509ATQ Specifications

• Manufacturer ADI
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series ADG509A
• Product Multiplexers
• Packaging Tube
• Mounting-Style Through Hole
• Number-of-Channels 4 Channel
• Configuration 2 x 4
• Pd-Power-Dissipation 28 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Operating-Supply-Voltage 10.8 V to 16.5 V
• Package-Case CDIP-16
• Propagation-Delay-Time 300 ns
• On-Resistance-Max 600 Ohms
• Off-Time-Max 400 ns
• On-Time-Max 400 ns
• Off-Isolation-Typ 68 dB
