ADS1205IRGET

ADS1205IRGET Overview

Product belongs to the ADS1205 series. This product is categorized as Analog to Digital Converters Type: Modulator Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001601 oz SMD/SMT Mounting-Style VQFN-24 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Number of channels: 2 Channel Voltage Supply Range: 2.7 V ~ 5.5 V Supplier device package: 24-VQFN (4x4) Resolution-Bits: 16 b This product's 40k. Data-Interface: Serial Voltage supply source: Analog and digital Analog and Digital The architecture of this product is Sigma-Delta . External Internal is the reference type. Power-off control: 80 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial interface type Signal-to-Noise Ratio of 89 dB Number-of-Converters: 2 Converter 40 kS/s Sampling Rate Analog supply voltage: 5 V Digital Supply Voltage: 2.7 V to 5.5 V Integral Nonlinearity: +/- 3 LSB Reference voltage is 2.5 V . Differential nonlinearity: +/- 1 LSB

ADS1205IRGET Image

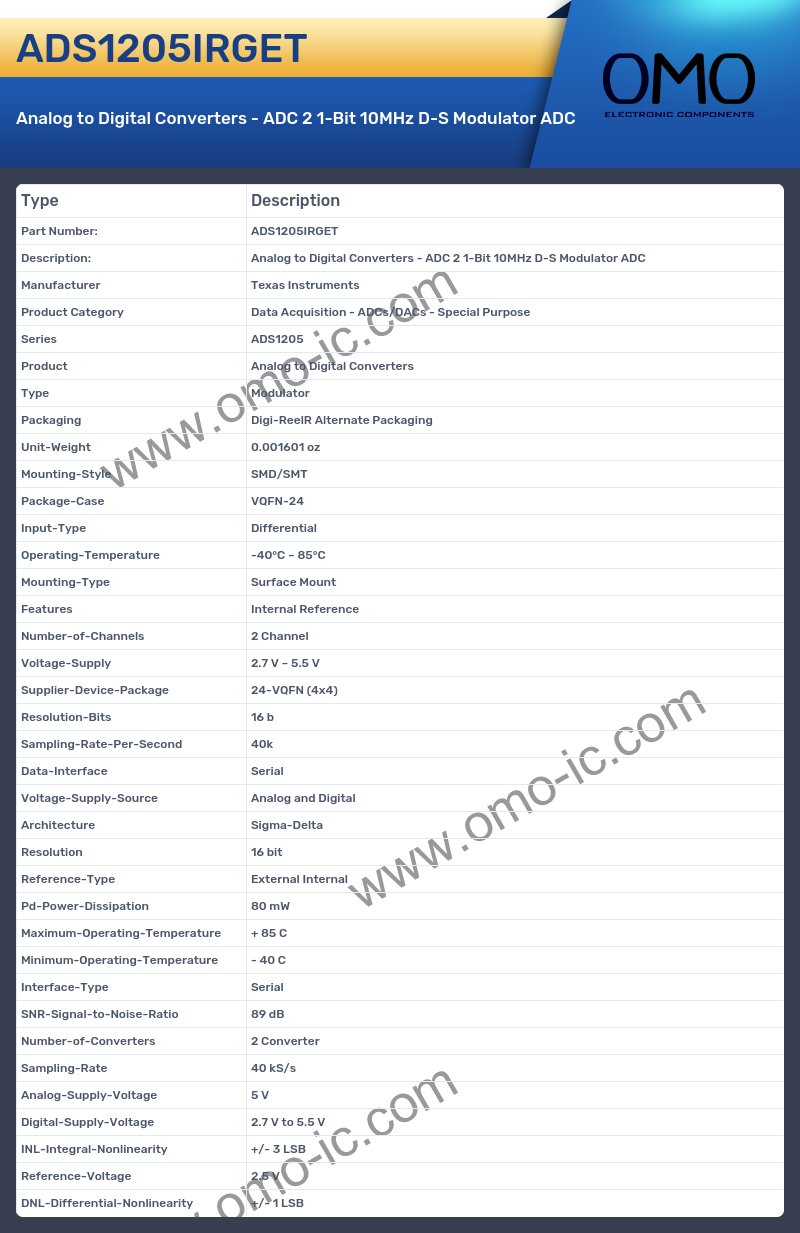

ADS1205IRGET Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - ADCs/DACs - Special Purpose
• Series ADS1205
• Product Analog to Digital Converters
• Type Modulator
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001601 oz
• Mounting-Style SMD/SMT
• Package-Case VQFN-24
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Features Internal Reference
• Number-of-Channels 2 Channel
• Voltage-Supply 2.7 V ~ 5.5 V
• Supplier-Device-Package 24-VQFN (4x4)
• Resolution-Bits 16 b
• Sampling-Rate-Per-Second 40k
• Data-Interface Serial
• Voltage-Supply-Source Analog and Digital
• Architecture Sigma-Delta
• Resolution 16 bit
• Reference-Type External Internal
• Pd-Power-Dissipation 80 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial
• SNR-Signal-to-Noise-Ratio 89 dB
• Number-of-Converters 2 Converter
• Sampling-Rate 40 kS/s
• Analog-Supply-Voltage 5 V
• Digital-Supply-Voltage 2.7 V to 5.5 V
• INL-Integral-Nonlinearity +/- 3 LSB
• Reference-Voltage 2.5 V
• DNL-Differential-Nonlinearity +/- 1 LSB
