ADS1243SJD

ADS1243SJD Overview

Product belongs to the ADS1243-HT series. This product is categorized as Analog to Digital Converters Tube is the packaging method for this product Through Hole Mounting-Style CDIP-SB-20 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 8 Channel Supplier device package: 20-CDIP SB This product's 15. Data-Interface: SPI 24 bits The Voltage-Supply-Analog is 2.7 V ~ 3.3 V, 5V. The Voltage Supply Digital for this product is 2.7 V ~ 5.25 V. Configuration MUX-PGA-ADC The architecture of this product is Sigma-Delta . External is the reference type. 1 units Power-off control: 2.52 mW Maximum operating temperature of + 210 C Minimum operating temperature: - 55 C Serial SPI interface type Number-of-Converters: 1 Converter 15 S/s Sampling Rate Analog supply voltage: 2.7 V to 5.25 V Digital Supply Voltage: 2.7 V to 5.25 V Integral Nonlinearity: 0.00002 %

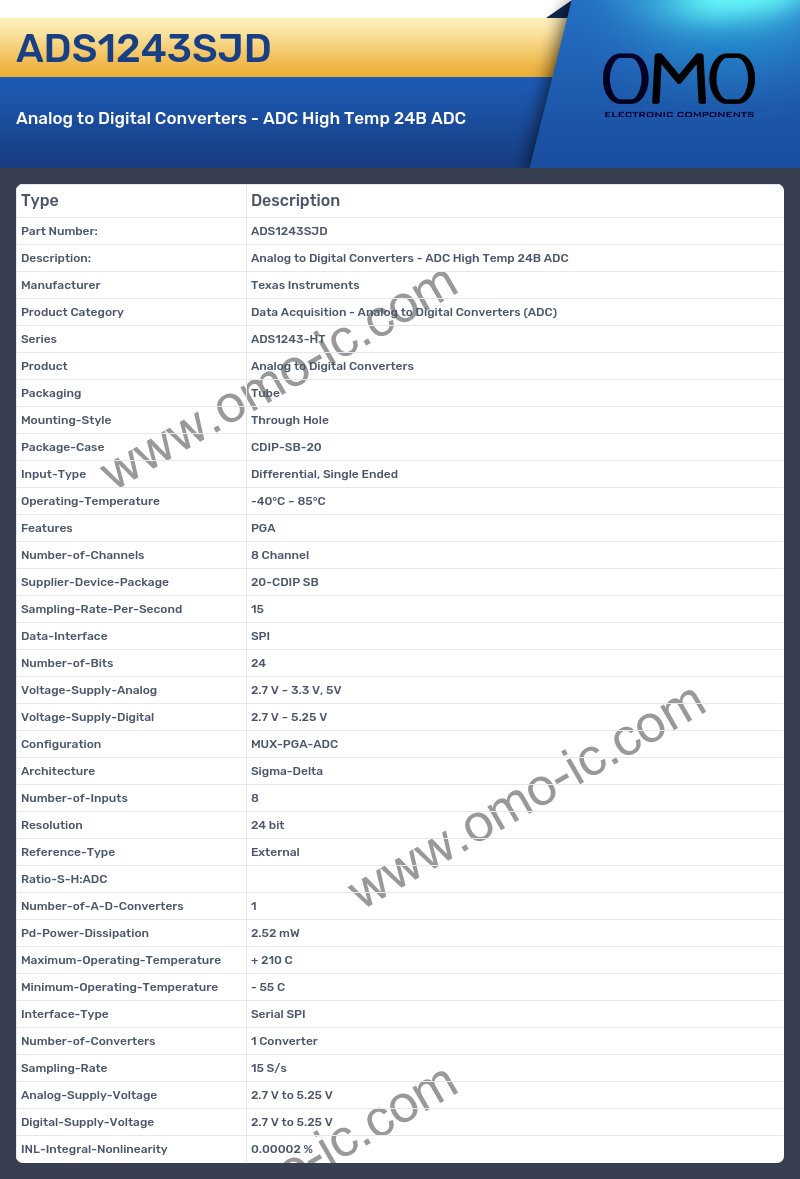

ADS1243SJD Image

ADS1243SJD Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS1243-HT
• Product Analog to Digital Converters
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case CDIP-SB-20
• Input-Type Differential, Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features PGA
• Number-of-Channels 8 Channel
• Supplier-Device-Package 20-CDIP SB
• Sampling-Rate-Per-Second 15
• Data-Interface SPI
• Number-of-Bits 24
• Voltage-Supply-Analog 2.7 V ~ 3.3 V, 5V
• Voltage-Supply-Digital 2.7 V ~ 5.25 V
• Configuration MUX-PGA-ADC
• Architecture Sigma-Delta
• Number-of-Inputs 8
• Resolution 24 bit
• Reference-Type External
• Ratio-S-H:ADC
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 2.52 mW
• Maximum-Operating-Temperature + 210 C
• Minimum-Operating-Temperature - 55 C
• Interface-Type Serial SPI
• Number-of-Converters 1 Converter
• Sampling-Rate 15 S/s
• Analog-Supply-Voltage 2.7 V to 5.25 V
• Digital-Supply-Voltage 2.7 V to 5.25 V
• INL-Integral-Nonlinearity 0.00002 %
