ADS1626IPAPT

ADS1626IPAPT Overview

Product belongs to the ADS1626 series. This product is categorized as Analog to Digital Converters Cut Tape (CT) Alternate Packaging is the packaging method for this product Weight of 0.009108 oz SMD/SMT Mounting-Style HTQFP-64 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 64-HTQFP (10x10) This product's 1.25M. Data-Interface: Parallel 18 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 2.7 V ~ 3.3 V. Configuration ADC The architecture of this product is Sigma-Delta . External, Internal is the reference type. 1 units Power-off control: 645 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Signal-to-Noise Ratio of 93 dB The ADS1626EVM. Number-of-Converters: 1 Converter 1.25 MS/s Sampling Rate Analog supply voltage: 4.75 V to 5.25 V Digital Supply Voltage: 2.7 V to 5.25 V Integral Nonlinearity: 3.5 LSB Differential nonlinearity: +/- 0.5 LSB

ADS1626IPAPT Image

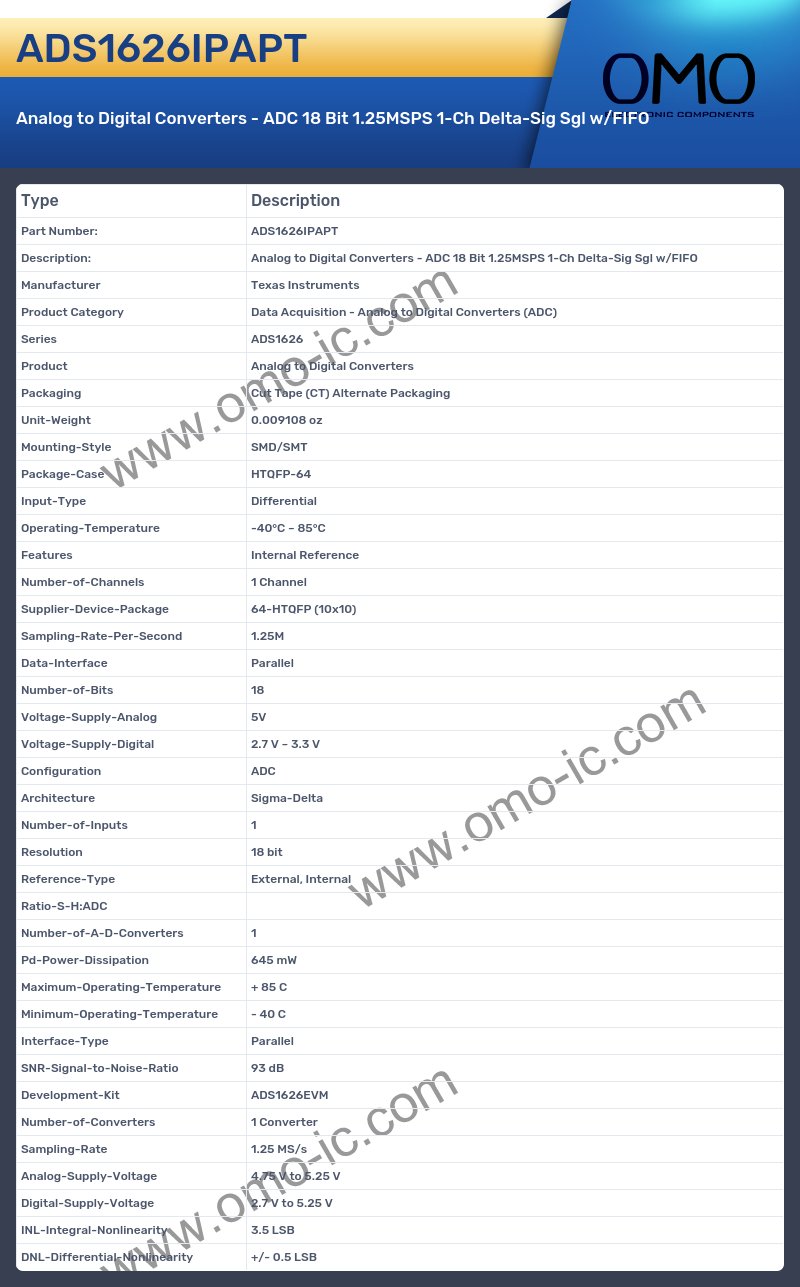

ADS1626IPAPT Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS1626
• Product Analog to Digital Converters
• Packaging Cut Tape (CT) Alternate Packaging
• Unit-Weight 0.009108 oz
• Mounting-Style SMD/SMT
• Package-Case HTQFP-64
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Features Internal Reference
• Number-of-Channels 1 Channel
• Supplier-Device-Package 64-HTQFP (10x10)
• Sampling-Rate-Per-Second 1.25M
• Data-Interface Parallel
• Number-of-Bits 18
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 2.7 V ~ 3.3 V
• Configuration ADC
• Architecture Sigma-Delta
• Number-of-Inputs 1
• Resolution 18 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 645 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 93 dB
• Development-Kit ADS1626EVM
• Number-of-Converters 1 Converter
• Sampling-Rate 1.25 MS/s
• Analog-Supply-Voltage 4.75 V to 5.25 V
• Digital-Supply-Voltage 2.7 V to 5.25 V
• INL-Integral-Nonlinearity 3.5 LSB
• DNL-Differential-Nonlinearity +/- 0.5 LSB
