ADS1675IPAG

ADS1675IPAG Overview

Product belongs to the ADS1675 series. This product is categorized as Analog to Digital Converters Tray Alternate Packaging is the packaging method for this product Weight of 0.009690 oz SMD/SMT Mounting-Style TQFP-64 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Output-Type: LVDS Number of channels: 1 Channel Supplier device package: 64-TQFP (10x10) This product's 4M. Data-Interface: LVDS - Serial, SPI 24 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 2.7 V ~ 3.3 V. Configuration ADC The architecture of this product is Sigma-Delta . External is the reference type. 1 units Power-off control: 600 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial interface type Signal-to-Noise Ratio of 107 dB The ADS1675REF. Number-of-Converters: 1 Converter 4 MS/s Sampling Rate Analog supply voltage: 4.75 V to 5.25 V Digital Supply Voltage: 2.85 V to 3.15 V Integral Nonlinearity: 15 ppm of FSR Differential nonlinearity: +/- 1 LSB

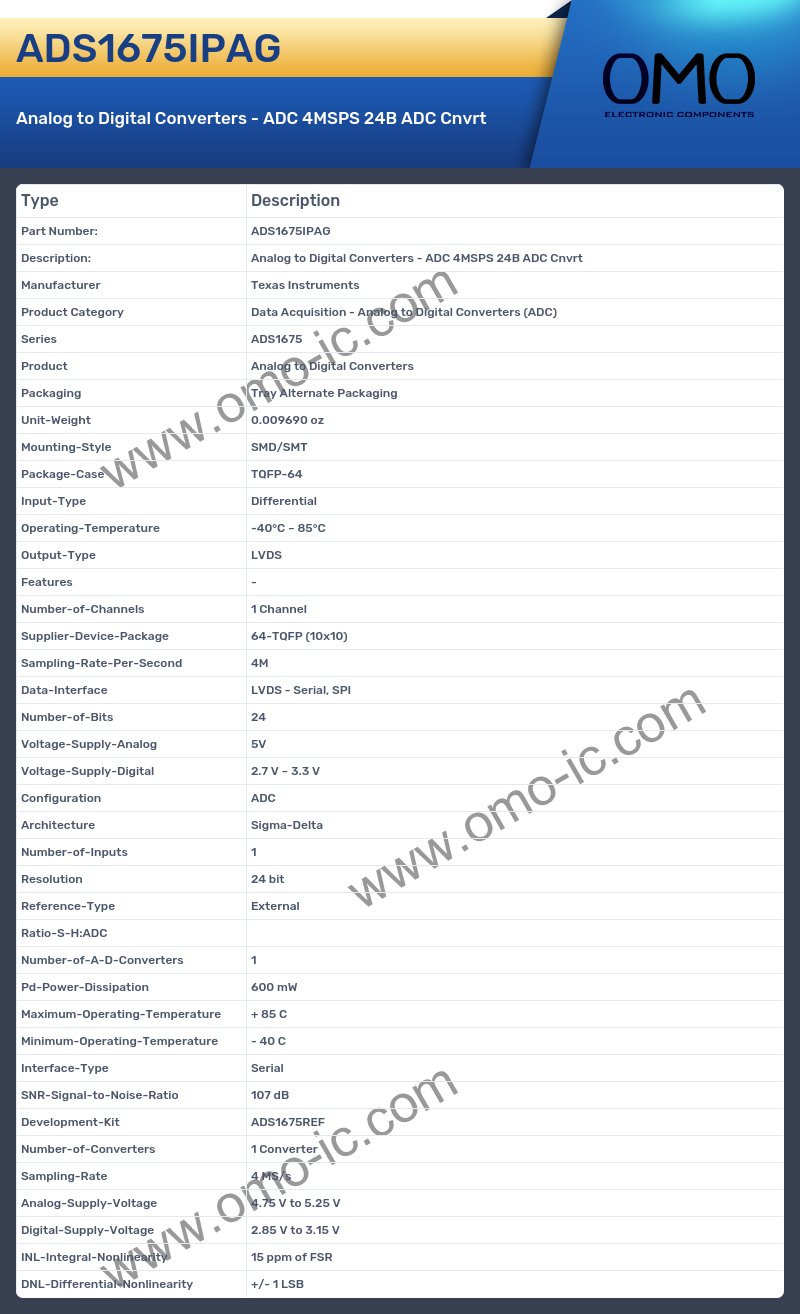

ADS1675IPAG Image

ADS1675IPAG Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS1675
• Product Analog to Digital Converters
• Packaging Tray Alternate Packaging
• Unit-Weight 0.009690 oz
• Mounting-Style SMD/SMT
• Package-Case TQFP-64
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Output-Type LVDS
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 64-TQFP (10x10)
• Sampling-Rate-Per-Second 4M
• Data-Interface LVDS - Serial, SPI
• Number-of-Bits 24
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 2.7 V ~ 3.3 V
• Configuration ADC
• Architecture Sigma-Delta
• Number-of-Inputs 1
• Resolution 24 bit
• Reference-Type External
• Ratio-S-H:ADC
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 600 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial
• SNR-Signal-to-Noise-Ratio 107 dB
• Development-Kit ADS1675REF
• Number-of-Converters 1 Converter
• Sampling-Rate 4 MS/s
• Analog-Supply-Voltage 4.75 V to 5.25 V
• Digital-Supply-Voltage 2.85 V to 3.15 V
• INL-Integral-Nonlinearity 15 ppm of FSR
• DNL-Differential-Nonlinearity +/- 1 LSB
