ADS5401IZAYR

ADS5401IZAYR Overview

Product belongs to the ADS5401 series. This product is categorized as Analog to Digital Converters Tape & Reel (TR) Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style NFBGA-196 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Supplier device package: 196-NFBGA (12x12) This product's 800M. Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is 1.7 V ~ 1.9 V, 3.15 V ~ 3.45 V. The Voltage Supply Digital for this product is 1.7 V ~ 1.9 V. Configuration S/H-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 1 units 800 MS/s Sampling Rate Analog supply voltage: 3.15 V to 3.45 V Digital Supply Voltage: 1.7 V to 1.9 V

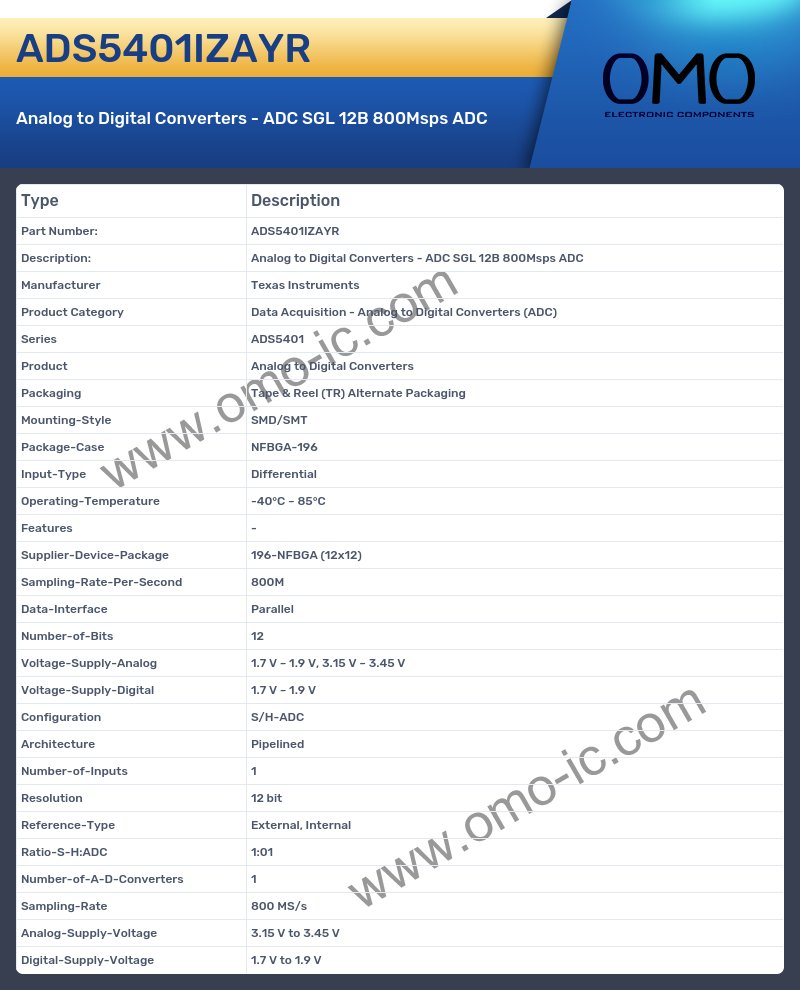

ADS5401IZAYR Image

ADS5401IZAYR Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS5401
• Product Analog to Digital Converters
• Packaging Tape & Reel (TR) Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case NFBGA-196
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Features -
• Supplier-Device-Package 196-NFBGA (12x12)
• Sampling-Rate-Per-Second 800M
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 1.7 V ~ 1.9 V, 3.15 V ~ 3.45 V
• Voltage-Supply-Digital 1.7 V ~ 1.9 V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 1
• Resolution 12 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 1
• Sampling-Rate 800 MS/s
• Analog-Supply-Voltage 3.15 V to 3.45 V
• Digital-Supply-Voltage 1.7 V to 1.9 V
