ADS774KP

ADS774KP Overview

Product belongs to the ADS774 series. This product is categorized as Analog to Digital Converters Tube is the packaging method for this product Weight of 0.145114 oz Through Hole Mounting-Style PDIP-28 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 28-PDIP This product's 125k. Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is 5V, -16.5 V ~ 5.5. The Voltage Supply Digital for this product is 5V. Configuration S/H-ADC The architecture of this product is SAR . External, Internal is the reference type. 1 units Power-off control: 120 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Parallel interface type Signal-to-Noise Ratio of 72 dB Number-of-Converters: 1 Converter 125 kS/s Sampling Rate Analog supply voltage: 5 V Digital Supply Voltage: 4.5 V to 5.5 V Integral Nonlinearity: +/- 0.5 LSB

ADS774KP Image

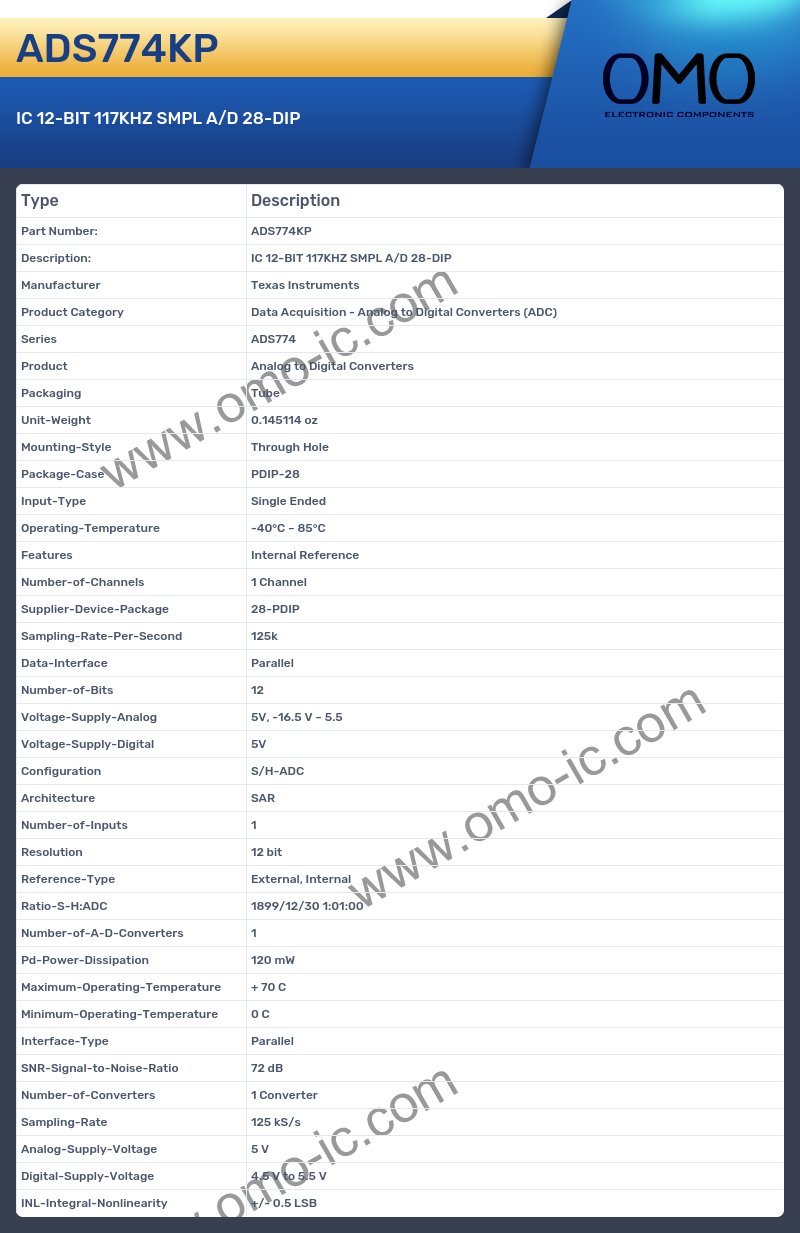

ADS774KP Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS774
• Product Analog to Digital Converters
• Packaging Tube
• Unit-Weight 0.145114 oz
• Mounting-Style Through Hole
• Package-Case PDIP-28
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features Internal Reference
• Number-of-Channels 1 Channel
• Supplier-Device-Package 28-PDIP
• Sampling-Rate-Per-Second 125k
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 5V, -16.5 V ~ 5.5
• Voltage-Supply-Digital 5V
• Configuration S/H-ADC
• Architecture SAR
• Number-of-Inputs 1
• Resolution 12 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 120 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 72 dB
• Number-of-Converters 1 Converter
• Sampling-Rate 125 kS/s
• Analog-Supply-Voltage 5 V
• Digital-Supply-Voltage 4.5 V to 5.5 V
• INL-Integral-Nonlinearity +/- 0.5 LSB
