ADS7807UBE4

ADS7807UBE4 Overview

Product belongs to the ADS7807 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.025778 oz SMD/SMT Mounting-Style SOIC-28 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 28-SOIC This product's 40k. Data-Interface: SPI, Parallel 16 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration S/H-ADC The architecture of this product is SAR . External, Internal is the reference type. 1 units Power-off control: 35 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel Serial SPI interface type Signal-to-Noise Ratio of 88 dB Number-of-Converters: 1 Converter 40 kS/s Sampling Rate Analog supply voltage: 4.75 V to 5.25 V Digital Supply Voltage: 4.75 V to 5.25 V Integral Nonlinearity: +/- 1.5 LSB Differential nonlinearity: - 1 /1.5 LSB

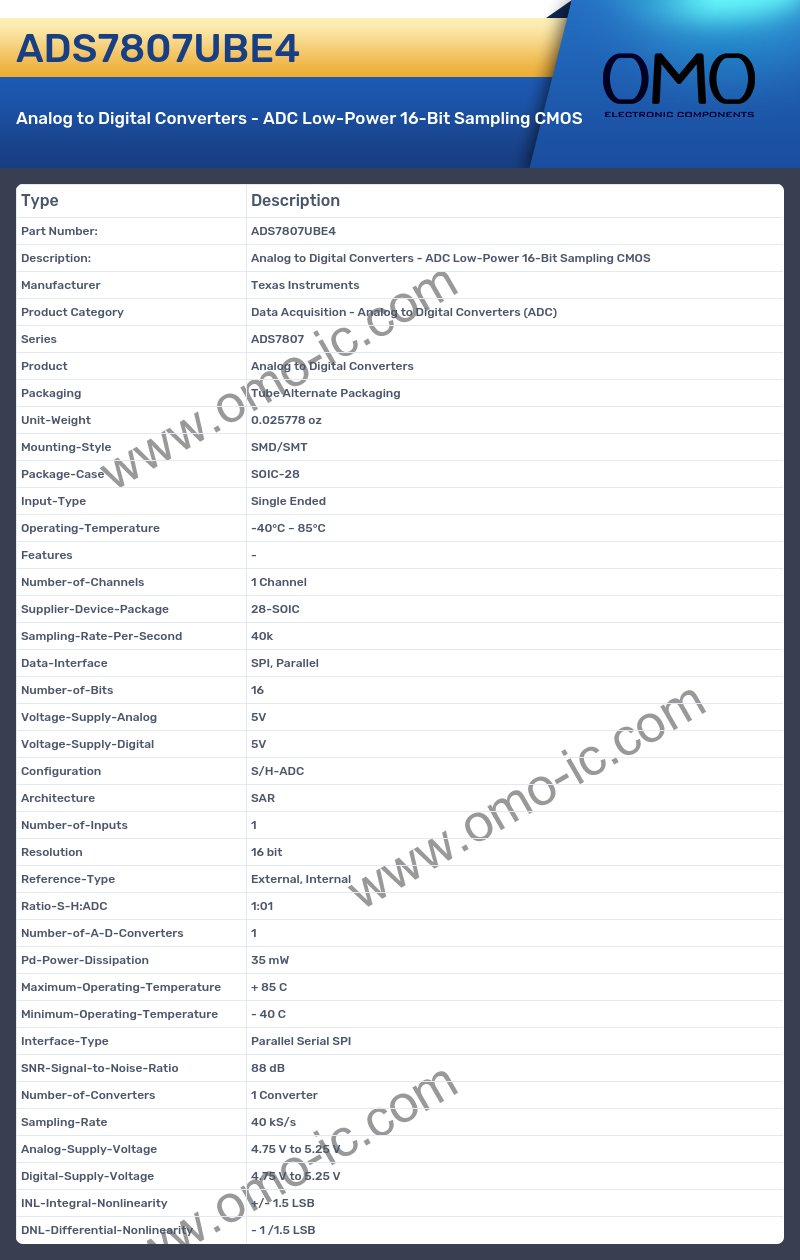

ADS7807UBE4 Image

ADS7807UBE4 Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS7807
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.025778 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-28
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 28-SOIC
• Sampling-Rate-Per-Second 40k
• Data-Interface SPI, Parallel
• Number-of-Bits 16
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration S/H-ADC
• Architecture SAR
• Number-of-Inputs 1
• Resolution 16 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 35 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel Serial SPI
• SNR-Signal-to-Noise-Ratio 88 dB
• Number-of-Converters 1 Converter
• Sampling-Rate 40 kS/s
• Analog-Supply-Voltage 4.75 V to 5.25 V
• Digital-Supply-Voltage 4.75 V to 5.25 V
• INL-Integral-Nonlinearity +/- 1.5 LSB
• DNL-Differential-Nonlinearity - 1 /1.5 LSB
