ADS7862Y/2K

ADS7862Y/2K Overview

Product belongs to the ADS7862 series. This product is categorized as Analog to Digital Converters Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.002568 oz SMD/SMT Mounting-Style TQFP-32 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 4 Channel Supplier device package: 32-TQFP (5x5) This product's 500k. Data-Interface: SPI 12 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration MUX-S/H-ADC The architecture of this product is SAR . External, Internal is the reference type. 2 units Power-off control: 40 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Signal-to-Noise Ratio of 71 dB Number-of-Converters: 2 Converter 500 kS/s Sampling Rate Analog supply voltage: 4.75 V to 5.25 V Digital Supply Voltage: 4.75 V to 5.25 V Integral Nonlinearity: +/- 2 LSB Differential nonlinearity: +/- 0.75 LSB

ADS7862Y/2K Image

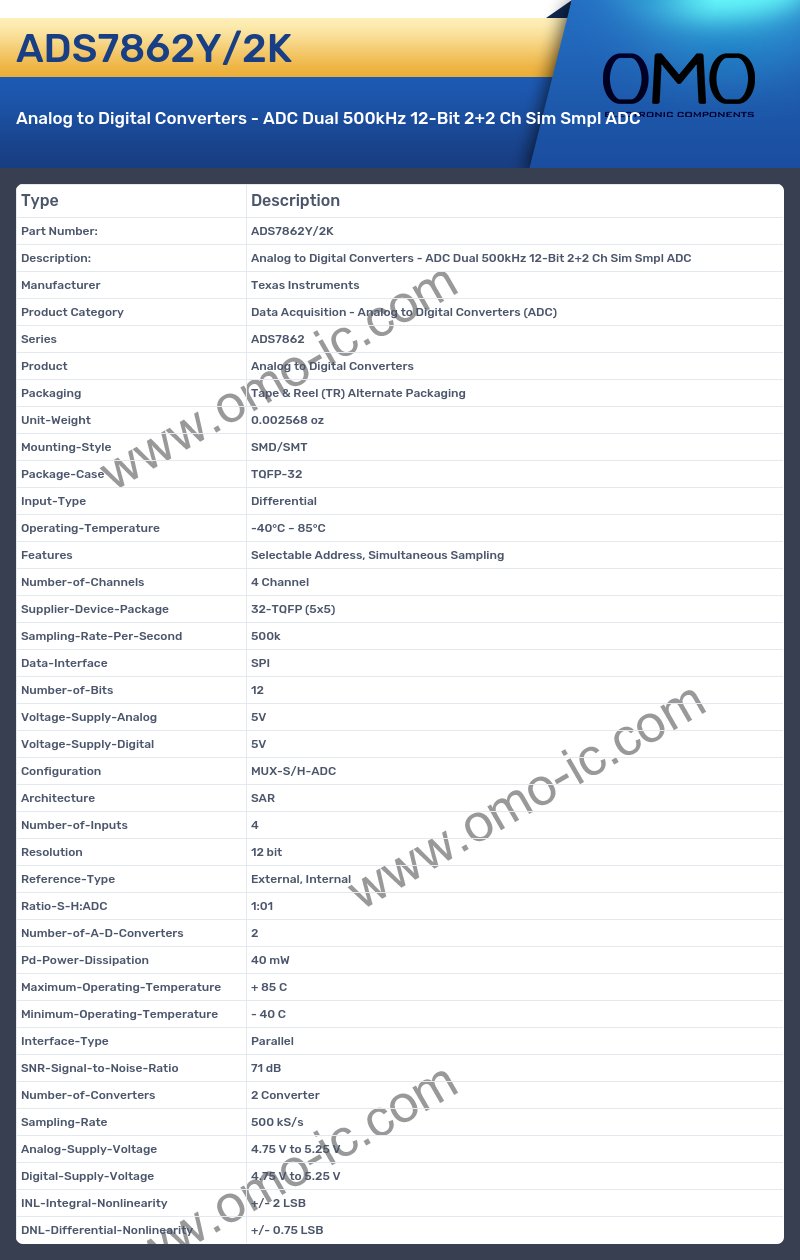

ADS7862Y/2K Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS7862
• Product Analog to Digital Converters
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.002568 oz
• Mounting-Style SMD/SMT
• Package-Case TQFP-32
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Features Selectable Address, Simultaneous Sampling
• Number-of-Channels 4 Channel
• Supplier-Device-Package 32-TQFP (5x5)
• Sampling-Rate-Per-Second 500k
• Data-Interface SPI
• Number-of-Bits 12
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration MUX-S/H-ADC
• Architecture SAR
• Number-of-Inputs 4
• Resolution 12 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 2
• Pd-Power-Dissipation 40 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 71 dB
• Number-of-Converters 2 Converter
• Sampling-Rate 500 kS/s
• Analog-Supply-Voltage 4.75 V to 5.25 V
• Digital-Supply-Voltage 4.75 V to 5.25 V
• INL-Integral-Nonlinearity +/- 2 LSB
• DNL-Differential-Nonlinearity +/- 0.75 LSB
