ADS850Y/250

ADS850Y/250 Overview

Product belongs to the ADS850 series. This product is categorized as Analog to Digital Converters Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004847 oz SMD/SMT Mounting-Style TQFP-48 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 48-TQFP (7x7) This product's 10M. Data-Interface: Parallel 14 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration S/H-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 1 units Power-off control: 275 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Signal-to-Noise Ratio of 76 dB Number-of-Converters: 1 Converter 10 MS/s Sampling Rate Analog supply voltage: 4.7 V to 5.3 V Digital Supply Voltage: 4.7 V to 5.3 V Integral Nonlinearity: +/- 5 LSB Differential nonlinearity: +/- 1 LSB

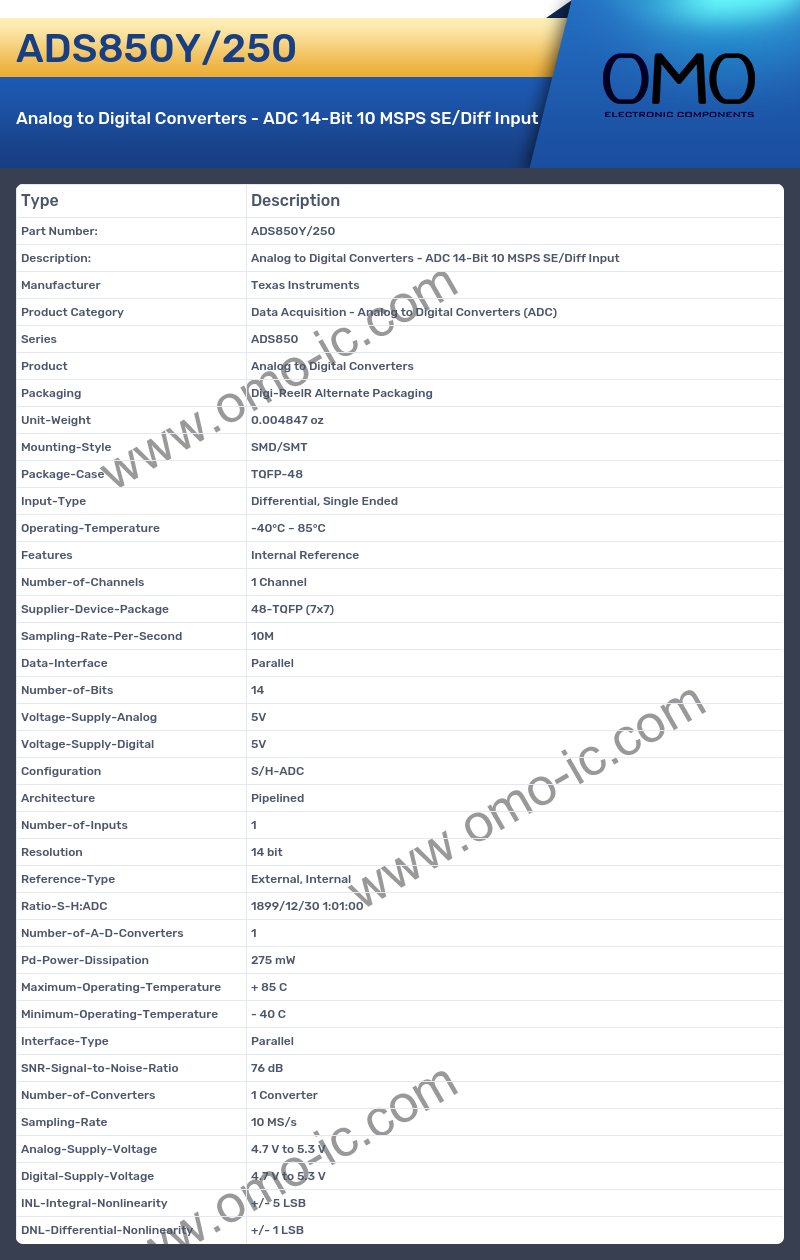

ADS850Y/250 Image

ADS850Y/250 Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS850
• Product Analog to Digital Converters
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004847 oz
• Mounting-Style SMD/SMT
• Package-Case TQFP-48
• Input-Type Differential, Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features Internal Reference
• Number-of-Channels 1 Channel
• Supplier-Device-Package 48-TQFP (7x7)
• Sampling-Rate-Per-Second 10M
• Data-Interface Parallel
• Number-of-Bits 14
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 1
• Resolution 14 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 275 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 76 dB
• Number-of-Converters 1 Converter
• Sampling-Rate 10 MS/s
• Analog-Supply-Voltage 4.7 V to 5.3 V
• Digital-Supply-Voltage 4.7 V to 5.3 V
• INL-Integral-Nonlinearity +/- 5 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
