ATSAM4S8CA-CU

ATSAM4S8CA-CU Overview

Product belongs to the SAM4S series. Tray Alternate Packaging is the packaging method for this product 100-TFBGA Operational temperature range: -40°C ~ 85°C (TA) Supplier device package: 100-TFBGA (9x9) This product has 79 I/O ports for versatile connectivity. Operating frequency: 120MHz Program memory type: FLASH EBI/EMI, I2C, IrDA, Memory Card, SPI, SSC, UART/USART, USB interface Supply Voltage: 1.62 V ~ 3.6 V 32-Bit architecture Internal oscillator type

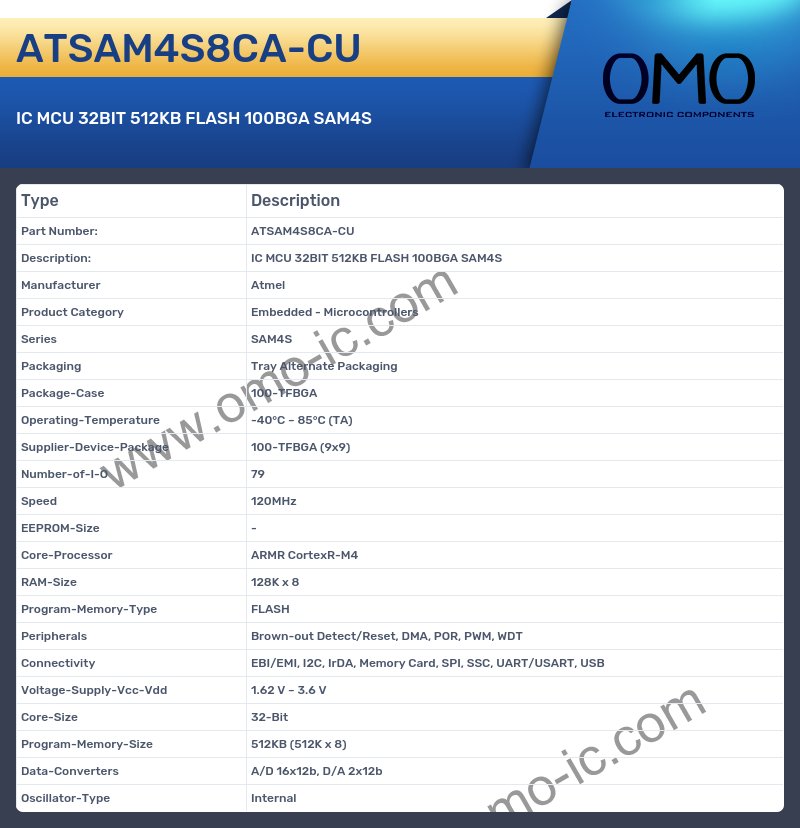

ATSAM4S8CA-CU Image

ATSAM4S8CA-CU Specifications

• Manufacturer Atmel
• Product Category Embedded - Microcontrollers
• Series SAM4S
• Packaging Tray Alternate Packaging
• Package-Case 100-TFBGA
• Operating-Temperature -40°C ~ 85°C (TA)
• Supplier-Device-Package 100-TFBGA (9x9)
• Number-of-I-O 79
• Speed 120MHz
• EEPROM-Size -
• Core-Processor ARMR CortexR-M4
• RAM-Size 128K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
• Connectivity EBI/EMI, I2C, IrDA, Memory Card, SPI, SSC, UART/USART, USB
• Voltage-Supply-Vcc-Vdd 1.62 V ~ 3.6 V
• Core-Size 32-Bit
• Program-Memory-Size 512KB (512K x 8)
• Data-Converters A/D 16x12b, D/A 2x12b
• Oscillator-Type Internal

ATSAM4S8CA-CU FAQ

• A: At what frequency does the Series?

  Q: The product Series is SAM4S.

• A: Is the cutoff frequency of the product Packaging?

  Q: Yes, the product's Packaging is indeed Tray Alternate Packaging

• A: Is the cutoff frequency of the product Package-Case?

  Q: Yes, the product's Package-Case is indeed 100-TFBGA

• A: Is the cutoff frequency of the product Operating-Temperature?

  Q: Yes, the product's Operating-Temperature is indeed -40°C ~ 85°C (TA)

• A: What is the Supplier-Device-Package of the product?

  Q: The Supplier-Device-Package of the product is 100-TFBGA (9x9).

• A: What is the Number-of-I-O of the product?

  Q: The Number-of-I-O of the product is 79.

• A: Is the cutoff frequency of the product Speed?

  Q: Yes, the product's Speed is indeed 120MHz

• A: What is the Program-Memory-Type of the product?

  Q: The Program-Memory-Type of the product is FLASH.

• A: At what frequency does the Connectivity?

  Q: The product Connectivity is EBI/EMI, I2C, IrDA, Memory Card, SPI, SSC, UART/USART, USB.

• A: At what frequency does the Voltage-Supply-Vcc-Vdd?

  Q: The product Voltage-Supply-Vcc-Vdd is 1.62 V ~ 3.6 V.

• A: At what frequency does the Core-Size?

  Q: The product Core-Size is 32-Bit.

• A: What is the Oscillator-Type of the product?

  Q: The Oscillator-Type of the product is Internal.
