BALF-2690-02D3

BALF-2690-02D3 Overview

Product belongs to the BALF-2690 series. This product is categorized as Baluns Type: Balun Filter Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Wide - 40 C to + 85 C operating temperature range for diverse applications FlipChip-4 This product's 2500 MHz range is 0Hz to 2.2GHz. Impedance value is 50 Ohms Surface Mount mounting type Frequency Bandwidth: 2.4GHz ~ 2.5GHz 2500 MHz bandwidth 50 / - Ohm Impedance with Unbalanced and Balanced configuration Limit of phase-difference of 10° 1. Maximum Insertion Loss of 1.2dB; The specified Return-Loss-Min is 15dB.

BALF-2690-02D3 Image

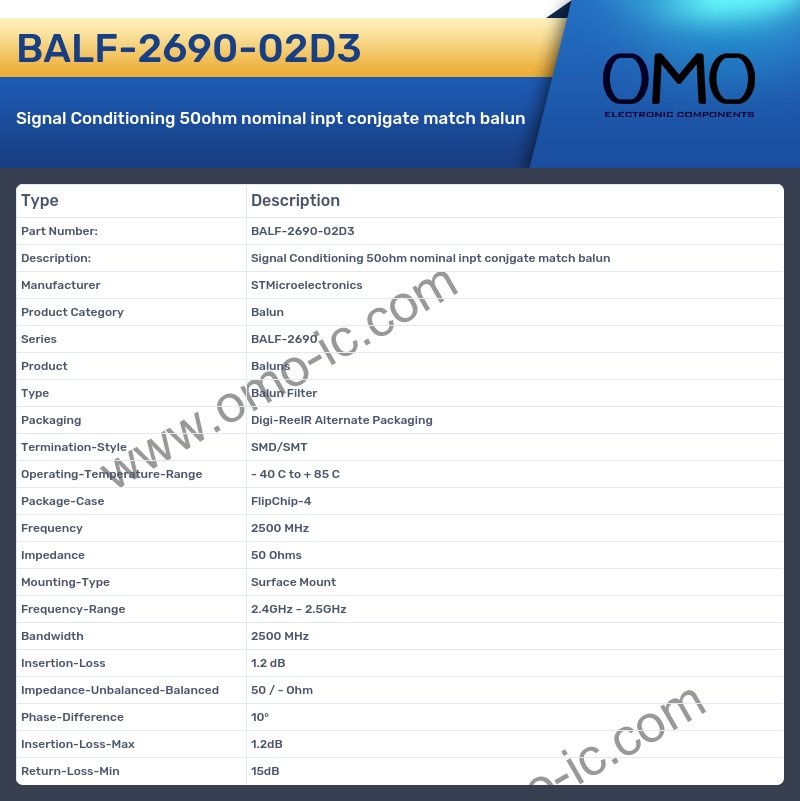

BALF-2690-02D3 Specifications

• Manufacturer STMicroelectronics
• Product Category Balun
• Series BALF-2690
• Product Baluns
• Type Balun Filter
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case FlipChip-4
• Frequency 2500 MHz
• Impedance 50 Ohms
• Mounting-Type Surface Mount
• Frequency-Range 2.4GHz ~ 2.5GHz
• Bandwidth 2500 MHz
• Insertion-Loss 1.2 dB
• Impedance-Unbalanced-Balanced 50 / - Ohm
• Phase-Difference 10°
• Insertion-Loss-Max 1.2dB
• Return-Loss-Min 15dB
