| Mfr. #: | BAT54JFILM |
|---|---|
| 제조사: | STMicroelectronics |
| 설명: | DIODE SCHOTTKY 40V 300MA SOD323 |
| 수명 주기: | 이 제조업체의 새 제품입니다. |
| 데이터 시트: | BAT54JFILM 데이터 시트 |
Product belongs to the BAT54 series. This product is categorized as Schottky Diodes Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001164 oz SMD/SMT Mounting-Style SC-76, SOD-323 Si is the technology used. Surface Mount mounting type Supplier device package: SOD-323 Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 1μA @ 30V Current-Reverse-Leakage-Vr 1. Vf Max 900mV @ 100mA is the Voltage-Forward; Maximum DC reverse voltage 40V The 300mA (DC) Current-Average-Rectified-Io; The capacitance value of this product is 10pF @ 1V, 1MHz for maximum efficiency. Operating-Temperature-Junction: -40°C ~ 150°C Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Vf-Forward-Voltage: 0.9 V at 0.1 A Ir-Reverse-Current is 1 uA at 30 V. If-Forward-Current is 0.3 A. VRRM (40 V) Reverse Voltage 1 A IFSM Forward Surge Current The 5 ns TRR-Reverse-Recovery-time
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

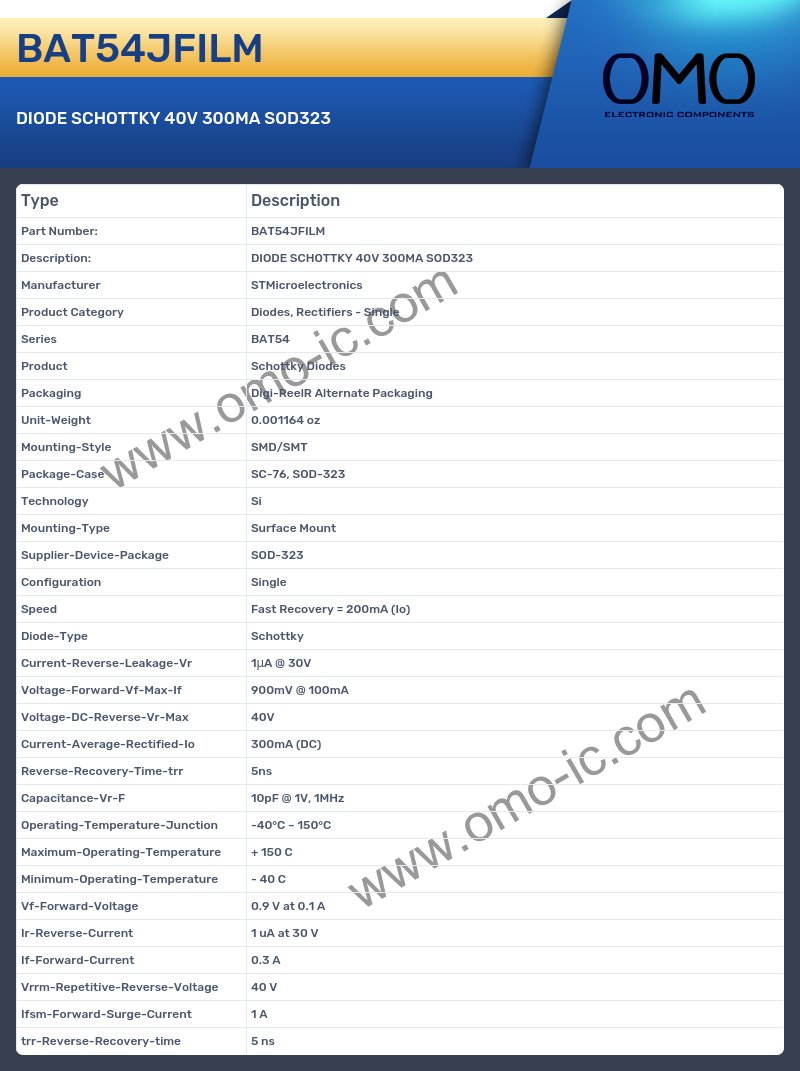

BAT54JFILM Specifications
