| Mfr. #: | BD139 |
|---|---|
| 제조사: | STMicroelectronics |
| 설명: | TRANS NPN 80V 1.5A TO225AA |
| 수명 주기: | 이 제조업체의 새 제품입니다. |
| 데이터 시트: | BD139 데이터 시트 |
Product belongs to the 500V Transistors series. Tube is the packaging method for this product Through Hole Mounting-Style TO-225AA, TO-126-3 Through Hole mounting type Supplier device package: SOT-32-3 Configuration Single Transistor type: NPN Maximum current collector Ic is 1.5A . Maximum collector-emitter breakdown voltage of 80V DC current gain minimum (hFE) of Ic/Vce at 40 @ 150mA, 2V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 500mV @ 50mA, 500mA Power-off control: 12.5 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 80 V The transistor polarity is NPN. Saturation voltage between collector and emitter is - 0.5 V + 0.5 V The 80 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 1.5 A This product is capable of handling a 1.5 A continuous collector current. Minimum hfe for DC collector-base gain is 40. 250 of 605.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

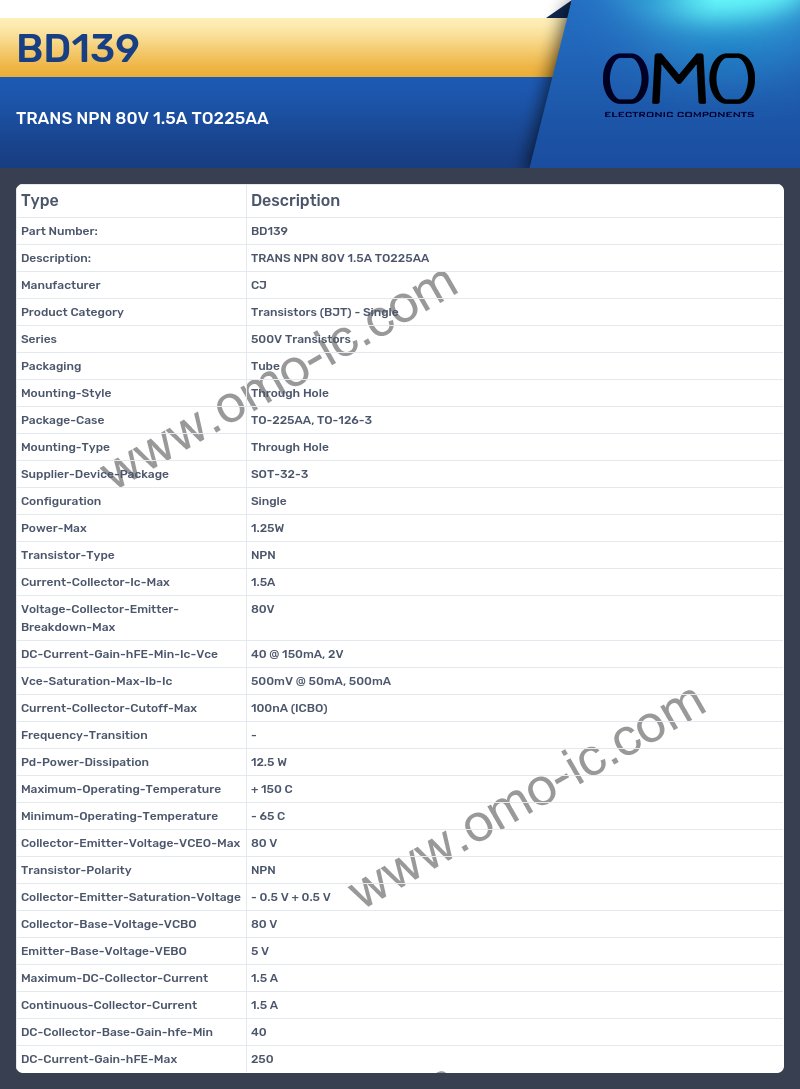

BD139 Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed 500V Transistors
A: At what frequency does the Packaging?
Q: The product Packaging is Tube.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is Through Hole.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is TO-225AA, TO-126-3.
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Through Hole
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is SOT-32-3.
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: Is the cutoff frequency of the product Transistor-Type?
Q: Yes, the product's Transistor-Type is indeed NPN
A: At what frequency does the Current-Collector-Ic-Max?
Q: The product Current-Collector-Ic-Max is 1.5A.
A: What is the Voltage-Collector-Emitter-Breakdown-Max of the product?
Q: The Voltage-Collector-Emitter-Breakdown-Max of the product is 80V.
A: What is the DC-Current-Gain-hFE-Min-Ic-Vce of the product?
Q: The DC-Current-Gain-hFE-Min-Ic-Vce of the product is 40 @ 150mA, 2V.
A: At what frequency does the Vce-Saturation-Max-Ib-Ic?
Q: The product Vce-Saturation-Max-Ib-Ic is 500mV @ 50mA, 500mA.
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 12.5 W.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 150 C
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 65 C
A: At what frequency does the Collector-Emitter-Voltage-VCEO-Max?
Q: The product Collector-Emitter-Voltage-VCEO-Max is 80 V.
A: Is the cutoff frequency of the product Transistor-Polarity?
Q: Yes, the product's Transistor-Polarity is indeed NPN
A: What is the Collector-Emitter-Saturation-Voltage of the product?
Q: The Collector-Emitter-Saturation-Voltage of the product is - 0.5 V + 0.5 V.
A: At what frequency does the Collector-Base-Voltage-VCBO?
Q: The product Collector-Base-Voltage-VCBO is 80 V.
A: At what frequency does the Emitter-Base-Voltage-VEBO?
Q: The product Emitter-Base-Voltage-VEBO is 5 V.
A: Is the cutoff frequency of the product Maximum-DC-Collector-Current?
Q: Yes, the product's Maximum-DC-Collector-Current is indeed 1.5 A
A: At what frequency does the Continuous-Collector-Current?
Q: The product Continuous-Collector-Current is 1.5 A.
A: What is the DC-Collector-Base-Gain-hfe-Min of the product?
Q: The DC-Collector-Base-Gain-hfe-Min of the product is 40.
A: At what frequency does the DC-Current-Gain-hFE-Max?
Q: The product DC-Current-Gain-hFE-Max is 250.
