CD4053BM

CD4053BM Overview

Product belongs to the CD4053B series. This product is categorized as Multiplexers/Demultiplexers Tube is the packaging method for this product Weight of 0.004998 oz SMD/SMT Mounting-Style Number of channels: 3 Channel Configuration 3 x 2 30 Mhz bandwidth Power-off control: 700 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C This product operates at a 5 V to 18 V supply voltage for reliable performance. Maximum supply current: 100 uA Maximum supply voltage of 18 V Minimum supply voltage is 5 V SOIC-16 55 ns at 5 V 35 ns at 10 V 25 ns at 15 V is 23 microseconds. Maximum dual supply voltage: +/- 9 V Single Supply Dual Supply supply type Max on-resistance of 240 Ohms Maximum off time: 420 ns Maximum on-time: 1.2 us

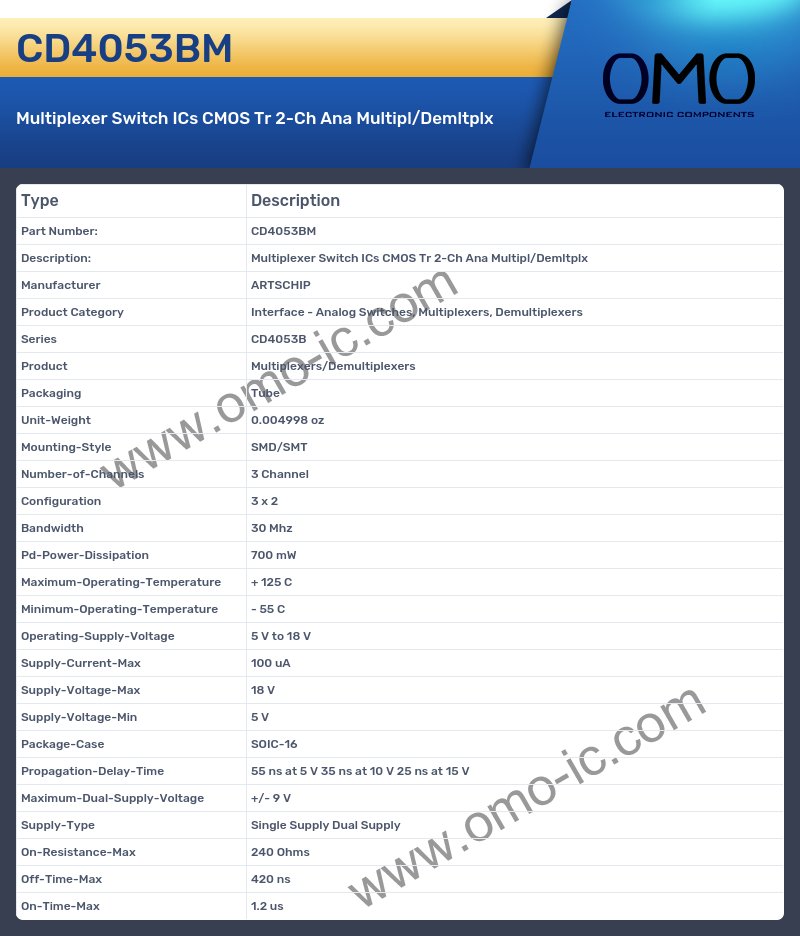

CD4053BM Image

CD4053BM Specifications

• Manufacturer ARTSCHIP
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series CD4053B
• Product Multiplexers/Demultiplexers
• Packaging Tube
• Unit-Weight 0.004998 oz
• Mounting-Style SMD/SMT
• Number-of-Channels 3 Channel
• Configuration 3 x 2
• Bandwidth 30 Mhz
• Pd-Power-Dissipation 700 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Operating-Supply-Voltage 5 V to 18 V
• Supply-Current-Max 100 uA
• Supply-Voltage-Max 18 V
• Supply-Voltage-Min 5 V
• Package-Case SOIC-16
• Propagation-Delay-Time 55 ns at 5 V 35 ns at 10 V 25 ns at 15 V
• Maximum-Dual-Supply-Voltage +/- 9 V
• Supply-Type Single Supply Dual Supply
• On-Resistance-Max 240 Ohms
• Off-Time-Max 420 ns
• On-Time-Max 1.2 us
