CD4536BPWE4

CD4536BPWE4 Overview

Product belongs to the CD4536B series. Type: Programmable Timer Tube Alternate Packaging is the packaging method for this product Weight of 0.002183 oz SMD/SMT Mounting-Style TSSOP-16 This product's 5MHz range is 0Hz to 2.2GHz. Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Output-Type: CMOS Voltage Supply Range: 3 V ~ 18 V Supplier device package: 16-TSSOP This product has a 3mA of 200μA. Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C 300 uA is 92 nA. Maximum supply voltage of 18 V Minimum supply voltage is 3 V Maximum propagation delay: 3000 ns High-Level-Output-Current of 4 mA 4 mA low-level output current

CD4536BPWE4 Image

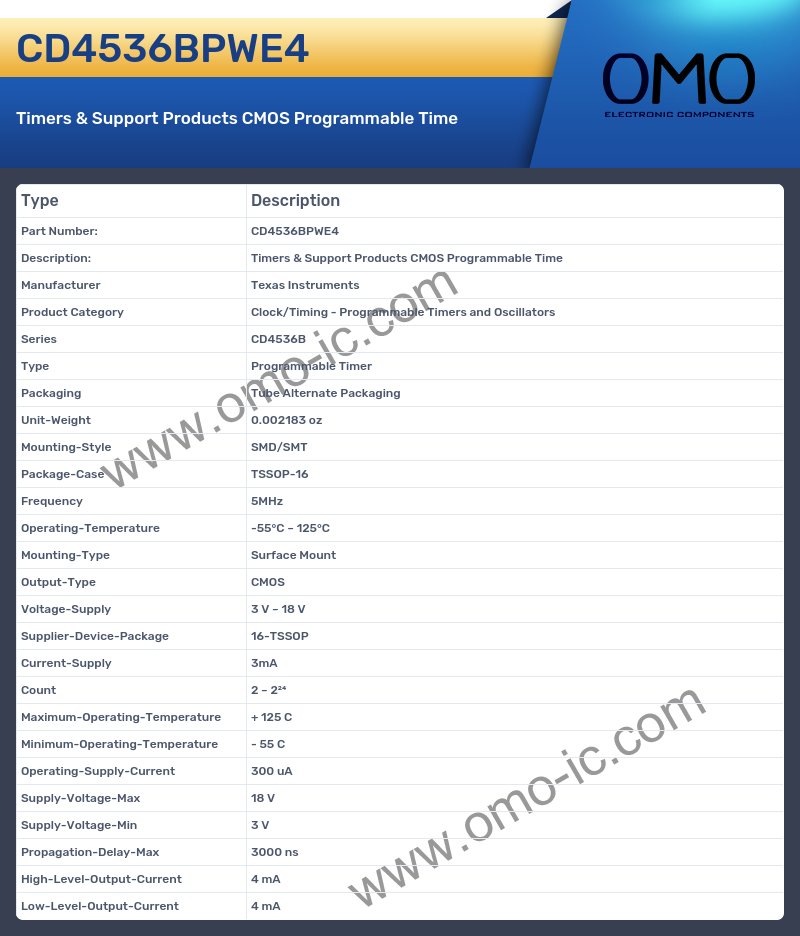

CD4536BPWE4 Specifications

• Manufacturer Texas Instruments
• Product Category Clock/Timing - Programmable Timers and Oscillators
• Series CD4536B
• Type Programmable Timer
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002183 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-16
• Frequency 5MHz
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type CMOS
• Voltage-Supply 3 V ~ 18 V
• Supplier-Device-Package 16-TSSOP
• Current-Supply 3mA
• Count 2 ~ 2²⁴
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Operating-Supply-Current 300 uA
• Supply-Voltage-Max 18 V
• Supply-Voltage-Min 3 V
• Propagation-Delay-Max 3000 ns
• High-Level-Output-Current 4 mA
• Low-Level-Output-Current 4 mA
