CMP04FS-REEL Overview

Product belongs to the CMP04 series. This product is categorized as Analog Comparators Type: General Purpose Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.011923 oz SMD/SMT Mounting-Style SOIC-14 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: CMOS, DTL, ECL, MOS, Open-Collector, TTL Number of channels: 4 Channel Supplier device package: 14-SOIC Voltage supply range: 3.3 V ~ 36 V, ±1.65 V ~ 18 V 4 element 3mA maximum quiescent current. Maximum propagation delay: - Hysteresis value of - 1.3 us response time Power-off control: Shutdown Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 2 mA is 92 nA. Maximum supply voltage of 36 V Minimum supply voltage is 3.3 V Precision comparator type Input bias current of 100 nA The 1 mV. The 100 dB. The CMRR-Common-Mode-Rejection-Ratio is 100 dB.

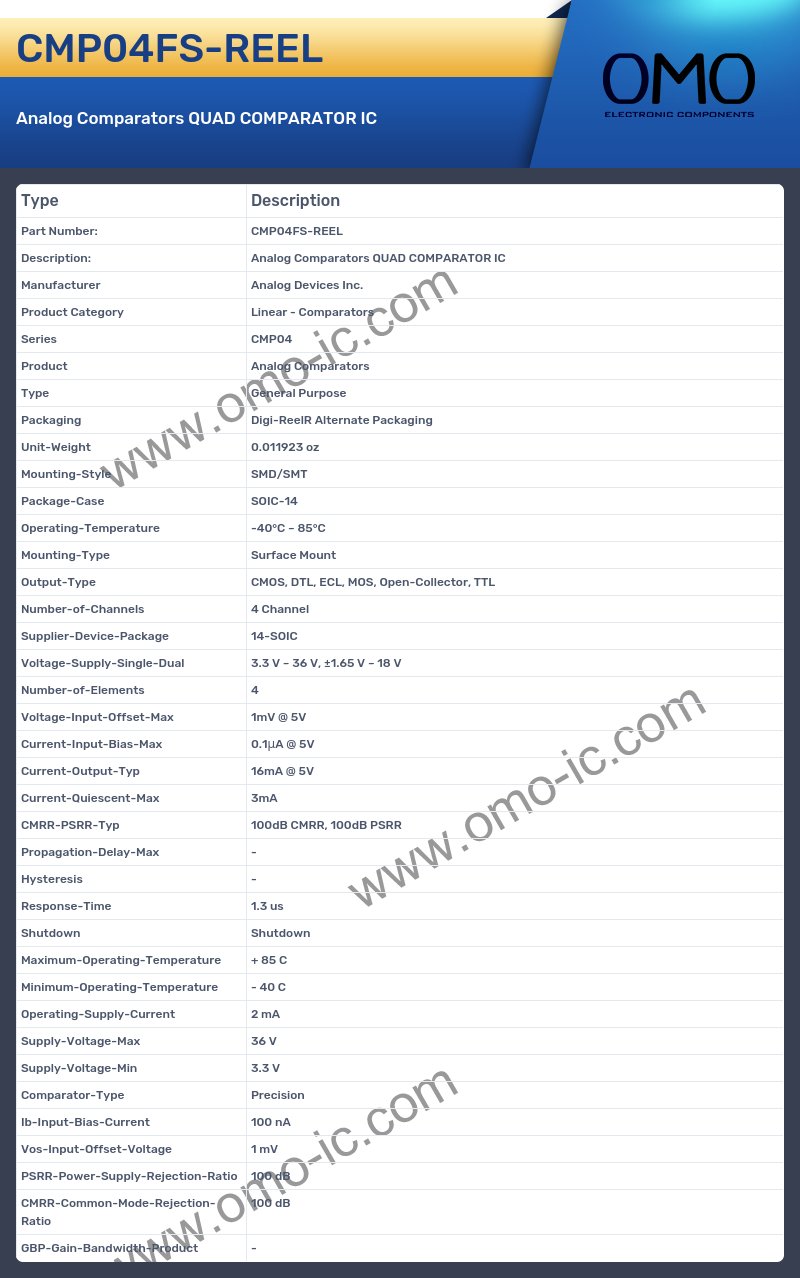

CMP04FS-REEL Image

CMP04FS-REEL Specifications

• Manufacturer Analog Devices Inc.
• Product Category Linear - Comparators
• Series CMP04
• Product Analog Comparators
• Type General Purpose
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.011923 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type CMOS, DTL, ECL, MOS, Open-Collector, TTL
• Number-of-Channels 4 Channel
• Supplier-Device-Package 14-SOIC
• Voltage-Supply-Single-Dual 3.3 V ~ 36 V, ±1.65 V ~ 18 V
• Number-of-Elements 4
• Voltage-Input-Offset-Max 1mV @ 5V
• Current-Input-Bias-Max 0.1μA @ 5V
• Current-Output-Typ 16mA @ 5V
• Current-Quiescent-Max 3mA
• CMRR-PSRR-Typ 100dB CMRR, 100dB PSRR
• Propagation-Delay-Max -
• Hysteresis -
• Response-Time 1.3 us
• Shutdown Shutdown
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 2 mA
• Supply-Voltage-Max 36 V
• Supply-Voltage-Min 3.3 V
• Comparator-Type Precision
• Ib-Input-Bias-Current 100 nA
• Vos-Input-Offset-Voltage 1 mV
• PSRR-Power-Supply-Rejection-Ratio 100 dB
• CMRR-Common-Mode-Rejection-Ratio 100 dB
• GBP-Gain-Bandwidth-Product -
