CMP402GSZ Overview

Product belongs to the CMP401/CMP402 series. This product is categorized as Analog Comparators Type: General Purpose Tube Alternate Packaging is the packaging method for this product Weight of 0.023492 oz SMD/SMT Mounting-Style SOIC-16 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: CMOS, TTL Number of channels: 4 Channel Supplier device package: 16-SOIC Voltage supply range: ±5V 4 element 1.2mA, 1mA maximum quiescent current. Maximum propagation delay: 75ns Hysteresis value of 2mV Power-off control: No Shutdown Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 1.75 mA 2.25 mA is 92 nA. Maximum supply voltage of 3.9 V Minimum supply voltage is - 5 V General Purpose comparator type Input bias current of 4 uA The 4 mV. 60 ns is 23 microseconds. The 60 dB. The CMRR-Common-Mode-Rejection-Ratio is 60 dB.

CMP402GSZ Image

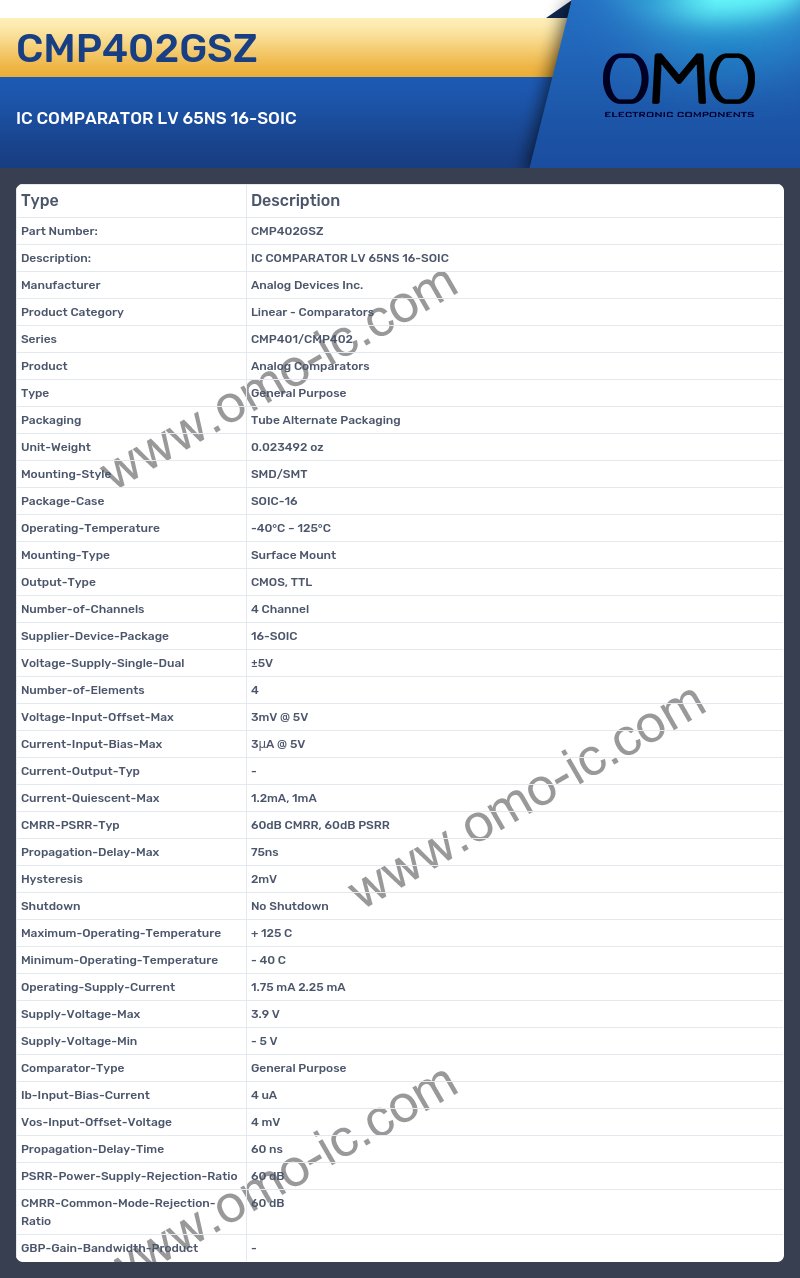

CMP402GSZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Linear - Comparators
• Series CMP401/CMP402
• Product Analog Comparators
• Type General Purpose
• Packaging Tube Alternate Packaging
• Unit-Weight 0.023492 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type CMOS, TTL
• Number-of-Channels 4 Channel
• Supplier-Device-Package 16-SOIC
• Voltage-Supply-Single-Dual ±5V
• Number-of-Elements 4
• Voltage-Input-Offset-Max 3mV @ 5V
• Current-Input-Bias-Max 3μA @ 5V
• Current-Output-Typ -
• Current-Quiescent-Max 1.2mA, 1mA
• CMRR-PSRR-Typ 60dB CMRR, 60dB PSRR
• Propagation-Delay-Max 75ns
• Hysteresis 2mV
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 1.75 mA 2.25 mA
• Supply-Voltage-Max 3.9 V
• Supply-Voltage-Min - 5 V
• Comparator-Type General Purpose
• Ib-Input-Bias-Current 4 uA
• Vos-Input-Offset-Voltage 4 mV
• Propagation-Delay-Time 60 ns
• PSRR-Power-Supply-Rejection-Ratio 60 dB
• CMRR-Common-Mode-Rejection-Ratio 60 dB
• GBP-Gain-Bandwidth-Product -
