| Mfr. #: | CSD17559Q5 |
|---|---|
| 제조사: | Texas Instruments |
| 설명: | MOSFET N-CH 30V 100A 8SON |
| 수명 주기: | 이 제조업체의 새 제품입니다. |
| 데이터 시트: | CSD17559Q5 데이터 시트 |
Product belongs to the CSD17559Q5 series. Reel is the packaging method for this product SMD/SMT Mounting-Style Trade name: NexFET. VSON-Clip-8 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 3.2 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 14 ns of 16 ns. This product has a 41 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 40 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 30 V. This product has a 1.4 V Vgs-th gate-source threshold voltage for efficient power management. The 1.5 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 32 ns This product has a 20 ns. Qg-Gate-Charge is 39 nC. This product features a 235 S of 500 S for high performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

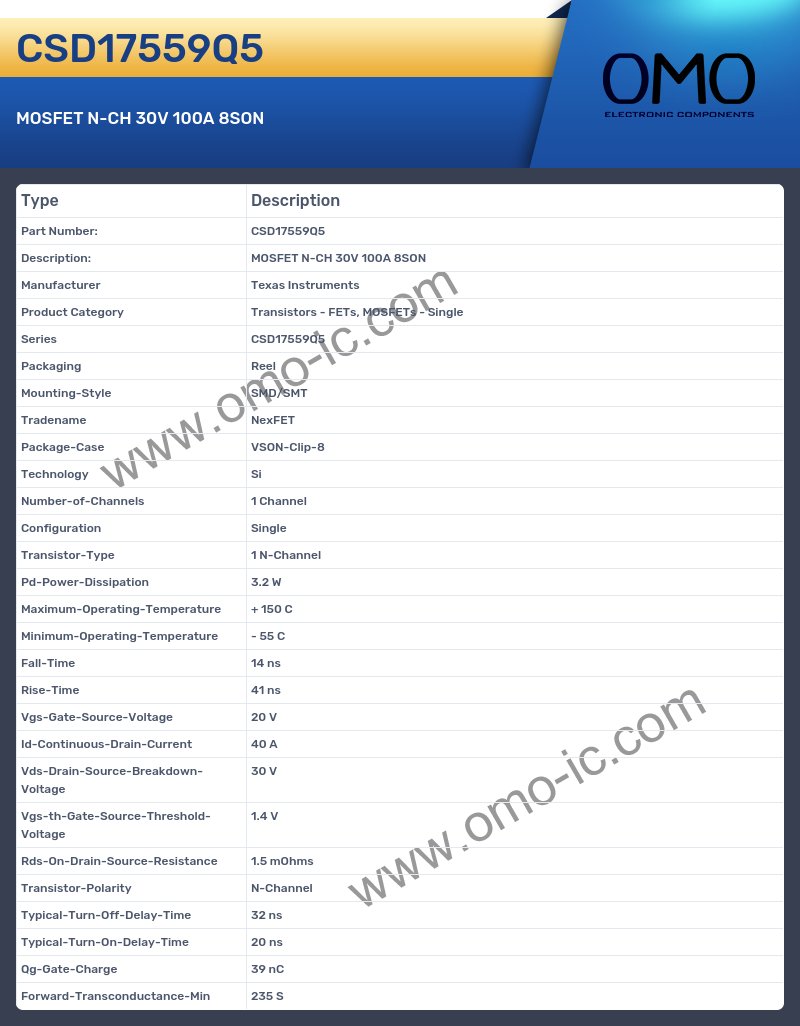

CSD17559Q5 Specifications
