DAC5675AIPHPR Overview

Product belongs to the DAC5675A series. This product is categorized as Digital to Analog Converters Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.004744 oz SMD/SMT Mounting-Style HTQFP-48 Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Number of channels: 1 Channel Supplier device package: 48-HTQFP (7x7) Data-Interface: LVDS - Parallel 14 bits The Voltage-Supply-Analog is 3.15 V ~ 3.6 V. The Voltage Supply Digital for this product is 3.15 V ~ 3.6 V. The architecture of this product is Current Source . External, Internal is the reference type. Number of D-A converters: 1 The 12μs (Typ) is an impressive 15 us. Yes Differential-Output Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type The DAC5675AEVM. Maximum supply voltage of 3.6 V Minimum supply voltage is 3.15 V Number-of-Converters: 1 Converter 400 MS/s Sampling Rate

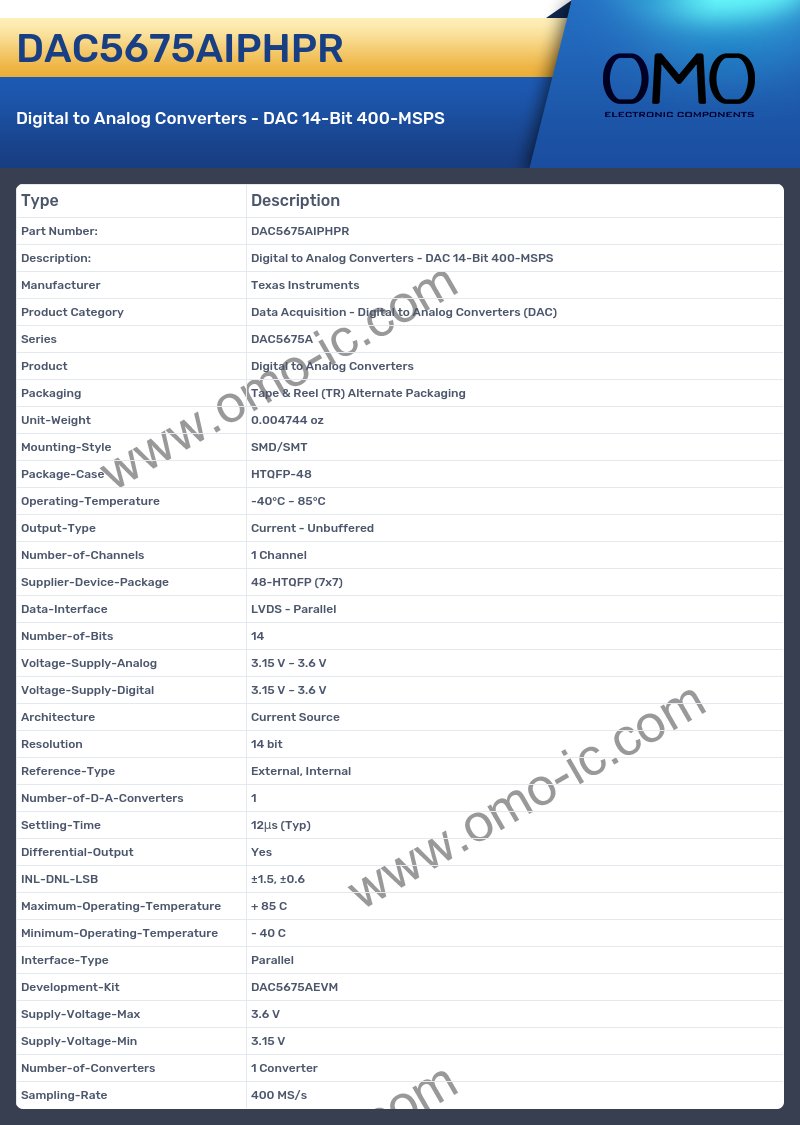

DAC5675AIPHPR Image

DAC5675AIPHPR Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC5675A
• Product Digital to Analog Converters
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.004744 oz
• Mounting-Style SMD/SMT
• Package-Case HTQFP-48
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package 48-HTQFP (7x7)
• Data-Interface LVDS - Parallel
• Number-of-Bits 14
• Voltage-Supply-Analog 3.15 V ~ 3.6 V
• Voltage-Supply-Digital 3.15 V ~ 3.6 V
• Architecture Current Source
• Resolution 14 bit
• Reference-Type External, Internal
• Number-of-D-A-Converters 1
• Settling-Time 12μs (Typ)
• Differential-Output Yes
• INL-DNL-LSB ±1.5, ±0.6
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• Development-Kit DAC5675AEVM
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 3.15 V
• Number-of-Converters 1 Converter
• Sampling-Rate 400 MS/s
