DAC8420FSZ

DAC8420FSZ Overview

Product belongs to the DAC8420 series. This product is categorized as Digital to Analog Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.023492 oz SMD/SMT Mounting-Style SOIC-16 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Number of channels: 4 Channel Supplier device package: 16-SOIC Data-Interface: SPI 12 bits The Voltage-Supply-Analog is 5 V ~ 15 V, -15V. The Voltage Supply Digital for this product is 5V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 4 The 13μs (Typ) is an impressive 15 us. No Differential-Output Power-off control: 1000 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 6 mA is 92 nA. Parallel Serial interface type Maximum supply voltage of 15 V Minimum supply voltage is 5 V Number-of-Converters: 4 Converter Reference voltage is 2.5 V .

DAC8420FSZ Image

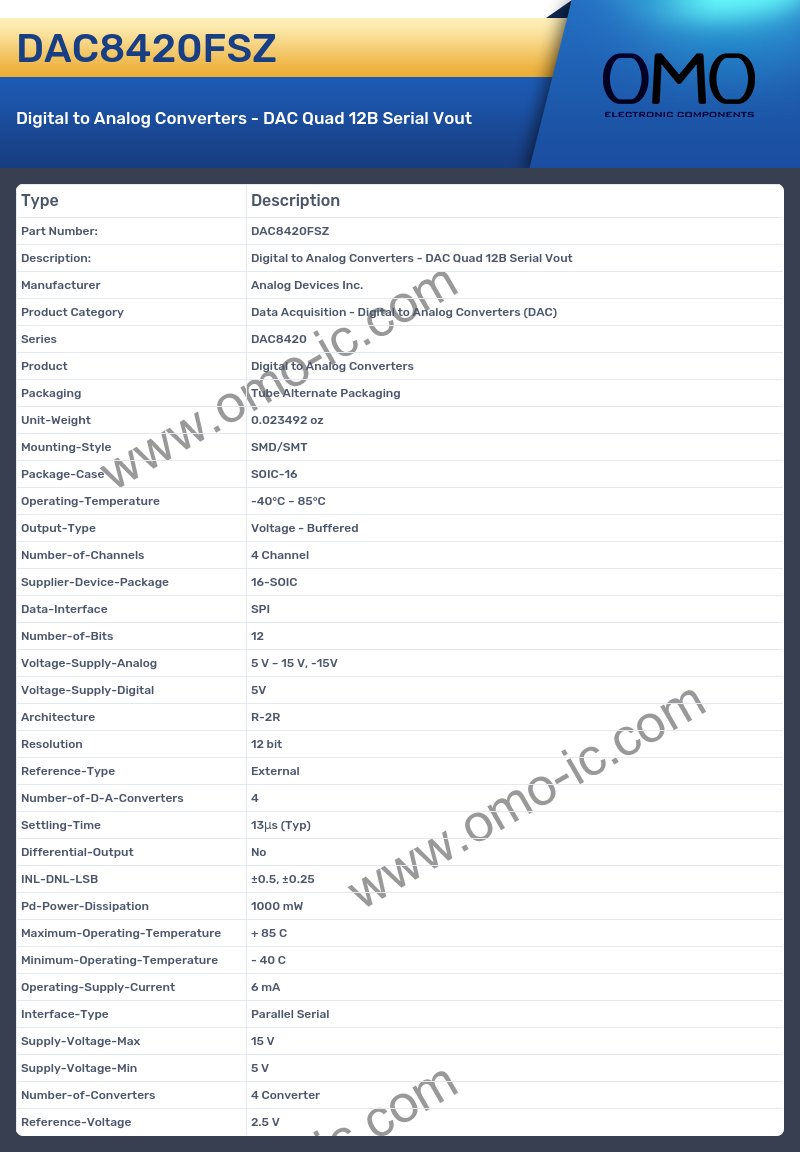

DAC8420FSZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC8420
• Product Digital to Analog Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.023492 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Number-of-Channels 4 Channel
• Supplier-Device-Package 16-SOIC
• Data-Interface SPI
• Number-of-Bits 12
• Voltage-Supply-Analog 5 V ~ 15 V, -15V
• Voltage-Supply-Digital 5V
• Architecture R-2R
• Resolution 12 bit
• Reference-Type External
• Number-of-D-A-Converters 4
• Settling-Time 13μs (Typ)
• Differential-Output No
• INL-DNL-LSB ±0.5, ±0.25
• Pd-Power-Dissipation 1000 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 6 mA
• Interface-Type Parallel Serial
• Supply-Voltage-Max 15 V
• Supply-Voltage-Min 5 V
• Number-of-Converters 4 Converter
• Reference-Voltage 2.5 V
