DRV8332DKDR

DRV8332DKDR Overview

Product belongs to the DRV8332 series. This product is categorized as Fan / Motor Controllers / Drivers Type: PWM Motor Driver Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications HSSOP-36 Power MOSFET is the technology used. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Versatile DC Motors, General Purpose applications for maximum usability Interface: PWM Voltage Supply Range: 10.8 V ~ 13.2 V Supplier device package: 36-HSSOP Number-of-Outputs: 3 Output Current-Output-Channel is 8A The Half Bridge (3). This product supports a Inductive of Inductive, Capacitive, Resistive for versatile applications. The 80 mOhm LS, 80 mOhm HS. The product's 13A is 4A. Voltage-Load range is 0 V ~ 52.5 V. This product operates at a 0 V to 52.5 V supply voltage for reliable performance. Output voltage: 3.3 V 9 mA is 92 nA. The operating frequency is 500 kHz. Output current: 8 A

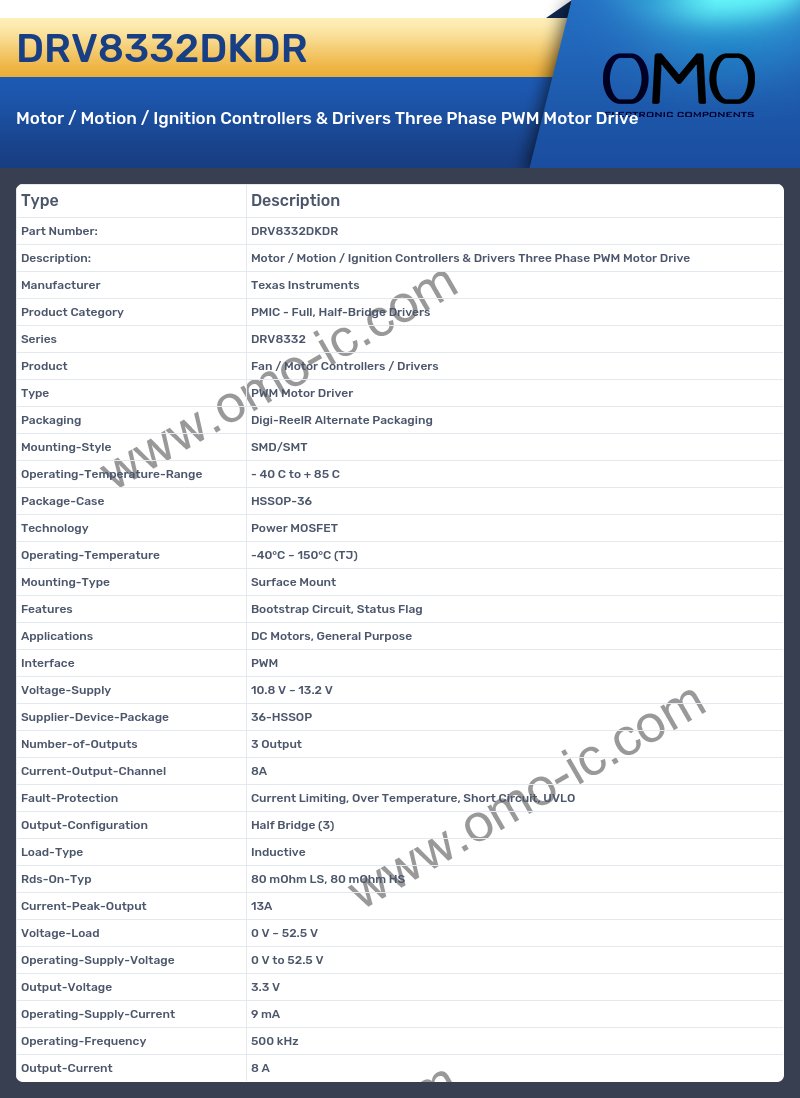

DRV8332DKDR Image

DRV8332DKDR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Full, Half-Bridge Drivers
• Series DRV8332
• Product Fan / Motor Controllers / Drivers
• Type PWM Motor Driver
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case HSSOP-36
• Technology Power MOSFET
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Features Bootstrap Circuit, Status Flag
• Applications DC Motors, General Purpose
• Interface PWM
• Voltage-Supply 10.8 V ~ 13.2 V
• Supplier-Device-Package 36-HSSOP
• Number-of-Outputs 3 Output
• Current-Output-Channel 8A
• Fault-Protection Current Limiting, Over Temperature, Short Circuit, UVLO
• Output-Configuration Half Bridge (3)
• Load-Type Inductive
• Rds-On-Typ 80 mOhm LS, 80 mOhm HS
• Current-Peak-Output 13A
• Voltage-Load 0 V ~ 52.5 V
• Operating-Supply-Voltage 0 V to 52.5 V
• Output-Voltage 3.3 V
• Operating-Supply-Current 9 mA
• Operating-Frequency 500 kHz
• Output-Current 8 A
