DS90C402MX

DS90C402MX Overview

Product belongs to the DS90C402 series. Type: Receiver Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.005044 oz SMD/SMT Mounting-Style SOIC-8 Narrow The LVDS for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: TTL Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 8-SOIC This product has a 0/2 number of drivers and receivers. Power-off control: 1.025 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 10 mA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V Number-of-Drivers: 2 Driver The product has 2 Receiver receivers. 6 ns is 23 microseconds.

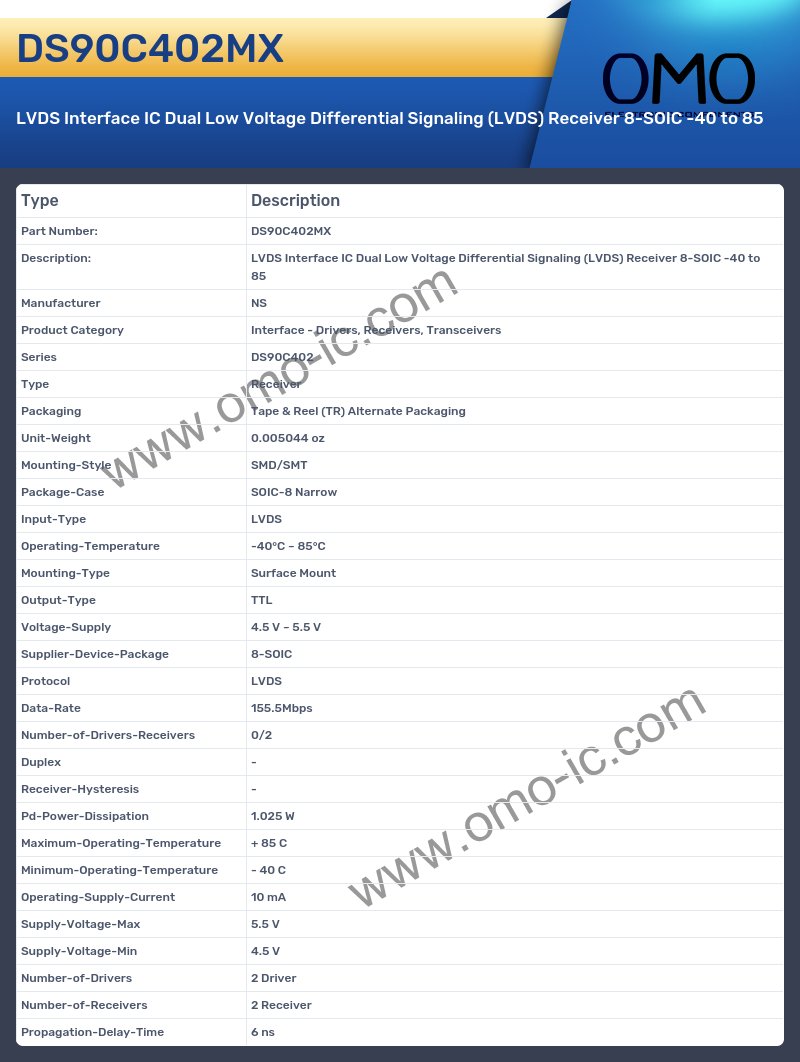

DS90C402MX Image

DS90C402MX Specifications

• Manufacturer NS
• Product Category Interface - Drivers, Receivers, Transceivers
• Series DS90C402
• Type Receiver
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.005044 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8 Narrow
• Input-Type LVDS
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type TTL
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 8-SOIC
• Protocol LVDS
• Data-Rate 155.5Mbps
• Number-of-Drivers-Receivers 0/2
• Duplex -
• Receiver-Hysteresis -
• Pd-Power-Dissipation 1.025 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 10 mA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Number-of-Drivers 2 Driver
• Number-of-Receivers 2 Receiver
• Propagation-Delay-Time 6 ns
