ESDA25SC6Y

ESDA25SC6Y Overview

Product belongs to the Automotive, AEC-Q101, ESDAY, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Trade name: Transil. SOT-23-6 Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Versatile Automotive applications for maximum usability Number of channels: 4 Channel Supplier device package: SOT-23-6 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 24V. The Voltage-Breakdown-Min is 25V. No Power-Line-Protection - Capacitance-Frequency Power-off control: 300 W Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Breakdown-Voltage: 25 V Clamping-Voltage: 30 V The Cd-Diode-Capacitance is 60 pF 24 V working voltage Polarity: Unidirectional 10 A of IPP, Peak Pulse, and Current 30 kV of Vesd-Voltage-ESD-Contact 30 kV Vesd-Voltage-ESD-Air-Gap This product operates at a 24 V supply voltage for reliable performance.

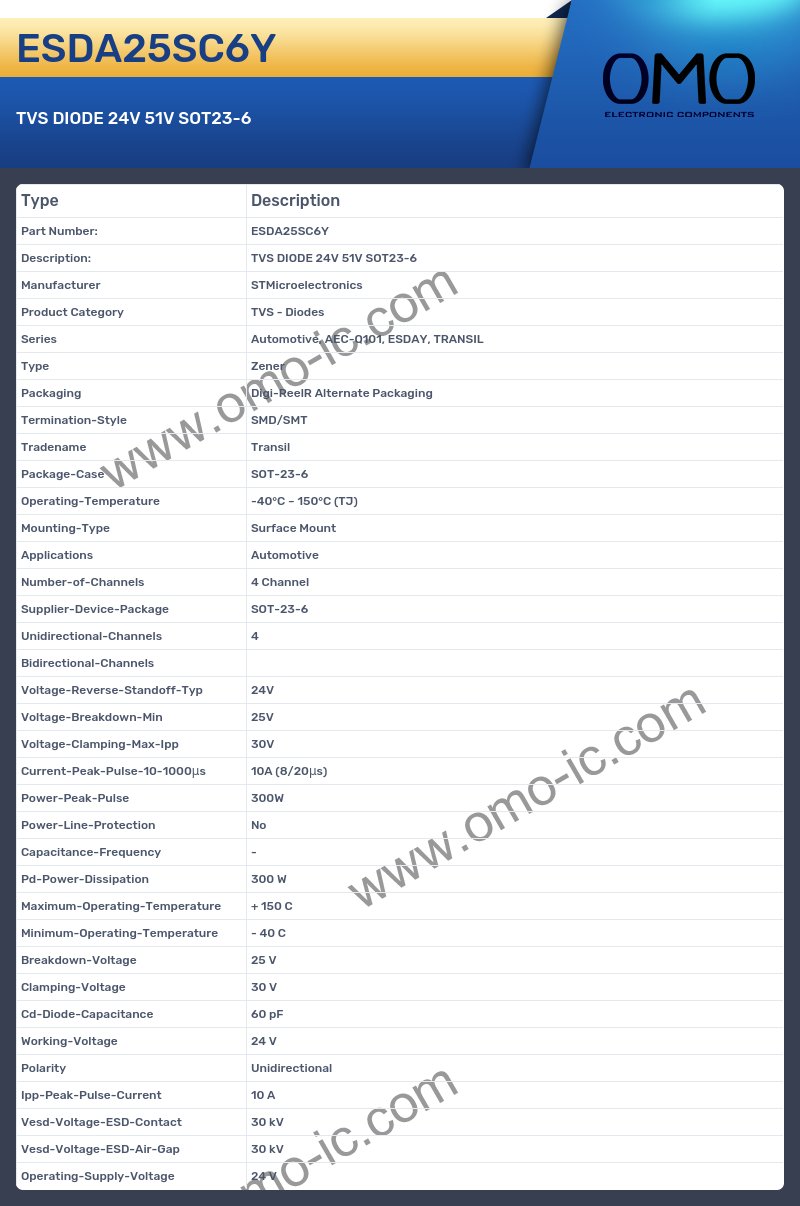

ESDA25SC6Y Image

ESDA25SC6Y Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series Automotive, AEC-Q101, ESDAY, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style SMD/SMT
• Tradename Transil
• Package-Case SOT-23-6
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Applications Automotive
• Number-of-Channels 4 Channel
• Supplier-Device-Package SOT-23-6
• Unidirectional-Channels 4
• Bidirectional-Channels
• Voltage-Reverse-Standoff-Typ 24V
• Voltage-Breakdown-Min 25V
• Voltage-Clamping-Max-Ipp 30V
• Current-Peak-Pulse-10-1000μs 10A (8/20μs)
• Power-Peak-Pulse 300W
• Power-Line-Protection No
• Capacitance-Frequency -
• Pd-Power-Dissipation 300 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Breakdown-Voltage 25 V
• Clamping-Voltage 30 V
• Cd-Diode-Capacitance 60 pF
• Working-Voltage 24 V
• Polarity Unidirectional
• Ipp-Peak-Pulse-Current 10 A
• Vesd-Voltage-ESD-Contact 30 kV
• Vesd-Voltage-ESD-Air-Gap 30 kV
• Operating-Supply-Voltage 24 V
