HCF4024M013TR

HCF4024M013TR Overview

Product belongs to the 4000 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.009143 oz SMD/SMT Mounting-Style SO-14 Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Up directionality Product function is The HCF4024B is a monolithic integrated. Voltage Supply Range: 3 V ~ 20 V Supplier device package: 14-SO 1 is 8. 7 bit bits 1 element Binary Counter logic type 7 bits per element This product's Asynchronous. - timing The 24MHZ count rate. Negative Edge trigger type Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C This product operates at a 3 V to 20 V supply voltage for reliable performance. Maximum supply voltage of 20 V Binary Counter-Type 4024 logic type Up counting sequence 360 ns 160 ns 130 ns is 23 microseconds. Number-of-Input-Lines: 1 Number-of-Output-Lines: 7

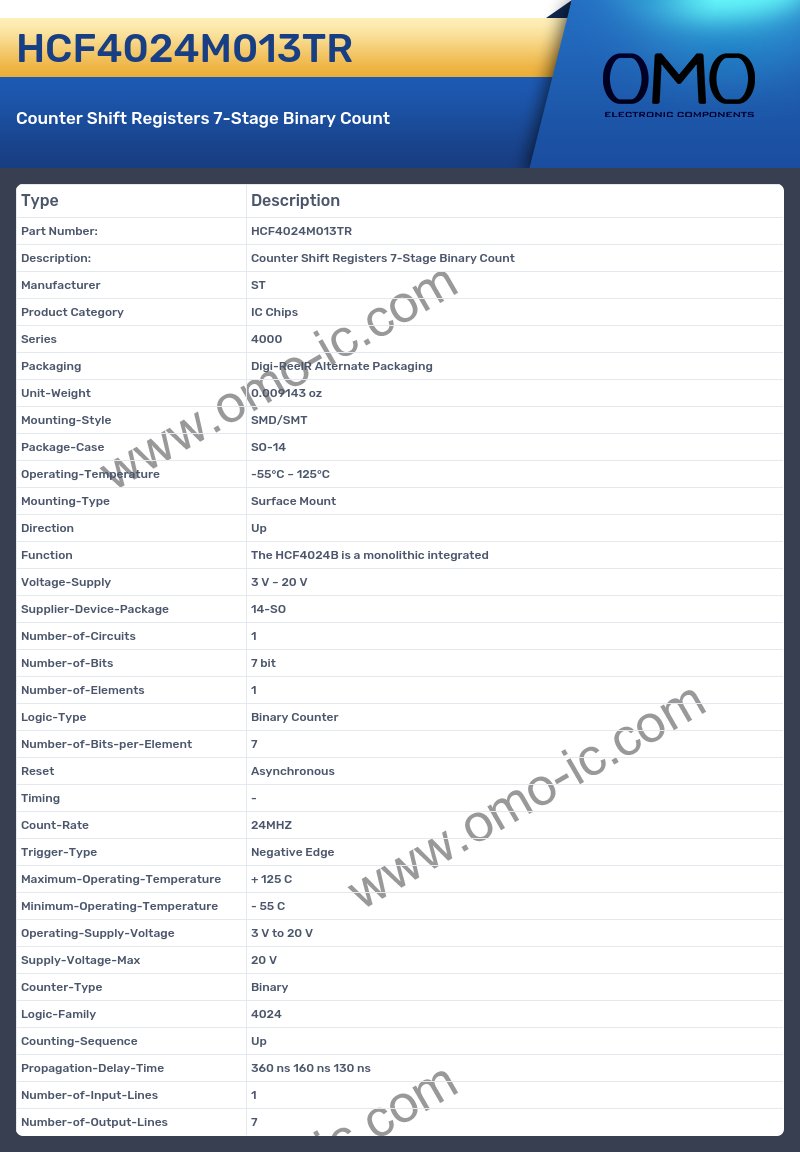

HCF4024M013TR Image

HCF4024M013TR Specifications

• Manufacturer ST
• Product Category IC Chips
• Series 4000
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.009143 oz
• Mounting-Style SMD/SMT
• Package-Case SO-14
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Direction Up
• Function The HCF4024B is a monolithic integrated
• Voltage-Supply 3 V ~ 20 V
• Supplier-Device-Package 14-SO
• Number-of-Circuits 1
• Number-of-Bits 7 bit
• Number-of-Elements 1
• Logic-Type Binary Counter
• Number-of-Bits-per-Element 7
• Reset Asynchronous
• Timing -
• Count-Rate 24MHZ
• Trigger-Type Negative Edge
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Operating-Supply-Voltage 3 V to 20 V
• Supply-Voltage-Max 20 V
• Counter-Type Binary
• Logic-Family 4024
• Counting-Sequence Up
• Propagation-Delay-Time 360 ns 160 ns 130 ns
• Number-of-Input-Lines 1
• Number-of-Output-Lines 7
