HMC194AMS8E

HMC194AMS8E Overview

Product belongs to the HMC194A series. Bulk is the packaging method for this product Weight of 0.004938 oz SMD/SMT Mounting-Style MSOP-8 Impedance value is 50 Ohm GaAs is the technology used. Operational temperature range: -40°C ~ 85°C Voltage Supply Range: 3 V ~ 7 V Supplier device package: 8-MSOP Circuit type: SPDT Topology: - feedback P1dB is 29dBm RF-Type: General Purpose Frequency upper limit of 3GHz Power-off control: 300 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Switch Configuration: SPDT The operating frequency is DC to 3 GHz. Single switch functionality The 55 dB of this product is 35 dB.

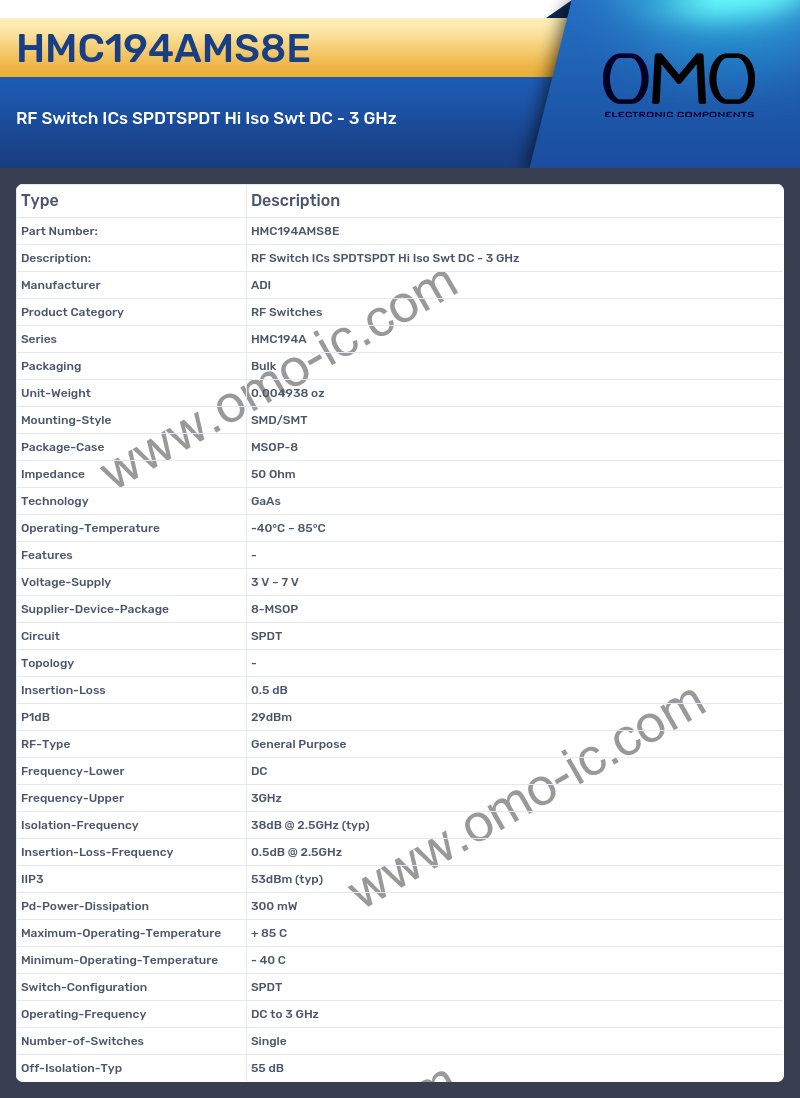

HMC194AMS8E Image

HMC194AMS8E Specifications

• Manufacturer ADI
• Product Category RF Switches
• Series HMC194A
• Packaging Bulk
• Unit-Weight 0.004938 oz
• Mounting-Style SMD/SMT
• Package-Case MSOP-8
• Impedance 50 Ohm
• Technology GaAs
• Operating-Temperature -40°C ~ 85°C
• Features -
• Voltage-Supply 3 V ~ 7 V
• Supplier-Device-Package 8-MSOP
• Circuit SPDT
• Topology -
• Insertion-Loss 0.5 dB
• P1dB 29dBm
• RF-Type General Purpose
• Frequency-Lower DC
• Frequency-Upper 3GHz
• Isolation-Frequency 38dB @ 2.5GHz (typ)
• Insertion-Loss-Frequency 0.5dB @ 2.5GHz
• IIP3 53dBm (typ)
• Pd-Power-Dissipation 300 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Switch-Configuration SPDT
• Operating-Frequency DC to 3 GHz
• Number-of-Switches Single
• Off-Isolation-Typ 55 dB
