HMC232ALP4E

HMC232ALP4E Overview

Product belongs to the HMC232AG series. Tray Alternate Packaging is the packaging method for this product Weight of 0.032741 oz SMD/SMT Mounting-Style QFN-24 Impedance value is 50 Ohm GaAs is the technology used. Operational temperature range: -40°C ~ 85°C Voltage Supply Range: - Supplier device package: 24-QFN (4x4) Circuit type: SPDT Topology: Absorptive feedback P1dB is - RF-Type: Radar Frequency upper limit of 12GHz Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Switch Configuration: SPDT The operating frequency is 12 GHz. Maximum off time: 25 ns Dual switch functionality Attribute: High-Control-Voltage, Value: - 5 V to - 7 V Maximum on-time: 25 ns The 57 dB of this product is 35 dB.

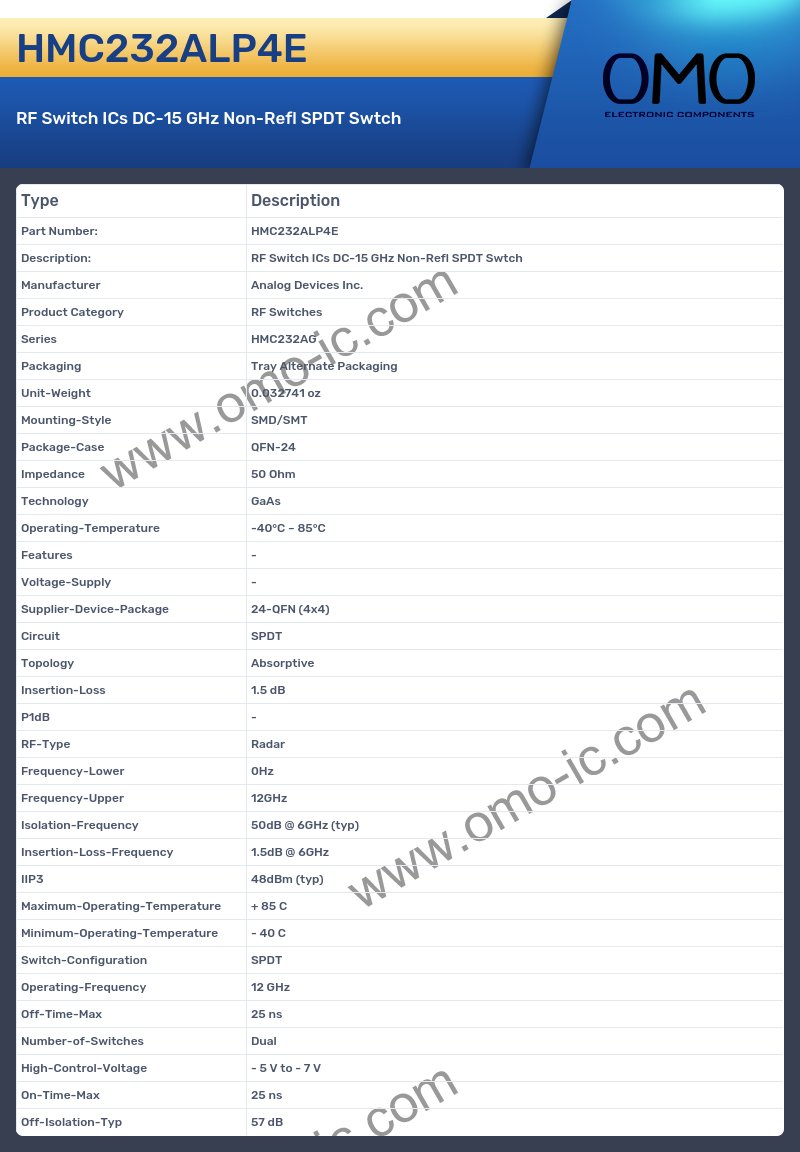

HMC232ALP4E Image

HMC232ALP4E Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Switches
• Series HMC232AG
• Packaging Tray Alternate Packaging
• Unit-Weight 0.032741 oz
• Mounting-Style SMD/SMT
• Package-Case QFN-24
• Impedance 50 Ohm
• Technology GaAs
• Operating-Temperature -40°C ~ 85°C
• Features -
• Voltage-Supply -
• Supplier-Device-Package 24-QFN (4x4)
• Circuit SPDT
• Topology Absorptive
• Insertion-Loss 1.5 dB
• P1dB -
• RF-Type Radar
• Frequency-Lower 0Hz
• Frequency-Upper 12GHz
• Isolation-Frequency 50dB @ 6GHz (typ)
• Insertion-Loss-Frequency 1.5dB @ 6GHz
• IIP3 48dBm (typ)
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Switch-Configuration SPDT
• Operating-Frequency 12 GHz
• Off-Time-Max 25 ns
• Number-of-Switches Dual
• High-Control-Voltage - 5 V to - 7 V
• On-Time-Max 25 ns
• Off-Isolation-Typ 57 dB
